SuperChassis 745TQ-920B

SuperChassis 745TQ-920B thumbnail-1
SuperChassis 745TQ-920B thumbnail-2

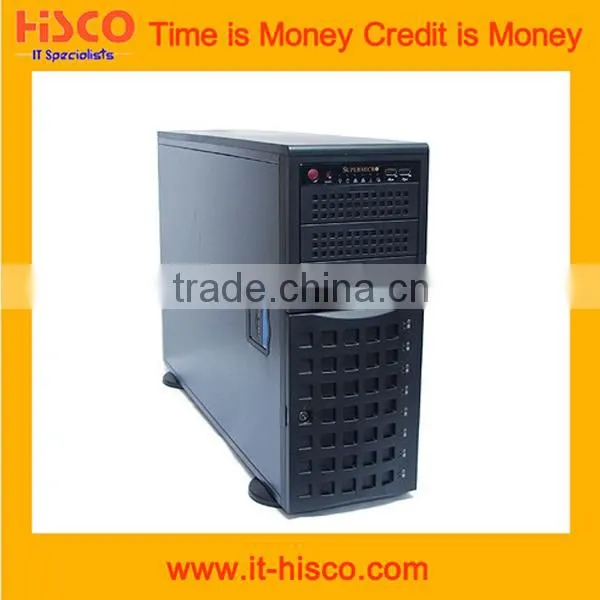

SuperChassis 745TQ-920B photo-1

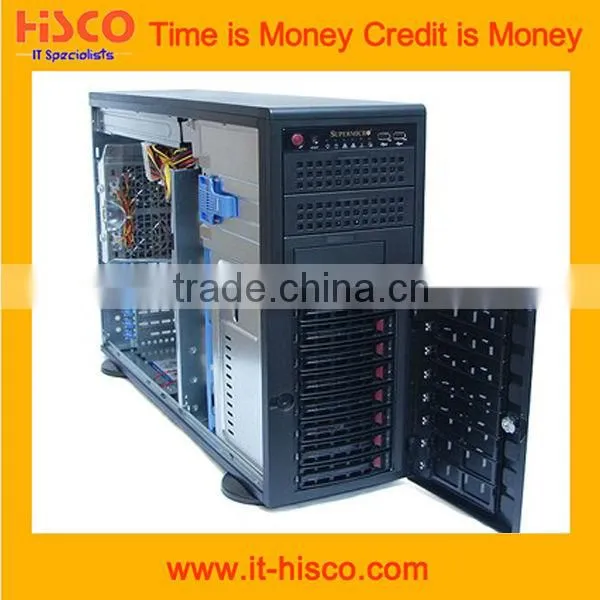

SuperChassis 745TQ-920B photo-2
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Type:
Rack
Max Processors:
4
Contact Supplier Request Quote Chat Now
Shenzhen Hisco Technology Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Type Rack
Max Processors 4
Processor Type Supports dual, single intel / amd processors
Brand Name for supermicro
Model Number 745TQ-920B
Place of Origin Beijing, China

Specifications

1. 745TQ-920B
2. Full New and Original
3. Good Price From China Genernal Agency
4. it is in stock
5. Global Coverage

SuperChassis 745TQ-920B



Specifications



Product SKUs
CSE-745TQ-920B
  • SuperChassis 745TQ-920B (Black)

Form Factor
Tower / 4U chassis support for max. motherboard size
- 13.68" x 13" (34.7cm x 33cm), ATX, E-ATX

Processor Support
Supports dual, single Intel / amd processors

Dimensions
Height
  • 17.8" (452mm)
Width
  • 7.0" (178mm)
Depth
  • 25.5" (648mm)
Gross Weight
  • 58 lbs (26.3kg)
Available Colors
  • Black

Expansion Slots
7x PCI expansion slots

Drive Bays
Hot-swap
  • 8x 3.5" Hot-swap SAS/SATA Drive Bays
  • SAS or enterprise SATA HDD only recommended
Peripheral Bay(s)
  • 2x 5.25" Peripheral Drive Bay
  • 1x 5.25" Bay that fits 3.5" bay devices

SAS / SATA Backplane
SAS / SATA Hard Drive Backplane with SES2

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • 2x Network activity LEDs
  • System Overheat LED
  • Power Fail LED
Ports
  • 2x USB Ports



System Cooling
Fans
  • 3x 5000 RPM Hot-swap PWM Cooling Fans
  • 2x 5000 RPM Hot-swap Rear Exhaust
      PWM Fans

System Monitoring
Chassis intrusion switch

Operating Environment (System)
Operating Temperature Range
  • 5°C ~ 35°C (41°F ~ 95°F)
Non-Operating Temperature Range
  • -40°C ~ 60°C (-40°F ~ 140°F)
Operating Relative Humidity Range
  • 8% ~ 90% (non-condensing)
Non-Operating Relative Humidity Range
  • 5% - 95% (non-condensing)

Power Supply with Power Distributor
920W high-efficiency (94+%) power supply with PMBus
AC Input
  • 100-240 V, 50-60 Hz, 11-4.5 Amp
DC Output
  •   4 Amp @ +5V standby
  •   75 Amp @ +12V
With Power Distributor
  • +5V: 30 Amp
  • +3.3V: 24 Amp
  • -12V: 0.6 Amp

Regulatory (Power Supply)
Power Supply Safety / EMC
  • USA - UL listed, FCC
  • Canada - CUL listed
  • China - CCC Mark
  • Europe/CE Mark
  • EN 60950/IEC 60950-Compliant
  • Germany - TUV Certified



Standard Parts List
  Part Number Qty Description
Chassis CSE-745TQ-920B 1 4U Chassis (Black)
HD Backplane CSE-SAS-743TQ 1 SAS / SATA Hard Drive Backplane with AMI MG9072 Chip [ Manual ]
Bezel Filter - 1 Front Bezel Filter
Cable(s) CBL-0044L

CBL-0084

CBL-0087

CBL-0157L

CBL-0160L

CBL-0216L 		4

1

1

1

1

3 		SATA Cable (2 Ft, Amphenol)

6" Split Converter Cable

Front Panel Ribbon Cable

8-pin to 8-pin Ribbon Cable for SGPIO (Supports Up to 4 Drives)

Power Cord

4 to 4-pin middle fan power extension cable, 200mm (PWM)
Fan(s) FAN-0074L4

FAN-0082L4 		3

2 		5000 RPM Hot-swap PWM Cooling Fan

5000 RPM Hot-swap Rear Exhaust PWM Fan
Hard Drive CSE-PT17L-B 8 Black hot-swap 3.5" HDD trays
Power Supply PWS-920P-1R


PDB-PT745-8824

CSE-PT0130L 		1


1

1 		920W high-efficiency (94%+) power supply w/ PMBus;
optional redundant power upgrade

24-pin redundant power distributor

Power supply dummy cover (131x40x76mm) for 700W/800W/900W
Air Shroud MCP-310-48001-0N 1 SC745 Intel DP X8.X7 PC Air Shroud [ Manual ]
Optional Parts List
  Part Number Qty Description
Cable(s) CBL-0153L - 6pin GPU power extension from PDB 2x big 4pin, 16cm
Cable Management Arm MCP-290-00073-0N - Supermicro Cable Management Arm for 2U, 3U and 4U chassis (Extendable Length: 70mm to 830mm)
Heatsink / Retention - - Please refer to our Thermal Components Matrix
Mounting Rails CSE-PT26L-B - 4U Chassis Rail Kit (Includes Side Handles) (B = Black)
LCD Module MCP-220-00095-0B - Black 5.25 LCD tray wo rail, support 1x 3.5 HDD
Add-on Card Dummy MCP-240-00096-0N - GPU / Add-on Card Dummy Assembly (2 Slots)-Single Pack
Rear Exhaust Fan MCP-320-00046-0N-KIT

MCP-320-00047-0N-KIT 		-

- 		Rear fan kit(8.2K RPM fan) for SC747B / 835X / 836BH

Rear fan kit(5K RPM fan) for SC745B / 835X / 836BH
Peripheral Drives DVM-LITE-DVDRW24-HBT - BLACK LITE-ON 5.25" HH 24X DVD-RW SATA DRIVE PBF
HDD Tray Converter MCP-220-00080-0B - Adaptor HDD carrier to install 2.5" HDD in 3.5" HDD tray
