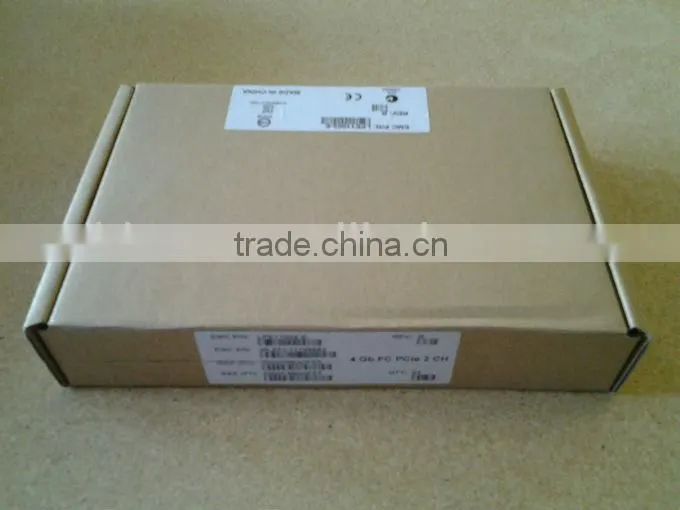

LPe11004

LPe11004 thumbnail-1
LPe11004 photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Application:
Server
Type:
Wired
Contact Supplier Request Quote Chat Now
Shenzhen Hisco Technology Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Application Server
Type Wired
Kind Internal
Transmission Rate Other, 4 Gbps
Interface Type PCI Express
Certification UL CE
Brand Name Emulex
Model Number LPe11004
Place of Origin Malaysia

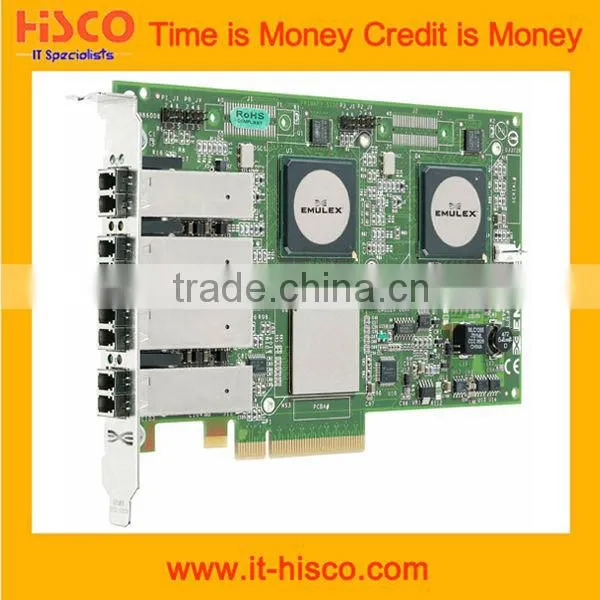

Emulex LightPulse LPe11004 4Gb Quad-Port Fiber Channel PCIe Host Bus Adapter



Product Descriptions



Ports/Channels    4 x LC Fibre Channel
Data Transfer Rate    4 Gbps Fibre Channel
Connectivity Media    Multi-mode
Host Interface    PCI Express 1.0 x4
Fibre Channel Class Supported    Class 2
   Class 3
Form Factor    Full-height Half-length Plug-in Card Hot-swappable
Height    4.4"
Width    6.6"
Green Compliant    Yes
Green Compliance Certificate/Authority    RoHS



Extended specifications




Technical Information

Ports/Channels 4 x LC Fibre Channel
Host Interface PCI Express 1.0 x4
Fibre Channel Class Supported Class 2
Class 3



Media & Performance
Connectivity Media    Multi-mode
Data Transfer Rate    4 Gbps Fibre Channel
Distance Supported    229.66 ft 62.5/125 µm Multi-mode Fiber
   492.13 ft 50/125 µm Multi-mode Fiber



Management & Protocols

Protocols FC-AL
FC-FLA
FC-FCP
FC-FS



Physical Characteristics

Height    4.4"
Form Factor    Full-height Half-length Plug-in Card Hot-swappable
Width    6.6"



Miscellaneous

Additional Information
  • PHP Hot-Pluggable
  • Universal Boot Capability
Certifications & Standards
  • Class 1 Laser Product per DHHS 21CFR (J)
  • EN60825-1
  • UL 60950-1
  • CSA22.2, No. 60950-1-03
  • EN60950-1
  • FCC Rules, Part 15, Class A
  • ICES-003, Class A
  • EMC Directive 2004/108/EC (CE Mark)
  • EN55022, Class A
  • EN55024
  • Australian EMC Framework (C-Tick Mark)
  • AS/NZS CISPR22, Class A
  • VCCI (Japan), Class A
  • MIC (Korea), Class A
  • BSMI (Taiwan), Class A
Green Compliant    Yes
Green Compliance Certificate/Authority    RoHS



Standards

  • ANSI Fibre Channel: FC-PH-3, FC-PI-2, FC-FS, FC-AL-2, FC-GS-4, FC-FLA, FC-SP, FC-PLDA, FC-TAPE, FCP-2, and RFC 2625 (IP over FC)
  • PCI Express base spec 1.0a
  • PCI Express card electromechanical spec 1.0a
  • Fibre Channel class 2 and 3
  • PHP hot plug-hot swap
Architecture
  • Quad-channel
  • 4Gb/s, 2Gb/s or 1Gb/s FC Link speeds automatically detected
  • Integrated data buffer and code space memory
Comprehensive OS Support
  • Widws, Linux, NetWare, Solaris, VMware
  • Additional support is available from OEMs and partners
Hardware Environment
  • SPARC,® x86, x64 and Intel® Itanium® 64-bit processor family
Optical
  • Data ratesOpticsCable
    • 1.0625, 2.125 and 4.25Gb/s (auto-detected)
    • Short wave lasers with LC type connector
    • 50/125μm, up to 150 meters at 4Gb/s
    • 62.5/125μm, up to 70 meters at 4Gb/s
Physical Dimensions
  • PCI full height, half-length form factor
  • 110.92mm x 167.64mm (4.367" x 6.600")
  • Standard bracket
Power & Environmental Requirements
  • Volts: +3.3 and +12
  • Operating temperature 0°C to 55°C (32° to 131°F)
  • Airflow required: 150lf/m
  • Storage temperature -40° to 70°C (-40° to 158°F)
  • Relative humidity - 5% to 95% non-condensing
Agency Approvals
  • Class 1 Laser Product per DHHS 21CFR (J) and EN60825-1
  • UL recognized to UL 60950-1
  • CUR recognized to CSA22.2, No. 60950-1-03
  • Baurt-certified to EN60950-1
  • FCC Rules, Part 15, Class A
  • ICES-003, Class A
  • EMC Directive 2004/108/EC (CE Mark)
    • EN55022, Class A
    • EN55024
  • Australian EMC Framework (C-Tick Mark)VCCI (Japan), Class A
    • AS/NZS CISPR22, Class A
  • MIC (Korea), Class A
  • BSMI (Taiwan), Class A
  • EU RoHS Compliant (Directive 2002/95/EC)
  • China RoHS Compliant
Ordering Information
  • LPe11004-M4
    • Quad-channel, embedded multi-mode optic interface
Additional Features
  • Performance FeaturesData Protection FeaturesDeployment and Management Features
    • Frame-level Multiplexing and out-of-order frame reassembly increases link efficiency and maximizes HBA performance.
    • End-to-end data protection with hardware parity, CRC, ECC and other advanced error checking and correcting algorithms ensure data is safe from corruption.
    • Universal Boot capability allows the appropriate boot environment to be automatically selected for any given hardware.
    • Boot from SAN capability reduces system management costs and increases uptime.
    • Detailed real-time event logging and tracing enables quick diagnosis of SAN problems.
    • Beaconing feature flashes the HBA LEDs, simplifying their identification within server racks.
Software Features
  • Emulex's automated installation facilities and extensive management capabilities speed HBA deployment and device management, while reducing administration costs and protecting IT investment.
  • Emulex LightPulse HBA management capabilities enable secure, centralized discovery, monitoring, reporting, and administration of Emulex HBAs on local and remote hosts. Powerful automation capabilities facilitate remote driver parameter, firmware and boot code upgrades. Advanced diagnostic features such as HBA beaconing and HBA statistics help to optimize management and network performance while the environmental monitoring feature helps to maintain optimum host to fabric connections. In addition to the GUI interface, management functions can also be performed via a scriptable Command Line Interface (CLI) as well as a web browser. With in-band and out-of-band management capabilities, Emulex provides data center administrators with the greatest level of management flexibility.
  • Automated installation and configuration of driver and management tools simplifies deployment of multiple HBAs for Windows environments. A single installation of drivers and management utilities eliminates multiple reboots and ensures that each component is installed correctly and the HBA is ready to use.
  • Emulex's management instrumentation complies to Open Management Standards, such as SMI-S and common HBA API support, which enables seamless upward integration into enterprise storage and server management solutions.
