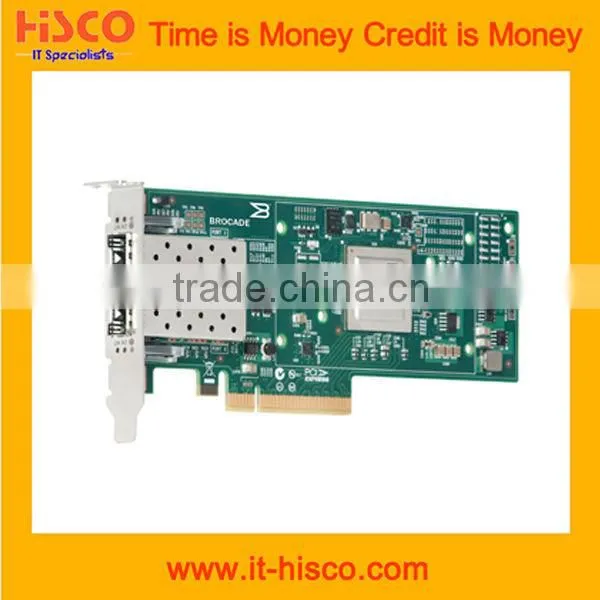

Brocade 1020 10Gb Fibre Channel PCIe 2-Port Host Bus Adapter

Brocade 1020 10Gb Fibre Channel PCIe 2-Port Host Bus Adapter thumbnail-1
Brocade 1020 10Gb Fibre Channel PCIe 2-Port Host Bus Adapter photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Application:
Server
Type:
Wired
Contact Supplier Request Quote Chat Now
Shenzhen Hisco Technology Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or Hong kong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Application Server
Type Wired
Kind Internal
Transmission Rate Other, 10 Gbps
Interface Type PCI Express
Certification UL, CE
Brand Name Brocade
Model Number Brocade 415
Place of Origin China

Specifications

1.Brocade 415
2.Full New and Original
3.Good Price from China General Agency
4.It is in Stock
5.Global Coverage

Brocade 1020 10Gb Fibre Channel PCIe 2-Port Host Bus Adapter



Product Descriptions



Models
Brocade 1020 Dual-port, 10 Gbps CNA
Host Specifications
Server platform Intel (IA32, IEM64T), AMD (x86, 64), and Oracle/Sun (x86, SPARC)
Server chipset Intel, nVidia, ServerWorks/Broadcom, AMD/ATI, and SPARC
Bus interface PCI Express Gen 2.0
Compatible (x8) with MSI-X and INTx
FCoE Specifications
Protocols FC-SP, FC-LS, FC-GS, FC-FS2, FC-FDMI, FC-CT, FCP, FCP-2, FCP-3, FC-BB-5
Performance Up to 500 K IOPS per port (1 M IOPS per dual-port adapter)
  • 330,000 IOPS per port with 4 KB block size and 60% read/40% write operations (typical e-mail)
  • 205,000 IOPS per port with 8 KB block size and 60% read/40% write operations (typical database)
Logins Support for 2048 logins and 4096 exchanges
Class of service Class 3, Class 2 control frames supported
Ethernet Specifications
DCB support Priority-based Flow Control (PFC: 802.1Qbb)
Enhanced Transmission Selection (ETS: 802.1Qaz)
Congestion Notification (802.1Qau)
Data Center Bridging Exchange (DCBX)
Performance 10 Gbps full-duplex line rate
Frame sizes All standard Ethernet frame sizes supported, including: 9600 byte jumbo frames and mini-jumbo frames
Ethernet acceleration IPv4/IPv6, TCP, and UDP checksum offload; IPv4 header checksum offload; TCP Segmentation Offload (TSO); Receive Side Scaling (RSS); Header Data Split (HDS); VLAN insertion/stripping and filtering
Software
Supported operating systems Widows Server 2003/2008; Widows Server 2008 R2; RHEL 4/5; SLES 9/10/11; Solaris 10 (x86 and SPARC); and VMware ESX 3.5, ESX/ESXi 4.0
Brocade DCFM support Yes (Professional, Professional Plus, Enterprise)
Management APIs SNIA HBA API v2.0, SMI-S, and FDMI-1
Physical Specifications
Transceivers 10 Gbps Ethernet LC-style pluggable (SFP+), SR (850 nm) or LR (1310 nm), hot-swappable
Active copper Twinax SFP+ direct attach cables
Form factor Low-profile MD2 form factor PCI Express Card; 16.77 cm × 6.89 cm (6.60 in. × 2.71 in.)
Bracket size Standard/full height: 1.84 cm × 12.08 cm (.73 in. × 4.76 in.)
Low profile: 1.84 cm × 8.01 cm (.73 in. × 3.15 in.)
Distance support 26 meters at 10 Gbps on 62.5 µm multimode fiber
82 meters at 10 Gbps on 50 µm (OM2) multimode fiber
300 meters at 10 Gbps on 50 µm (OM3) multimode fiber
10 kilometers at 10 Gbps on 9 µm single mode fiber
5 meters at 10 Gbps over active Twinax cable
Environment and Power Requirements
Airflow 45 Linear Feet/Minute (LFM)
Operating temperature 0º C/32º F to 50º C/122º F (dry bulb)
Non-operating temperature –43º C/–40º F to 73º C/163º F (dry bulb)
Operating humidity 5% to 93% (relative, non-condensing)
Non-operating humidity 5% to 95% (relative, non-condensing)
Power dissipation 8.5 W
Operating voltage 3.3 V
Agency Approvals
United States CSA 60950-1-03 First Ed; ANSI C63.4; cCSAus; FCC Class B
Canada UL60950-1, First Ed; ICES-003 Class B; cCSAus
Japan CISPR22 Class B and JEIDA (Harmonics); VCCI-B
European Union EN60950-1; EN55022 Class B and EN55024; TUVBauart, CE Mark
Australia, New Zealand EN55022 and CISPR22 Class B or AS/NZS; CISPR22; C-Tick
Russia IEC60950-1; 51318.22-99 and .24-99; GOST Mark
Korea KN22 and KN24; KCC Mark Class B
Taiwan CNS 14336(94); CNS 13438(95) Class A; BSMI Mark
Warranty and support
Three years advanced replacement hardware warranty with 24x7x365 telephone/e-mail support and lifetime software updates
