Brocade 415

Brocade 415 thumbnail-1
Brocade 415 photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Application:
Server
Type:
Wireless
Contact Supplier Request Quote Chat Now
Shenzhen Hisco Technology Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Application Server
Type Wireless
Kind Internal
Transmission Rate Other, 4 Gbps
Interface Type PCI Express
Certification UL, CE
Brand Name Brocade
Model Number Brocade 415
Place of Origin China

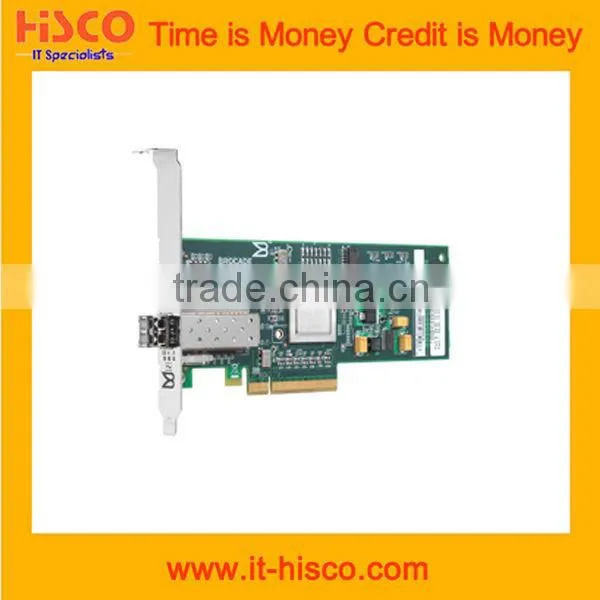

Brocade 415 4Gb Fibre Channel PCIe 1-Port Host Bus Adapter



Product Descriptions



Models
Brocade 415 Single-port, 4 Gbps HBA



Fibre Channel Specifications
Data rate Brocade 415/425: 4 Gbps (800 MB/sec); 2 Gbps (400 MB/sec); 1 Gbps (200 MB/sec) (per port)
Performance Up to 500,000 IOPS per port at 4 Gbps and 8 Gbps
  • 315,000 IOPS per port at 8 Gbps with 4 KB block size and 50% read/50% write operations (typical e-mail)
  • 176,000 IOPS per port at 8 Gbps with 8 KB block size and 50% read/50% write operations (typical database)
Protocols SCSI-FCP, FCP-2, FCP-3, FC-SP
Topology Point-to-point (N_Port), switched fabric (N_Port), including N_Port Trunking with frame-based load balancing
Class of service Class 3, Class 2 control frames supported
Boot-over-SAN DAS (point-to-point topology) and diskless Fabric-based LUN Discovery
Boot-up delay in 1-, 2-, 5-, and 10-minute intervals
LUN masking Initiator-based LUN masking for storage traffic isolation
Target rate limiting Throttles traffic based on target's (slower) speed capability
Distance support Brocade 415/425
  • 70 meters at 4 Gbps on 62.5/125 μm MMF
  • 150 meters at 4 Gbps on 50/125 μm OM2 MMF
  • 380 meters at 4 Gbps on 50/125 μm OM3 MMF
Host Specifications
Server platform Intel (IA32, IEM64T,), AMD (x86, 64), and Sun (x86, SPARC)
Server chipset Intel, nVidia, ServerWorks/Broadcom, AMd/ATI, and SPARC
Bus interface PCI Express Gen 2.0 (x8) and Gen 3.0 compatible, with MSI-X and INTx
Software
Management Brocade Network Advisor (Professional, Professional Plus, Enterprise), including multiple host driver updates
Brocade Host Connectivity Manager (HCM) Command Line Interface (CLI)
Driver- and HCM-supported operating systems (check the Brocade Server Adapters Interoperability Matrix for a complete list) Micrsft Widws, Red Hat Linux, SUSE Linux, Oracle Linux and Oracle Solaris, VMware (ESX/ESXi), Micrsft Hyper-V, Oracle VM, Citrix XenServer, Xen for Red Hat, Xen for SUSE
APIs SNIA-HBA-API 2.0 and FDMI-I
Warranty and Support
Warranty and support Three years advance replacement hardware warranty with 24×7×365 telephone/e-mail support and lifetime software updates
Physical Specifications
Transceivers Brocade 415/425: 4 Gbps Fibre Channel LC-style pluggable (SFP), MMF (850 nm), hot-swappable
Form factor PCI Express low-profile form factor; 16.77 cm × 6.89 cm (6.60 in. × 2.71 in.)
Bracket size Standard: 1.84 cm × 12.08 cm (0.73 in. × 4.76 in.)
Low profile: 1.84 cm × 8.01 cm (0.73 in. × 3.15 in.)
Environmental and Power Requirements
Airflow No airflow required
Operating temperature
Non-operating temperature 		0º C/32º F to 55º C/131º F (dry bulb)
-43º C/-40º F to 73º C/163º F (dry bulb)
Operating humidity
Non-operating humidity 		5% to 93% (relative, non-condensing)
5% to 95% (relative, non-condensing)
Power dissipation 6 W (full line rate)
Operating voltage 3.3 V
Agency Approvals
United States Bi-Nat UL/CSA 60950-1 1st Ed; ANSI C63.4; cCSAus; FCC Class B
Canada Bi-Nat UL/CSA 60950-1 1st Ed; ICES-003 Class B; cCSAus
Japan CISPR22 Class B and JEIDA (Harmonics); VCCI-B
European Union EN60950-1; EN55022 Class B and EN55024; TUVBauart, CE Mark
Australia, New Zealand EN55022 and CISPR22 Class B or AS/NZS CISPR22; C-Tick
Russia IEC60950-1; 51318.22-99 and .24-99; GOST Mark
Korea KN22 and KN24; MIC Mark Class B
Taiwan CNS 14336(94); CNS 13438(95) Class A; BSMI Mark











Brocade 415Brocade 415

Brocade 415
