Help Center2017 Special India Plastic Spindle Winding Machine Wholesale for Cotton Nylon Fiber Coil Winding Machine
Related Products
-
2017 Italy Metallic Nylon Wire Doubling for Braiding Hose Supplier Flexible CNC Winding MachineUS$ 1,999 - 4,999MOQ: 1 Piece -
2017 New Style Winding Machine Series BFHG-225A for Steel Wire, Sewing Thread Automatically Shut Down Stable Winding MachineUS$ 4,500 - 5,000MOQ: 1 Piece
-
2017 BENFA New Style Winding Machine Series BFBS-4A Four Axis Manufacture Automatically Shut Down Winding MachineUS$ 4,500 - 5,000MOQ: 1 Piece
-
2017 BENFA New Style Winding Machine Series BFBS-2A for Coil, Sewing Thread Double Axis Automatically Shut Down Winding MachineUS$ 1,599 - 2,599MOQ: 1 Piece
-
2017 BENFA New Style Winding Machine Series BFBS-1A for Steel Wire Fibre Wire Automatically Shut Down Winding MachineUS$ 1,599 - 1,999MOQ: 1 Piece
BFHG-255C winding machine
BFHG-225A winding machine
Product description:

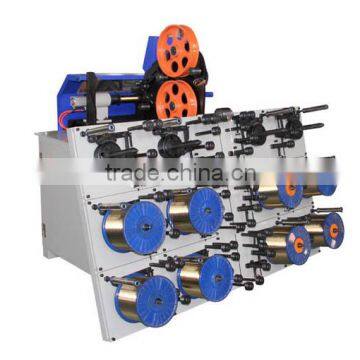

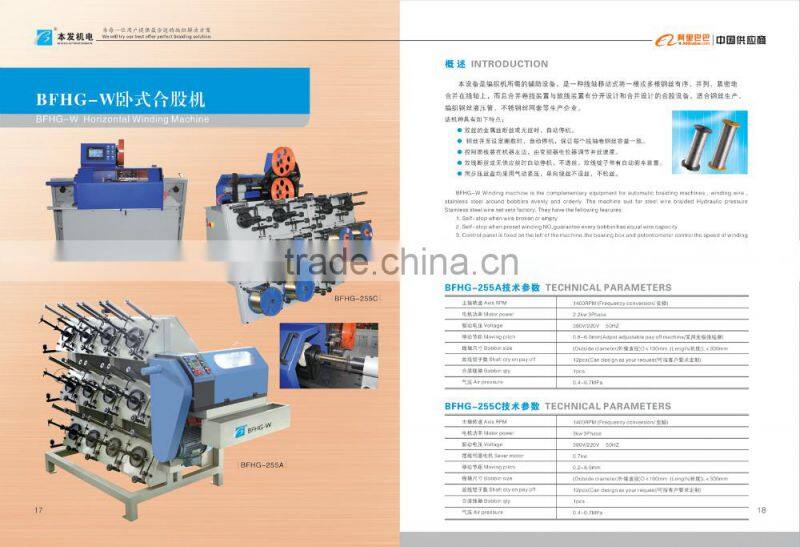

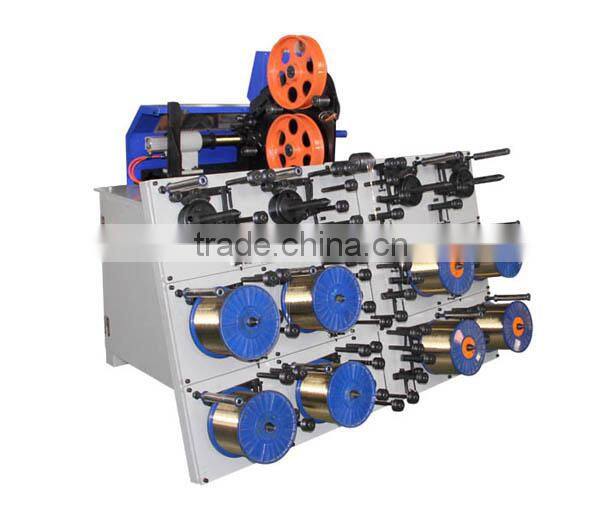

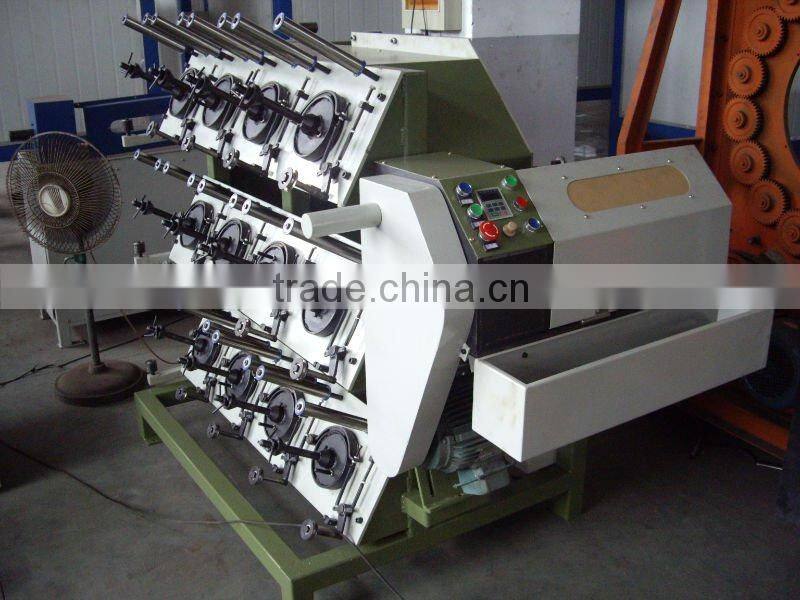

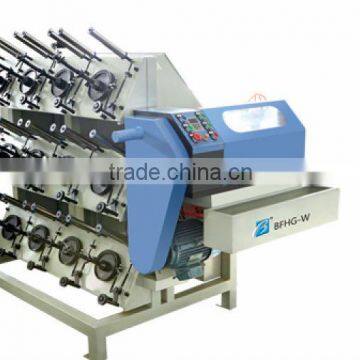

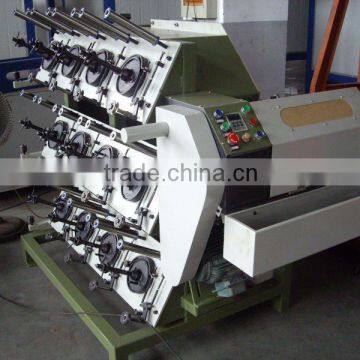

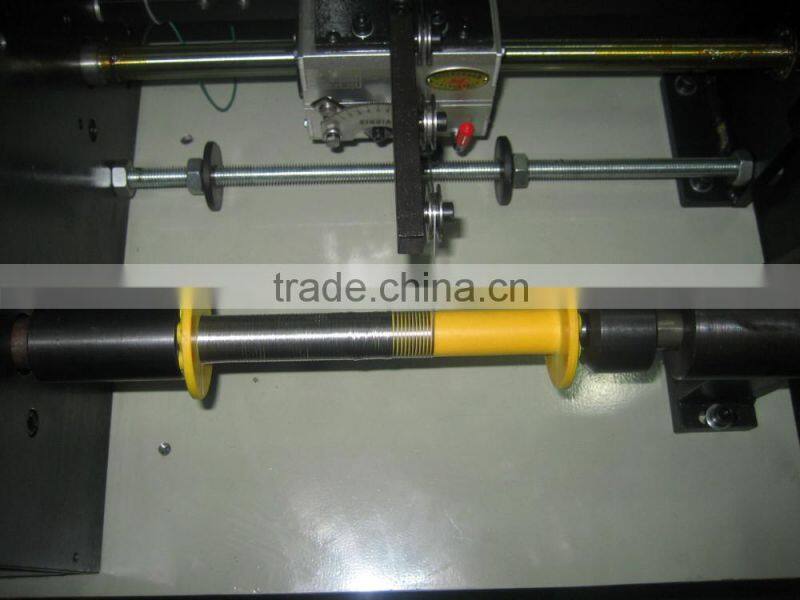

BFHG-W Winding machine is the complementary equipment for automatic braiding machines, winding wire, stainless steel around bobbins evenly and orderly. The machine suit for steel wire braided hydraulic pressure stainless steel wire net sets factory.
- Automatically shut down when wire broken or empty.
- Automatically shut down when preset winding no., guarantee every bobbin has equal wire capacity.
- Control panel is fixed on the left of the machine. The bearing box and potention meter control the speed of winding wire.
- Automatically shut down when broken or empty, the machine have self-brake device.
- Press line disc pneumatic press tight, winding wire not quit wire, not release wire.
Technical Parameters
| BFBS-1A | BFBS-2A | BFBS-4A | BFBS-4B | BFHG-255A | BFHG-255C | ||
| Axis RPM | 1400rpm(Frequency conversion) | 1400rpm(Frequency conversion) | 1400rpm(Frequency conversion) | 1400rpm(Frequency conversion) | Axis RPM | 1400rpm(Frequency conversion) | 1400rpm(Frequency conversion) |
| Motor Power | 0.55kw/2 phase 220V | 0.75kw/2 phase 220V | 1.5kw/3 phase 380V | 1.1kw/3 phase 380V | Motor Power | 2.2kw/3 phase | 3kw/3 phase |
| Voltage | 220V/50Hz | 220V/50Hz | 380V/220V/50Hz | 380V/220V/50Hz | Voltage | 380V/220V/50Hz | 380V/220V/50Hz |
| Moving Pitch | 0.05-5.5mm(Adopt adjustable pay off machine) | Moving Pitch | 0.8-6.0mm(Adopt adjustable pay off machine) | 0.2-8.0mm(Adopt adjustable pay off machine) | |||
| Bobbin Size | Bobbin Diameter≤100mm Bobbbin Length≤280mm Customization is accepted | Bobbin Size | Bobbin Diameter≤100mm Bobbbin Length≤300mm Customization is accepted | Bobbin Diameter≤100mm Bobbbin Length≤300mm Customization is accepted | |||
| Bobbin Qty | 1 | 2 | 4 | 4 | Bobbin Qty | 1pcs | 1pcs |
| Shaft No. on pay off | ≤9 | ≤18 | ≤36 | ≤36 | Shaft qty on pay off | 12pcs | 12pcs |
| Pay off bobbin size | φ≤200mm H≤280mm Customization is accepted | Air pressure | 0.4-0.7 Mpa | 0.4-0.7 Mpa | |||
| Sever motor | 0.7kw | ||||||
Xingchang benfa electromechanical establish in 1998 ,professional designing and producing braiding machine and complementary equipment technology company. Our main products including combination double decks braiding machine, horizontal high speed double decks CNC braiding machine, flexible hose braiding machine, rope braiding machine, winding machine, crimper machine and flexible hose assemble machine.
Quality First, Win-win each other. We will try our best to offering perfect hose braiding solution.
Certificate
Exhibition
Partners
1.Installation Services
Installation Services are available with all new machine purchases. We will provide the technical know-how for your operation smooth transition and support for installing,debugging, operation of the machine, it will indicate you how to use this machine well.
2.After Sales Service
We offer the Preventative Maintenance and After Sales Service. For we strongly feels about the importance of supporting our customers and the product solutions we provide.Consequently we offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year guarantee period.
service
24 hours on line, buyers can talk to us any time.
Your satisfaction is our eternal need! We always pursuing to do better!
Frequently Asked Questions
Q: How long have you been in this field?
A: Our enterprise was founded in 1998, and we are professional in designing and producing knitting machine in this field for 18 years.
Q: How long is the warranty-period?
A: The warranty period of machine is one year, and we provide lifetime quality guarantee.
Q:As a transnational business, how do you deal with the after-sale service of the machine?
A: Depending on the problem, we have professional engineers with professional guidance; we promise we will solve your problem as soon as possible.
Q:Can you customize the machine for the customer?
A:Yes. We can, we also provide OEM for customers; If you need customized service, please contact with us.
