G801 802.11n 300Mbps and 1 fxs port voip iad

FOB Price

USD $39.2 - $49 / Piece

1 Piece(Min.Order)

Supply Ability 4000 Piece / Pieces per Month
Port shenzhen
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Guangdong, China	Brand Name:	Flyingvoice	Model Number:	G801
Type:	VoIP Gateway

Product Description

Specifications

voip iad
IEEE802.11n 2T2R 300Mbps Wireless
1 RJ11 Port for VoIP FXS
Hardware NAT Router

1. Key features for G801

G801 802.11n 300Mbps and 1 fxs port voip iad is an ideal 802.11n 300Mbps wirelss voip router. It is the ideal choice for voip comunication and integrates internet sharing for daily application.

G801 not only provides the high quality of voice communications and wired Internet sharing capabilities but also offers Access Point (AP) function for daily wireless communication. With advanced router, G801 is able to make calls via SIP proxy voice communications, plus the IP sharing, and the QoS mechanism.

The G801 is based on SIP V2.0 and 802.11n standard and compatibility with most service providers. It features 1FXS telephone ports, 5 10M/100Mbps Ethernet ports which brings great convenience when deploying VoIP network.

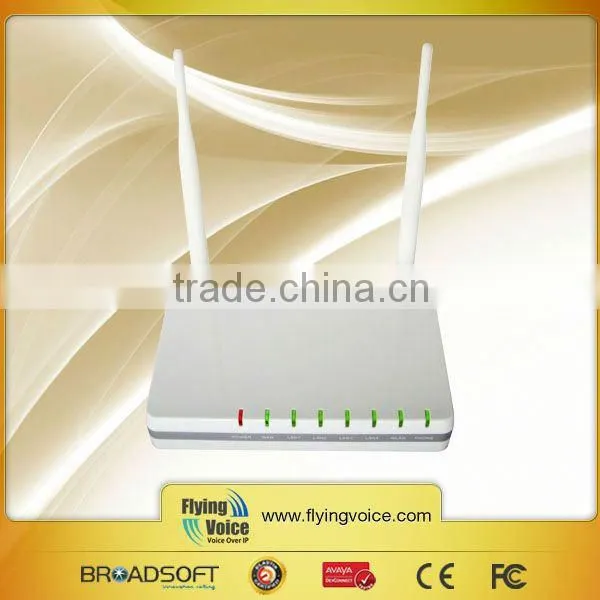

2. Pictures

More details , welcome to visit our website

3. G801 Specifications

Hardware Features
Interface	4 10/100Mbps LAN ports 1 10/100Mbps WAN port 2 FXS port 2 5dB Antenna for IEEE802.11n 2T2R Wireless 1 Power set
Power Supply	AC Input : 100-240v, 50-60Hz; DC Output: 5V, 2A
Environmental	Operation Temperature: 5~45 Degree C Storage Temperature: -25~85 Degree C Relatively Humidity: 10%~90% No Condensing Shock: Up to 75cm Drop upon package
Dimension	(L)180×(W)110×(H)30mm
Unit Weight	338g(without package)
Software Features
Audio Codec Features	G.711(A-law, u-Law)with PAMS above 4.3 G.729A/AB with PAMS above 4.0 Adaptive Jitter Buffer Management Voice Activity Detection Comfort Noise Generation Echo Cancellation T.30 FAX with G.711 Real time FAX over IP via T.38
Protocols	SIP V2 (RFC 3261,3262,3263,3264) Backward Compatible with RFC2543 Session Timer (RFC4028) SDP (RFC2327) RTP/RTCP (RFC1889 and RFC1890) NAPTR for SIP URI Lookup (RFC2915) STUN (RFC 3489) ARP/RARP (RFC 826/903) SNTP (RFC 2030) DHCP/PPPoE PPTP/L2TP VPN HTTP Server for Web Management TFTP/HTTP for Auto Provisioning Message Waiting Indicator(RFC3842) DHCP Option Codes for SIP(RFC3361) DNS/DNS SRV (RFC1706 and RFC 2782) IEEE802.1Q VLAN/802.1p and DSCP
Management	Firmware Upgradeable Web Management Interface IVR-driven Management Interface Local and Remote Syslog (RFC3164) Auto Provisioning SNTP Time Synchronization Multiple User Level SNMPv2 TR069 Telnet System Log: local log and remote log
Wireless	802.11b/g/n support 4 SSID Static WEP(64/128bit) Dynamic WEP(64/128bit) AES(CCMP/TKIP) MAC Certification WEP certification WPA-PAK/WPA-PSK(2.0) WPA/WPA2 AS Isolation and MBSSID AP Isolation WMM WDS WPS Station list Radius certification and billing MAC Filter(different from MAC Filter)
Applications	Support NAT mode and Bridge mode Support DDNS MAC address cloning SIP proxy redundancy NAT Traversal by STUN Built-in Wired speed NAT Router DHCP Server and Client IP conflict detection VLAN Flow Control VPN Pass through (PPTP,L2TP and IPSec) Port forwarding and DMZ host Rate Limit per port Broadcast Storm Control Classification by physical port, IP port, 802.1p,DSCP and TCP/UDP port Marking by 802.1p and DSCP MAC filter per port Packer filter for port, IP address, protocol and physical port Firewall defend attack and UDP flooding
Call Features	3-way Conference Music on hold DTMF Relay: In-band, Out-band and SIP INFO Call Hold Call Forwarding Call Mute Call Transfer Call Waiting Speed Dial Caller ID and CWCID QoS Layer 3 Real time fax over IP via T.38 T.30 FAX with G.711 Dial Plan Black List Call Log Dial Plan DTMF Mode: Inband, Outband and SIP Info

4. Interoperability Test (IOT) and compatible platform:

5. Payment and Shipping:

6. Warranty and after sale service:
