G802 voip wireless router 300M AP Router 2 FXS ports

FOB Price

USD $1 - $50 / Set

1 Set(Min.Order)

Supply Ability 2000 Unit / Units per Month
Port ShenZhen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	Flyingvoice
Model Number	G802		Type	VoIP Gateway

Product Description

G802wireless voip router 300M AP Router 2 FXS ports

1. Key features for G802

G802 is VoIP Wireless Router with 2 FXS, is an ideal IEEE802.11n 300Mbps wireless voip router. It is the ideal choice for voip comunication and integrates internet sharing for daily application.

G802 not only provides the high quality of voice communications and wired Internet sharing capabilities (100Mbps wirespeed hardware NAT supported) but also offers Access Point (AP) function for daily wireless communication. With advanced router, G802 is able to make calls via SIP proxy voice communications, plus the IP sharing, and the QoS mechanism.

The G802 is based on SIP V2.0 and 802.11n standard and compatibility with most service providers. It features 2FXS telephone ports, 5 10M/100Mbps Ethernet ports which brings great convenience when deploying VoIP network.

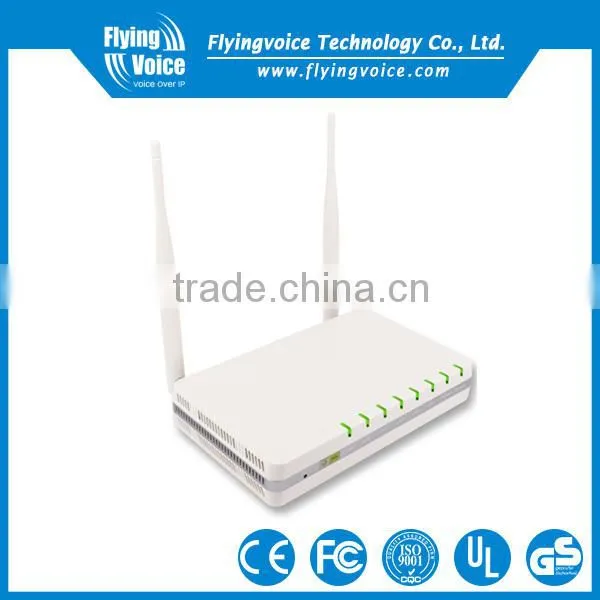

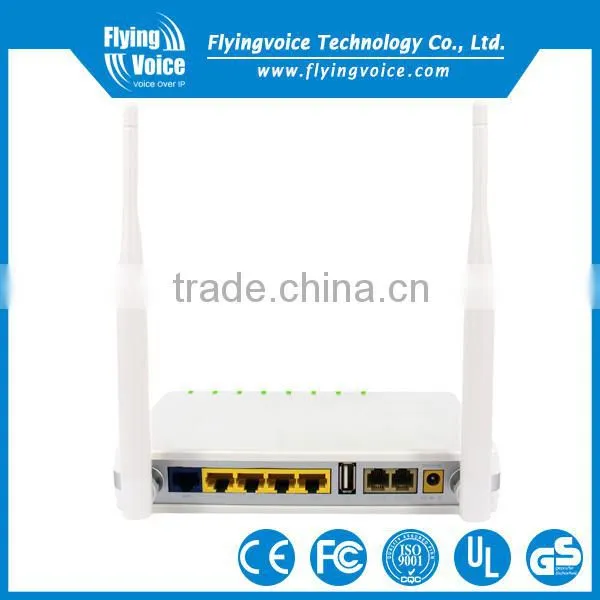

2. Pictures

More details , welcome to visit our website

3. G802 Specifications

Hardware Features
Highlights	• 5 10/100M RJ45 ports, 2 FXS RJ11 ports • IEEE802.11n 2T2R 300Mbps WiFi • 5dBi external antenna • 1 USB • Hardware NAT (HNAT) engine with 100Mbps NAT/NAPT speed • WiFi throughput is above 160Mbps in MAX. • Rich QoS capability in wired and wireless • Real time FAX over IP via T.38 and T.30 FAX with G.711 • PESQ is above 4.4 in G.711, PESQ is above 4.0 in G.729 • Auto-provisioning TFTP/HTTP/HTTPS • TR069, SNMP 1 Power set
Power Supply	AC Input : 100-240v, 50-60Hz; DC Output: 5V, 2A
Environmental	Operation Temperature: 5~45 Degree C Storage Temperature: -25~85 Degree C Relatively Humidity: 10%~90% No Condensing Shock: Up to 75cm Drop upon package
Dimension	(L)180×(W)110×(H)30mm
Unit Weight	338g(without package)
Software Features
Audio Codec Features	G.711(A-law, u-Law)with PAMS above 4.3 G.729A/AB with PAMS above 4.0 Adaptive Jitter Buffer Management Voice Activity Detection Comfort Noise Generation Echo Cancellation T.30 FAX with G.711 Real time FAX over IP via T.38
Protocols	SIP V2 (RFC 3261,3262,3263,3264) Backward Compatible with RFC2543 Session Timer (RFC4028) SDP (RFC2327) RTP/RTCP (RFC1889 and RFC1890) NAPTR for SIP URI Lookup (RFC2915) STUN (RFC 3489) ARP/RARP (RFC 826/903) SNTP (RFC 2030) DHCP/PPPoE PPTP/L2TP VPN HTTP Server for Web Management TFTP/HTTP for Auto Provisioning Message Waiting Indicator(RFC3842) DHCP Option Codes for SIP(RFC3361) DNS/DNS SRV (RFC1706 and RFC 2782) IEEE802.1Q VLAN/802.1p and DSCP
Management	Firmware Upgradeable Web Management Interface IVR-driven Management Interface Local and Remote Syslog (RFC3164) Auto Provisioning SNTP Time Synchronization Multiple User Level SNMPv2 TR069 Telnet System Log: local log and remote log
Wireless	802.11b/g/n support 4 SSID Static WEP(64/128bit) Dynamic WEP(64/128bit) AES(CCMP/TKIP) MAC Certification WEP certification WPA-PAK/WPA-PSK(2.0) WPA/WPA2 AS Isolation and MBSSID AP Isolation WMM WDS WPS Station list Radius certification and billing MAC Filter(different from MAC Filter)
Applications	Support NAT mode and Bridge mode Support DDNS MAC address cloning SIP proxy redundancy NAT Traversal by STUN Built-in Wired speed NAT Router DHCP Server and Client IP conflict detection VLAN Flow Control VPN Pass through (PPTP,L2TP and IPSec) Port forwarding and DMZ host Rate Limit per port Broadcast Storm Control Classification by physical port, IP port, 802.1p,DSCP and TCP/UDP port Marking by 802.1p and DSCP MAC filter per port Packer filter for port, IP address, protocol and physical port Firewall defend attack and UDP flooding
Call Features	3-way Conference Music on hold DTMF Relay: In-band, Out-band and SIP INFO Call Hold Call Forwarding Call Mute Call Transfer Call Waiting Speed Dial Caller ID and CWCID QoS Layer 3 Real time fax over IP via T.38 T.30 FAX with G.711 Dial Plan Black List Call Log Dial Plan DTMF Mode: Inband, Outband and SIP Info

4. Interoperability Test (IOT) and compatible platform:

5. Payment and Shipping:

6. Simulations
