Home > Electrical & Electronics > Telecommunication & Broadcasting > VoIP Products > Flyingvoice 4G LTE WLAN Cellular VPN Router

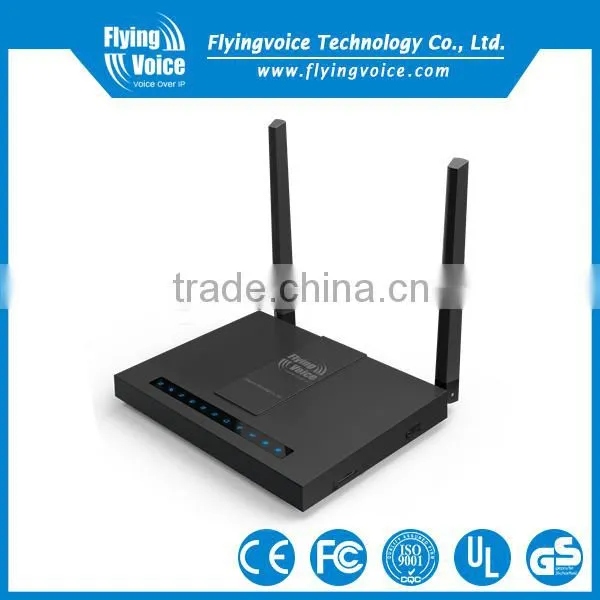

Flyingvoice 4G LTE WLAN Cellular VPN Router

Name: Flyingvoice 4G LTE WLAN Cellular VPN Router
Brand: Flyingvoice
SKU: 124370397
Availability: InStock

Flyingvoice 4G LTE WLAN Cellular VPN Router thumbnail-1

Flyingvoice 4G LTE WLAN Cellular VPN Router photo-1

US$ 1 - 120 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Flyingvoice

Model Number:

FWR7202

Contact Supplier Request Quote Chat Now

Beijing Flyingvoice Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name Flyingvoice

Model Number FWR7202

Type VoIP Gateway

Newest ! Flyingvoice 4G LTE WLAN Cellular VPN Router

FWR7202 is VoIP Wireless Router with 2 FXS and 4G LTE module
IEEE802.11n 2.4G 300Mbps 2T2R wifi
2 RJ11 Port for VoIP FXS
Hardware NAT Router

1 SIM card slot

FWR7202 IEEE802.11n 2.4G 300Mbps wifi and 2 fxs port sip voip gateway/wireless voip router is an ideal 802.11n 300Mbps wirelss voip router. It is the ideal choice for voip comunication and integrates internet sharing for daily application.

FWR7202 not only provides the high quality of voice communications and wired Internet sharing capabilities but also offers Access Point (AP) function for daily wireless communication. With advanced router, FWR7202 is able to make calls via SIP proxy voice communications, plus the IP sharing, and the QoS mechanism.

The FWR7202 is based on SIP V2.0 and 802.11n standard and compatibility with most service providers. It features 2FXS telephone ports, 5 10M/100Mbps Ethernet ports which brings great convenience when deploying VoIP network.

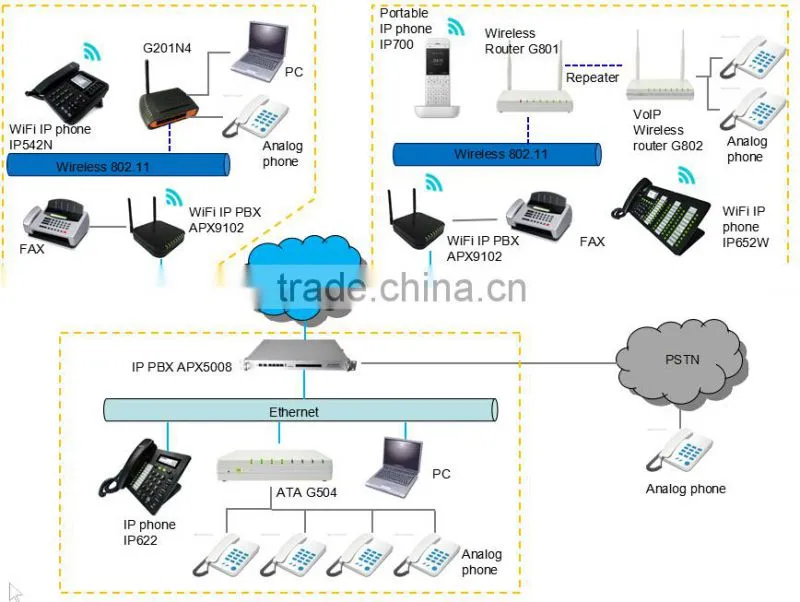

3. Pictures

More details , welcome to visit our website

FWR7202 Specifications

VoIP SoC	n MIPS Single-core 880MHz
Flash	n 16MBytes Flash
RAM	n 64MBytes DDR2 RAM
Power Supply	n AC/DC Adapter ² AC Input: 100~240V, 50~60Hz ² DC Output: 12V, 1.5A
I/O Interfaces	n 1 RJ-45 for WAN port (Ethernet 100 Base-T) n 4 RJ-45 for LAN port (Ethernet 100 Base-T) n 2 RJ-11 for FXS port n 4G LTE n SIM Card n IEEE802.11 b/g/n
Environmental	n Operation Temperature: -5~45 Degree C n Storage Temperature: -25~ 85 Degree C n Relative Humidity: 10%~90% No Condensing
Key Feature	n LTE-FDD Band 1/3/7/8 LTE-TDD Band 38/39/40/41 n Hardware NAT(HNAT) engine with 100Mbps NAT/NAPT speed n 2X2 2.4G 802.11 b/g/n(300 Mbps) n Support VoIP FXS port with SIP and T.38 FAX n 1 USB 2.0 Host Ports for storage and printer n External Antenna for LTE and Wifi
Audio Codec	n G.711 (A-Law, u-Law) with PESQ above 4.3 n G.729 with PESQ above 3.7 n Adaptive Jitter Buffer Management n Voice Activity Detection n Comfort Noise Generation n Echo Cancellation n T.30 FAX with G.711 n Real time FAX over IP via T.38
Protocols	n SIP V2.0 (RFC 3261, 3262, 3263, 3264) n Backward compatible with RFC2543 n Session timer (RFC4028) n SDP (RFC2327) n RTP/RTCP (RFC823/903) n NAPTR for SIP URI lookup (RFC2915) n STUN (RFC2030) n ARP/RARP (RFC 826/903) n SNTP (RFC 2030) n DHCP/PPPoE n HTTP Server for Web Management n TFTP/HTTP for Auto Provisioning n Message Waiting Indicator (RFC3842) n DHCP Option Codes for SIP (RFC3361) n DNS/DNS SRV (RFC1706 and RFC 2782) n IEEE802.1Q VLAN/802.1p and IP DSCP
Wireless	n 802.11 b/g/n support n 4 SSID n Static WEP(64/128bit) n Dynamic WEP(64/128bit) n AES(CCMP/TKIP) n MAC certification n WEP certification n WPA-PAK/WPA-PSK(2.0) n WPA/WPA2 n AP Isolation and MBSSID AP Isolation n WMM n WDS n WPS n Station list n Radius certification and billing n MAC Filter(different from wired MAC Filter)

Applications	n Support LTE n Support NAT mode and Bridge mode n Support DDNS n MAC address cloning n SIP proxy redundancy n NAT Traversal by STUN n Built-in Wired speed NAT Router n DHCP Server and Client n IP conflict detection n Port Forwarding, DMZ, SuperDMZ n 802.1Q VLAN/802.1p, DSCP, Rate Limiting n VPN(PPTP,L2TP, IPSec) Passthrough n SNTP n IGMPv2 n Firewall(SYN Flooding, IP Spoofing, Smurf Attack, Ping of Death, DoS)
Management	n Firmware Upgrade n Web Management Interface n IVR-driven Management Interface n Local and Remote Syslog (RFC3164) n Auto Provisioning n SNTP Time Synchronization n Multi User Level n SNMP v2 n Telnet n TR069 n System Log: local log and remote log
Call Features	n 3-way conference n Call hold n Call forwarding n Call Transfer n Call waiting n Caller ID and CWCID n DTMF Relay: In-band, Out-band and SIP INFO n QoS Layer 3 n Call Log n CID/CWCID n Dial Plan n DTMF Mode: Inband, outband and SIP Info
Regulatory	n FCC Part 15 Class B approval n CE certification n RoHS compliance
Dimension	n (L) 188 x (W) 155 x (H) 29mm; n 331g (without package)
