Cost-effective, High-performance 2 FXS Telephone Adaptor

Cost-effective, High-performance 2 FXS Telephone Adaptor thumbnail-1
Cost-effective, High-performance 2 FXS Telephone Adaptor photo-1
US$ 39.2 - 49 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Flyingvoice
Model Number:
G502N
Contact Supplier Request Quote Chat Now
Beijing Flyingvoice Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Flyingvoice
Model Number G502N
Type VoIP Adapter

Specifications

telephone adaptor
Real time FAX over IP via T.38 and T.30 FAX with G.711
PAMS is above 4.0 with G.729

1. Key features for G502N





Cost-effective, High-performance 2 FXS telephone adaptor is the newest 2 FXS ATA (Analogue Telephone Adapter) products in Flyingvoice, which enables customers to register to different SIP Proxy server, IP PBX and establish up to 2 concurrent VoIP calls for more flexibility in the voice communication.



ATA Series Comparison





Their compact size, excellent voice quality, packed feature functionality and best-in-class price-performance point enable consumers to maximize the power of IP voice and data connectivity.



The G502N, G501N and G102N are based on SIP V2 standard and compatibility with most service providers. It features 2 FXS telephone ports, TR069 CPE management & monitoring protocols and a base stand for vertical positioning.




 . Real time FAX over IP via T.38 and T.30 FAX with G.711
 . TR069 CPE management & monitoring protocols
 . Field proven compatibility and stability
 . Very Highly affordable and effective 1~2 FXS ports VoIP CPE





welcome to visit our website for more details ,



2. Pictures













3. G501N Specifications





Hardware Features
Interface 1 10/100Mbps LAN port
1 10/100Mbps WAN port
1 FXS port
1 Power set
Power Supply AC Input : 100-240v, 50-60Hz;  DC Output: 5V, 2A
Environmental  Operation Temperature: 5~45 Degree C
Storage Temperature: -25~85 Degree C
Relatively Humidity: 10%~90% No Condensing
Shock: Up to 75cm Drop upon package
Dimension (L)120×(W)80×(H)28mm
Unit Weight  140g(without package)
Software Features
Audio Codec Features G.711(A-law, u-Law)with PAMS above 4.3
G.729A/AB with PAMS above 4.0
Adaptive Jitter Buffer Management
Voice Activity Detection
Comfort Noise Generation
Echo Cancellation
T.30 FAX with G.711
Real time FAX over IP via T.38
Protocols SIP V2 (RFC 3261,3262,3263,3264)
Backward Compatible with RFC2543
Session Timer (RFC4028)
SDP (RFC2327)
RTP/RTCP (RFC1889 and RFC1890)
NAPTR for SIP URI Lookup (RFC2915)
STUN (RFC 3489)
ARP/RARP (RFC 826/903)
SNTP (RFC 2030)
DHCP/PPPoE
PPTP/L2TP VPN
HTTP Server for Web Management
TFTP/HTTP/HTTPS for Auto Provisioning
DNS/DNS SRV (RFC1706 and RFC 2782)
Management Firmware Upgradeable

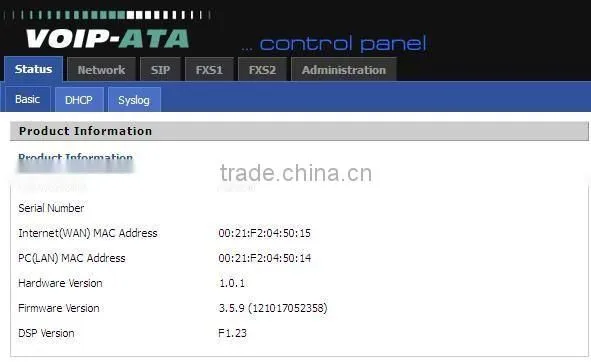

Web Management Interface
IVR-driven Management Interface
Local and Remote Syslog (RFC3164)
Auto Provisioning
SNTP Time Synchronization
Multiple User Level
SNMPv2
TR069
Applications NAT/NAPT Router function
MAC Address Cloning
DHCP Server
PPTP/L2TP VPN
PPPoE
SIP proxy redundancy - dynamic via DNS SRV, A records
NAT Traversal by STUN
DMZ
QoS with Layer 3
DHCP Client and DHCP Server
IP conflict detection
Call Features 3-way Conference
Music on hold
DTMF Relay: In-band, Out-band and SIP INFO
Call Hold
Call Forwarding
Call Mute
Call Transfer
Call Waiting
Speed Dial
Caller ID and CWCID
Hotline
Real time fax over IP via T.38
T.30 FAX with G.711
Dial Plan
Black List
Call Log





4. Tested and compatible platform
