Product Details
Place of Origin: | Guangdong, China | Brand Name: | Flyingvoice | Model Number: | IP652p |
Type: | VoIP Phone |
Product Description

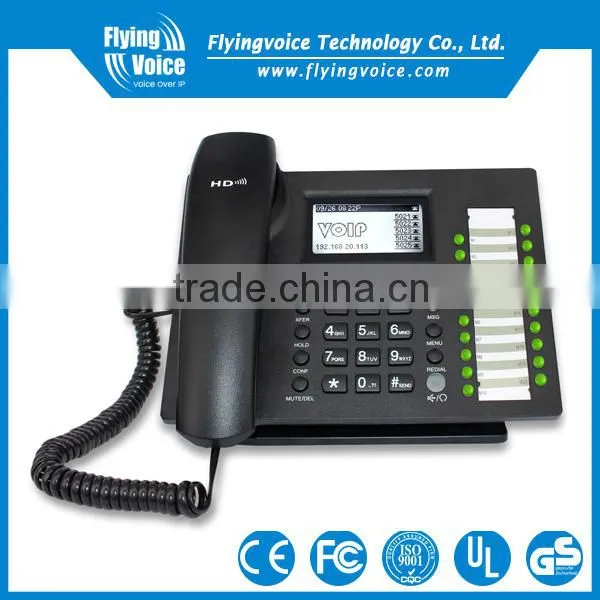

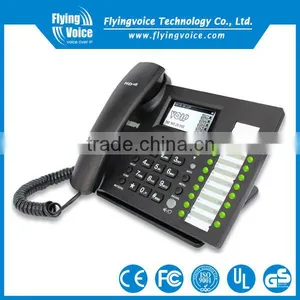

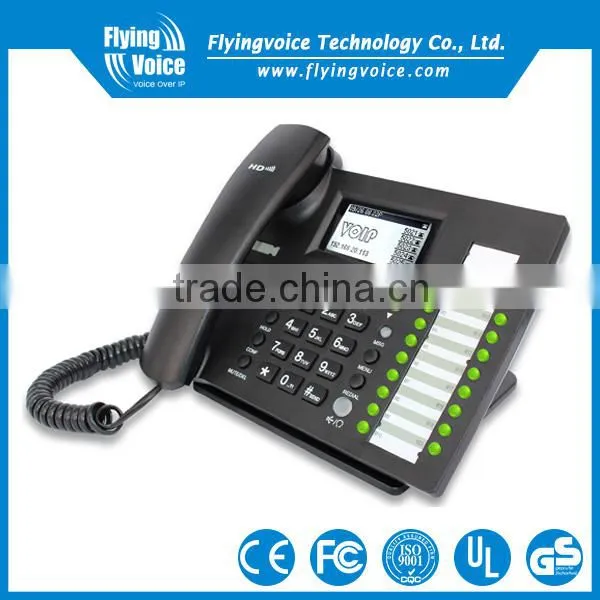

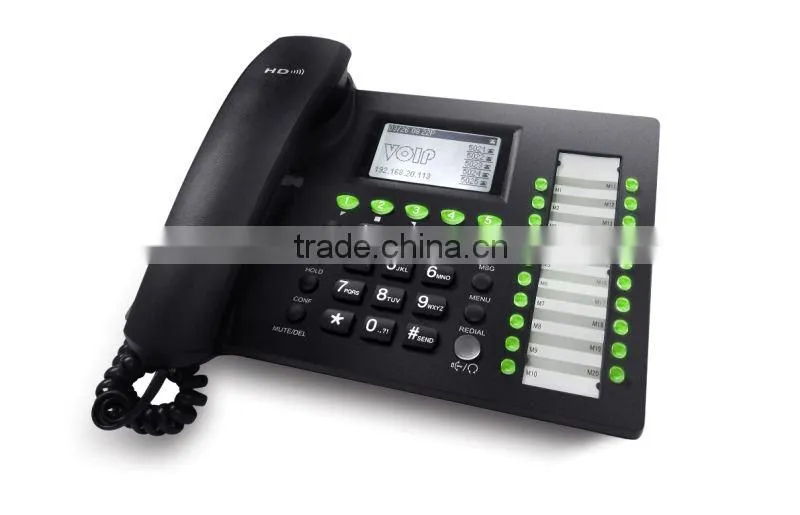

IP652p business IP SIP phone 5 sip r account with POE function
1. what are our Specifications?
Advanced business IP phone IP652p+ 6 EXP40(extension module) addable
- 2 10/100M RJ45 ports
- 128*64 graphic LCD with white backlight
- 5 Line-Keys & 5 SIP accounts
- 3 software defined keys for LCD menu
- 20 multi-function keys with green/red dual-color LEDs
- Up to 6 expansion modules with 40 Multi-function keys(EXP40)
- Compliant with IEEE802.3af Power over Ethernet(PoE)-Optional
- Handset jack and Wall-mount supported

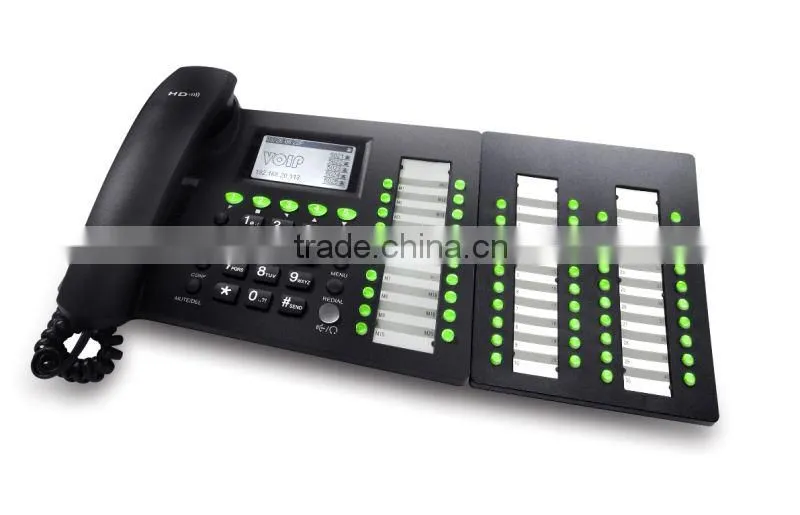

IP652 and One EXP40 Key Expension Module:
Hardware Features | |
Interface | 2 RJ-45 WAN port(10/100Mbps Ethernet port) 1 EXT port 1 headset port 1 DND switch Full duplex hands-free speaker phone Headset and wall mount 1 Power set |
Display | 128×32 Graphic LCD with white back light |
Phone Keys | 5 Line keys &softkey button MENU, UP, DOWN, MUTE/DEL, REDIAL, HOLD, MSG, Headset, Handsfree 12 Dial buttons(0~9, *,#) 20 Multi-functional key with dual-color LED |
LED | 5 line LEDs used to indicate line status 1 MSG LED 1 Handsfree, 1 Handset LED 20 LEDs used to indicate multi-functional key status |
Power Supply | AC Input : 100-240v, 50-60Hz; DC Output: 5V, 1A IEEE802.3af PoE in WAN port(IP601 only) |
Key Features | Support 20 multi-functional keys Support up to 6 expansion modules(EXP 40) with 260 multi-functional keys |
Environmental | Operation Temperature: 5~45 Degree C Storage Temperature: -25~85 Degree C Relatively Humidity: 10%~90% No Condensing Shock: Up to 75cm Drop upon package |
Dimension | (L)230×(W)168×(H)81mm |
Unit Weight | 730g(without package) |
Software Features | |
Audio Codec Features | G.711(A-law, u-Law)with PAMS above 4.3 G.729A/AB with PAMS above 4.0 G.723: 5.3kbps and 6.3kbps G.722(high quality) Adaptive Jitter Buffer Management Voice Activity Detection Comfort Noise Generation Echo Cancellation |
Protocols | SIP V2 (RFC 3261,3262,3263,3264) Backward Compatible with RFC2543 Session Timer (RFC4028) SDP (RFC2327) RTP/RTCP (RFC1889 and RFC1890) NAPTR for SIP URI Lookup (RFC2915) STUN (RFC 3489) ARP/RARP (RFC 826/903) SNTP (RFC 2030) DHCP/PPPoE HTTP Server for Web Management TFTP/HTTP for Auto Provisioning Message Waiting Indicator(RFC3842) DNS/DNS SRV (RFC1706 and RFC 2782) IEEE802.1Q VLAN/802.1p and DSCP |
Management | Menu Configuration Firmware Upgradable Web Management Interface Local and Remote Syslog (RFC3164) Auto Provisioning: TFTP, HTTP SNTP Time Synchronization Daylight Saving Time Alarm Clock Password Reset Factory Default Auto Provisioning: TFTP, HTTP Multiple User Level Configuration SNMPv2 TR069 |
Applications | MAC Address Cloning VPN: PPTP and L2TP DMZ SIP proxy redundancy: dynamic via DNS SRV, A records Direct IP to IP calling NAT Traversal: Traversal by STUN Built-in NAT Router QoS with Layer 2 and Layer 3 DHCP Server and Client IP conflict detection Support PoE comply with IEEE802.3af(optional) |
Call Features | 5 lines Auto answer 3-way Conference Music on hold DTMF Relay: In-band, Out-band and SIP INFO Call Hold Call Forwarding Call Mute Call Transfer: blind transfer and attended transfer Call Waiting Caller ID and call waiting ID Speed Dial Full-duplex Speakerphone Delayed hotline BLF Pick up Call Park Dial Plan MWI DND Call log: redial list, answered calls and missed calls Volume Adjustment: Handset, Speaker and Ringer Black List DTMF Relay: In-band, Out-band and SIP Info |
Phone Features | Customized Ring Tone SMS(100 records) Call History -Most Recently Missed Calls -Most Recently Received Calls -Most Recently Dialed Numbers Phone book(100 records) Speed Dial(10 records) |
Flyingvoice Technology Co., Ltd. is the leading company for VoIP CPE products in China. We have involved in VoIP products design and manufacture since 2007. We provide innovative and reliable VoIP products such as VoIP Analog Telephone Adapter (ATA), IP Phone, VoIP Gateway, Wireless Router with VoIP product, Wi-Fi SIP phone, and embedded IP-PBX.
Our contracted factories are all well equipmented and run under ISO9001-2000 control. They are Huawei, ZTE, Sony and LG contracted manufactory as well. Up to 3 contracted factories for different models to ensure the production capacity.
