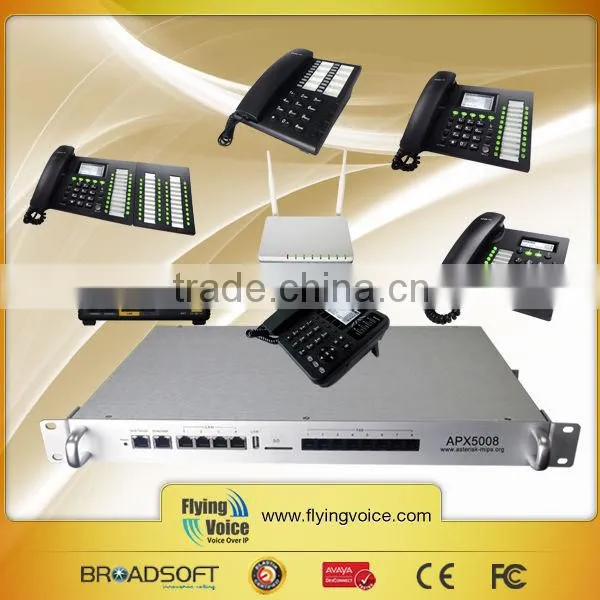

1. APX5008 Overview :



APX5008 is an Enterprise Router & IP PBX products for SME application. APX5008 can act as an SME router with OpenVPN support, and the same as an Asterisk IP PBX. It is an ideal products for small to medium company to build their IP network with the voice supporting.

APX5008 was developed based on the OpenWRT and Asterisk open-source project. Which is feature riched and easy to install and use.

APX5008 is an 19" 1U standard size equipment.



2. Flyingvoice VoIP CPE Products List:





Features/Model	G102N	G501N	G502N
Network Ports	1 RJ45 10/100Mbps (WAN)	2 RJ45 10/100Mbps (WAN/LAN)	2 RJ45 10/100Mbps (WAN/LAN)
FXS Ports	2	1	2
SIP Accounts	2	1	2
Wire-Speed NAT	yes	yes	yes
DHCP	Client	Client/Server	Client/Server
Voice Codec	G.711(A-law, U-law), G.729A/AB
Management	Integrated IVR, Web browser, Auto-Provision with HTTP/TFTP/HTTPS,TR069, SNMP
FAX	T.30,T.38 Fax

Features/Model	G801
Network Ports	5 RJ45 10/100Mbps (1 WAN/4 LAN)
FXS Ports	1
USB Port	no
Ethernet Ports	100M
Wire-Speed NAT	Yes(100M)
Wireless	2.4G 2T2R(300Mbps)
Voice Codec	G.711(A-law, U-law), G.729A/B
Management	Integrated IVR, Web browser, Auto-Provision with HTTP/TFTP, TR069, SNMP

Features/Model	IP542N	IP652	IP622	IP601
LCD	128*64 Graphic LCD	128*64 Graphic LCD	128*64 Graphic LCD	No LCD
Headset Port	3.5mm	RJ9	RJ9	no
Hand free	yes	yes	yes	yes
802.3af POE	Optional
Battery	no
Wall-Mount Support	yes	yes	yes	yes
Extension Modules	no	Yes, up to 6 modules(EXP40)	no	no
SIP Accounts	4	5	2	1
Line Keys	4	5	2	no
Soft Keys	4	3	4	no
Multi-function keys	no	20(Support 260 at max with 6 EXP40)	10	20(no BLF function)
Wireless	Yes,802.11n1T1R	no	no	no
Voice Codec	G.711(A-law, U-law), G.723, G.729A/B, G.722(Wide band)
Integrated IVR	N/A	N/A	N/A	yes
Management	Web browser, Auto-Provision with TFTP/HTTP, TR069, SNMP





2.3 APX5008 Configuration page

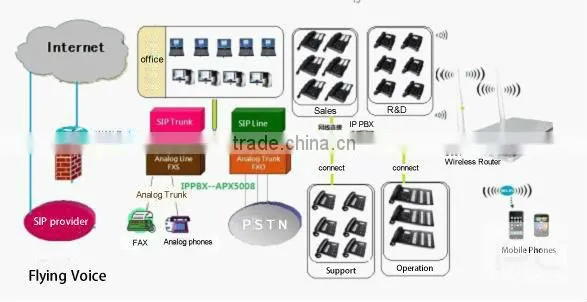

2.4 Application picture







3. Interoperability Test (IOT) and compatible platform:

4. Payment and Shipping:





5. Warranty and after sale service:
