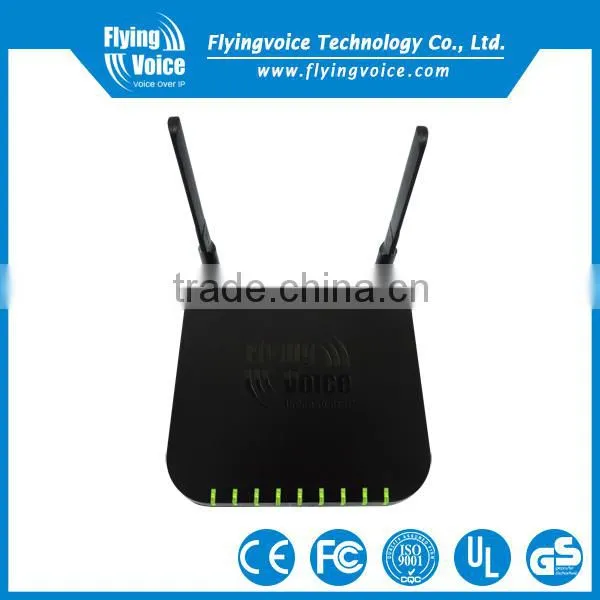

Micro WiFi wireless ip pbx with 2 fxo ports APX9102
1. what are our Specifications?
50 registered extensions
25 synchronous calls
10 people's telephone conference room
2 FXO RJ11 ports
1 USB port
802.11ac & 802.11b/g/n wireless
OpenVPN
Asterisk based
SIP trunk and Skype trunk
75 hours' voicemail
5*10/100/1000M RJ45 ports, support DDNS, Open VPN and QoS
Scalable capacity, support external storge devices, like SD card, U disk, removable hard disk and so on.
Wireless Mini IP-PBX
APX9102, based on Asterisk and Open WRT, is the newest product of Flyingvoice, which make focus on the
needs of small and medium-sized domestic enterprises. It is an embedded IP telephone system, Dual-Band
network control and management in one device. What is more, it provides a business Wireless IP Phone
system thatis adapted to the using of about 50 people.
APX9102 manage your office's voice and data services at the same time, it not only provides efficient communication costs control, but also it can integrate existing sources of your office, help improve your wor
king efficiency and enhance the competitiveness.
A high-integrated IP-PBX
APX9102 was developed based on the OpenWRT and Asterisk open-source project. Which is feature riched and easy to install and use.
| Features/Model | APX9102 |
| Network Ports | 5 RJ45 10/100/1000Mbps (1 WAN / 4 LAN) |
| Wifi | IEEE802.11 b/g/n IEEE802.11 ac |
| USB 2.0 Port | 1 |
| FXO Ports | 2 |
| Conference Meeting Room | two for 10 persons one for 20 persons |
| Operation System | Asterisk / OpenWRT |
| Management | Firmware Upgrade Web Management Interface SNTP Time Synchronization Batch Configuration for SIP Terminal |
Technical Parameters
| FLASH | 128M Nand Flash | |
| Power supply | AC input: 100-240V, 56-60Hz DC Output: 12V, 1.5A |
|
| LED indicators | 1 Internet led for indicating Internet connecting; 4 Ethernet led for indicting Ethernet connecting; 1 Power led for indicting Power connecting; 2 Wireless led for indicting Wireless opening(2.4G/5G); |
|
| Environmental | Operation Temperature: 0-45 degree C Storge Temperature: -25-85 degree C Relative Humidity: 10%-90% No Condensing Shock: Up to 75cm(30 inches) |
|
| I/O Interfaces | 1 RJ45 for WAN port(10/100/1000M) 4 RJ45 for LAN ports(10/100/1000M) 1 USB port for 3G card and printer 2 RJ11 ports for FXO 1 button for rebooting and resetting default |
|
Key Functions
| Function | Explanation |
| Make/Answer Calls | Free calls between the internal branches, low rates for international long distance calls through Skype or SIP providers. |
| Transfer | Attended transfer and blind transfer; Tranfer calls to any extension or mobile phone, make feel free to answer the calls. |
| Hold the Call | Playing hold music, support editing the music on hold |
| Multi-level IVR | Multi-level IVR, support different IVR on different time |
| ACD | Rich call queue functions, assign the calls humanely |
| CFWD When Busy | When the extension is on phone, forwarding the call to other extensions or outside phones( including mobile phone) |
| Paging&Intercom | Paging and Intercom, making broadcast or notice |
| DND | Do not disturb |
| Ring groups | Ringing simultaneously or ringing in order |
| Three-way Conference | Inviting the third party to attend the conference |
| Conference Room | Multi-party telephone conferencing,entering the designated conference room for meeting |
| SIP Trunk Skype Trunk |
Making calls using SIP trunk or Skype trunk to reduce the communication costs |
| Voicemail | Transferring the call into voicemail box when no one accept the call; Send the voice message to your own mail box. |
| Check Status | Checking the status of the extensions or trunk, check the status of APX9102; Supporting BLF, user can set this on phone to check the status of other extensions. |
| Call Park | Supporting paring |
Application Diagram
Flyingvoice Technology Co., Ltd. is the leading company for VoIP CPE products in China. We have involved in VoIP products design and manufacture since 2007. We provide innovative and reliable VoIP products such as VoIP Analog Telephone Adapter (ATA), IP Phone, VoIP Gateway, Wireless Router with VoIP product, Wi-Fi SIP phone, and embedded IP-PBX.
Our contracted factories are all well equipmented and run under ISO9001-2000 control. They are Huawei, ZTE, Sony and LG contracted manufactory as well. Up to 3 contracted factories for different models to ensure the production capacity.
