Specifications
marble engraving machine TJ12181.CE certificate
2.DSP control system
3.Type 3, Artcam,Castmate and ucancam softwares

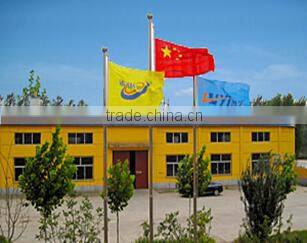

Jinan Tian Jiao Machinery Manufacture Co.,Ltd. is specialized in developing and manufacturing Mechanical CNC router (woodworking router, advertising router, stone engraving router), CNC Laser machine, Plasma cutting machine, cutting plotters, metal mould engraving machine and other cnc machines. We supply global market the high quality CNC equipments. We are leading company in this field and being confident in offerring the best service and best quality.
We also could customerized the goods, also could offer OEM servie. Our products has been exported to many oversea countries and gaining more clients satisfaction and good comments.
Hoping that we could be your good and long term honest partner, wish you could get the joyness and satisfaction with our products and service.

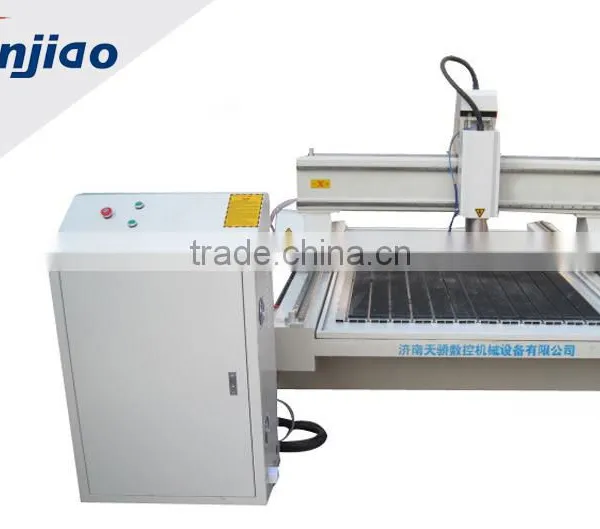

marble engraving machine TJ1218
This series of models mainly used for heavy weight of the tile, bluestone,marble, granite, white marble, sandstone, glass engraving, metals engraving and so on.
Features:X,Y, Z three-axises all use imported square orbits .
It also equips with water groove and dustproof structure.
Water cooling constant torque spindle with the imported bearings, high power and low noise.
The transducer with stable output signals
Fully sgielded,bending circuity, and imported electronic components.
Double drivers to drive y axis, motivity is more stronger
Whole seamless steel structure,can load weight up to 1000kg/
Performance Feature
1,Three axises adopt import square orbits, heavy loading, stable working, high precision and long lifetime .
2,Whole seamless weld steel structure, not easy to distort , the table back lining is armor plate, good rigidity, the machine can bear 1MT weight at least.
3, Constant power spindle and motor,hightly cutting capability ,high efficiency.
4,Well compatibility, compatible sofetware CAD/CAM, such as Type 3, Artcam,Castmate,Wentai,Coredraw.
5,Double direction cutters cooling system can prolong the lifetime of using.
6,High flexility, uneasy distorted cable and imported electronic components guarantee the stablitity of operating the machines.
Performance parameter |
TJ9015 |
TJ1218 |
TJ1224 |
TJ1225 |
X,Y Working area |
900mmx1500mm |
1200mmx1800mm |
1200mmx2400mm |
1200*2500mm |
Z Working area |
250mm |
180mm |
250mm |
250mm |
Table size |
1100mmx2000mm |
1400mmx2300mm |
1400mmx2900mm |
1400*3000mm |
Processing precision |
0.03mm |
0.03mm |
0.03mm |
0.03mm |
Reposition precision |
0.02mm |
0.02mm |
0.02mm |
0.02mm |
Table structure |
aluminium |
aluminium |
aluminium |
aluminium |
X,Y,Z structure |
X Y gearwheel, Z ballscrew |
X Y gearwheel, Z ballscrew |
X Y gearwheel, Z ballscrew |
X Y gearwheel, Z ballscrew |
Command |
G CODE |
G CODE |
G CODE |
G CODE |
Machine power |
2KW |
2KW |
2KW |
2KW |
Max processing speed |
8000mm/min |
8000mm/min |
8000mm/min |
8000mm/min |
Max speed |
15000mm/min |
15000mm/min |
15000mm/min |
15000mm/min |
Working voltage |
AC380V/50Hz |
AC380V/50Hz |
AC380V/50Hz |
AC380V/50Hz |
Spindle power |
5.5KW water cooling spindle |
5.5KW water cooling spindle |
5.5KW water cooling spindle |
5.5KW water cooling spindle |
Spindle rotating speed |
0-24000rpm/min |
0-24000rpm/min |
0-24000rpm/min |
0-24000rpm/min |
Drive motor |
Stepper |
Stepper |
Stepper |
Stepper |
Operation system |
DSP control system |
DSP control system |
DSP control system |
DSP control system |
Samples
Service:
1. 24-hour online service for you
2.longlife time freely provide technical support
3.welcome to our factory,our technical staff teach you for free
Warranty:
Gurantee the whole machine for one year,offer lifelong repair,Offer 24 - hour technical support
