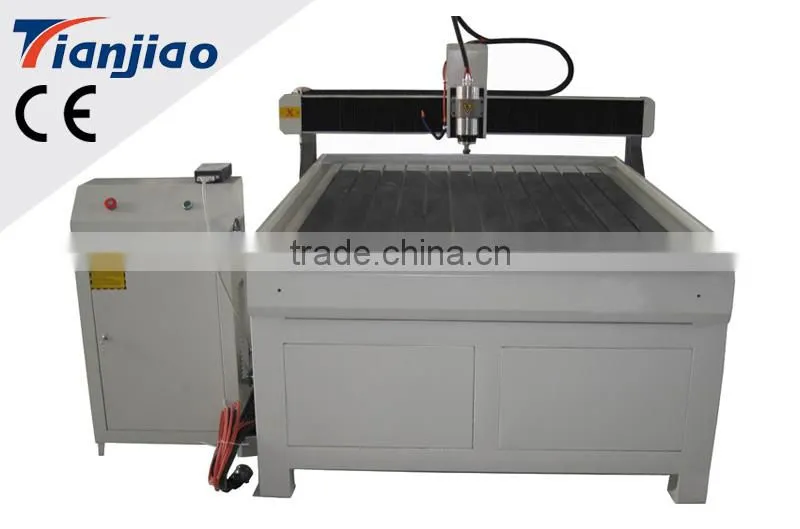

Marble Engraving Machine 1315

Marble Engraving Machine 1315 thumbnail-1
Marble Engraving Machine 1315 photo-1
US$ 499 - 19,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Stone Engraving Machine, Horizontal
Use:
Marble
Contact Supplier Request Quote Chat Now
Jinan Tian Jiao Machinery Manufacture Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Shanghai/Tianjin/Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, Stone Engraving Machine, Horizontal
Use Marble
Production Capacity 80 sets/month
Place of Origin Shandong, China
Brand Name TIANJIAO
Model Number 1315
Voltage AC380V/50Hz
Power(W) 800W (not including spindle)
Dimension(L*W*H) 1300mmx1500mmx200mm
Weight 1500kgs
Certification CE FDA ISO
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

marble engraving machine 1315

marble engraving machine 1315

Application:

This series of models mainly used for heavy weight of the tile, bluestone,marble, granite, white marble, sandstone, glass engraving, metals engraving and so on.





Features:

1.X,Y,Z three-axis all the imported square orbits, heavy loading, stable working, long lifetime.

2.X,Y,Z three-axis all have the waterproof, dustproof system, can prolong the life time of orbit and ballscrew.

3. Water cooling constant torque spindle with the imported bearings, high power and low noise.

4.Well compatibility, campatible with Type3/Artcam//Castmate/Wentai and many other sofeware.

5.Double direction cutters cooling system can prolong the lifetime of cutters.

6.Full shielded, high flexility, uneasy distorted cable and imported electronic components the components guarantee the stablitity of operating the machines.

7. The transducer with stable output signals

8.Fully shieled,bending circuitry,and imported electronic components

9. Adopt imported ballscrew

10.Cast iron structure, can load weight up to 200kg



Standard Technical parameters:



1 Model 1315
2 X,Y Working area 1300mmx1500mm
3 Z Working area >120mm
4 Table size 1420mmx1800mm
5 Processing precision 0.03mm
6 Reposition precision 0.02mm
7 Max feeding height 120mm
8 Surrounding software Windows98/2000/xp
9 Operation code G CODE
10 Power(not including spindle) 800W
11 Max processing speed 6m/min
12 Max speed 8.8m/min
13 Working voltage AC380V/50Hz
14 Spindle power 4.5KW water cooling spindle
15 Spindle rotating speed 0-24000rpm/min
16 Drive motor Stepper
17 Operation system DSP control system



sample

marble engraving machine 1315marble engraving machine 1315

Warranty and after sales service

  • One year machine warranty ,during the warranty period , if any parts broken, we change a new part for you freely.
  • All machines are debugged before shipment.
  • Lifetime technical support  and service.
  • 24 hours on line or phone or by email technical support.
  • We offer detailed machine manual, software manual, controller manual.
  • Our factory make a vivid traing CD.
  • Maintenance  free of charge during lifespan.
  • Free training course at our plant.
  • Welcome to visit our factory, learn machine face to face.

Company information

marble engraving machine 1315





Jinan Tian Jiao Machinery Manufacture Co., Ltd. specializes in developing and manufacturing Mechanical CNC routers, CNC Laser machines, Plasma cutting machines, cutting plotters and other machines. We provide global market with high quality CNC equipment. We are a leading company in this field, being confident in offering the best service and best quality.



With many years' hard work and perfect management system, we have classified our products into several categories: woodworking machines, advertising machines, ATC machines, stone working machines, plasma cutting machines, laser machines and plotters. We can also customize products and offer OEM service. Our products have been exported to many overseas countries, gaining good comments.



We hope to be your good, long-term and honest partner. Wish you can get joy and satisfaction from our products and service.
