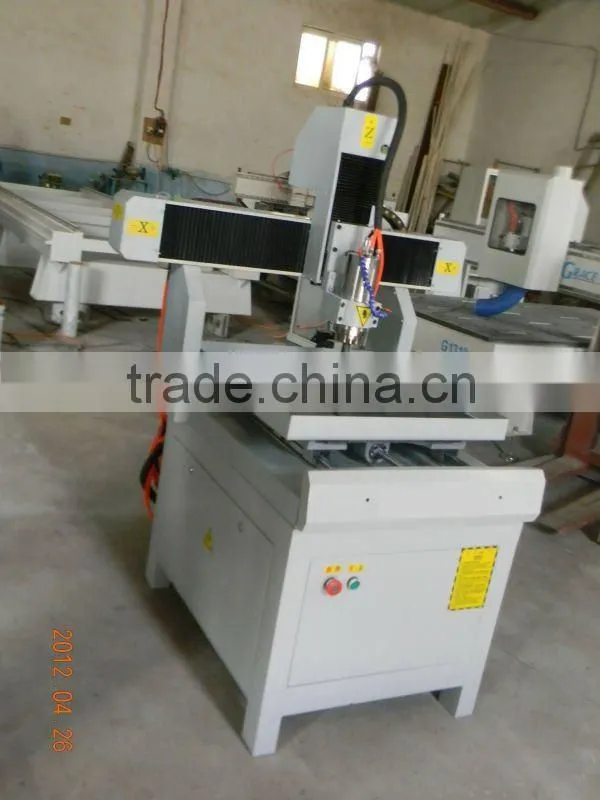

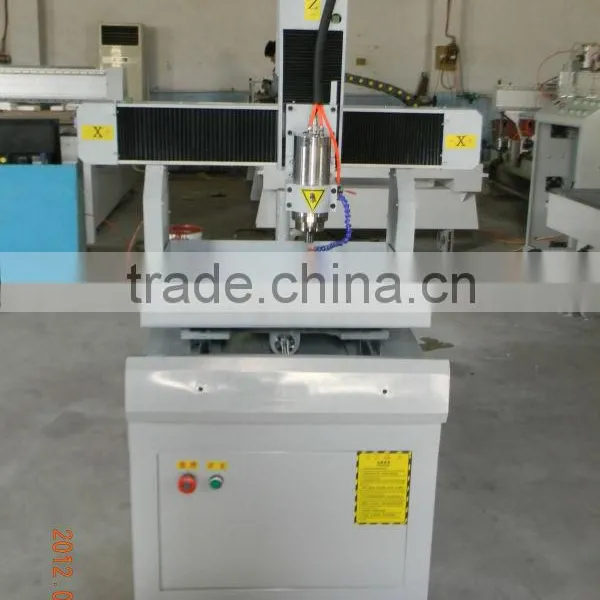

cnc router machines for stone/cnc granite marble carving and cutting machine TJ-6060
Applications:

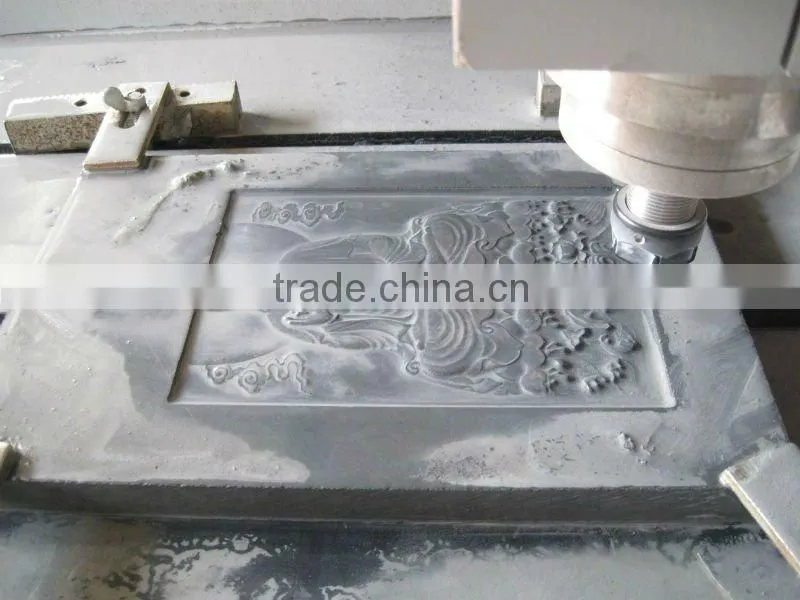

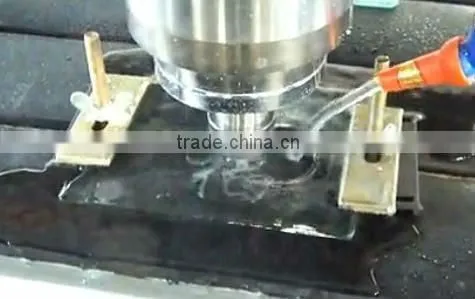

This machine is widely used in advertising industry, such as acrylic cutting, jade ,glass and marble engraving, sign making ,department nameplate ,chest badge ,architectural model, ABS plate.
Features:
1. Whole cast aluminum, long service time, resistant to wear and low noise.
2. Vertical bracket, removable gantry, fixed worktable, three axis adopt imported Germany high precision ball screw, can engrave 2mm-3mm little letter.
3. X, Y axis adopts popular dustproof and waterproof structure, Conducive to maintenance.
4. Adopt advanced CNC system (NCstudio or DSP control system), has break point memory mode to make sure continuous working after electronic drop or other postpone situation.
5. User-friendly design, can be split into the machine and the bracket, easy to transport and installation.
Technical parameters:
Model |
TJ-6060C |
Machine body |
Whole cast aluminum |
Work dimensions |
600*600*80mm |
Max. feeding height |
80mm or bigger |
Working table |
Aluminum T-slot PVC table with water tank |
Guide way |
Imported HINWIN Cylinder linear guideway |
Driving mode |
Ball screw |
Mechanical precision |
0.01mm |
Repositioning accuracy |
0.03mm |
Max. Speed |
8m/min |
Working speed |
0-5m/min |
Driving motor |
Stepper motor |
Max. Power consumption |
3.5KW |
Software |
Type 3, Art cut, Art cam and Ucancam software |
Voltage |
AC 220/50Hz or 110V |
Spindle |
3KW variable speed, water-cooling spindle |
Spindle speed |
0 - 24,000rpm/min |
Blade diameter |
3.175mm, 4mm, 6mm,8mm |
Control system |
DSP controller system with USB interface |
Command |
G code, u00, mmg, plt |
Certification |
CE, FDA |
Net weight |
220kg |
Options:
1. Bigger spindle--bigger power, large force.
2. Rotary axis-for cylindrical materials engraving or 3D engraving.
