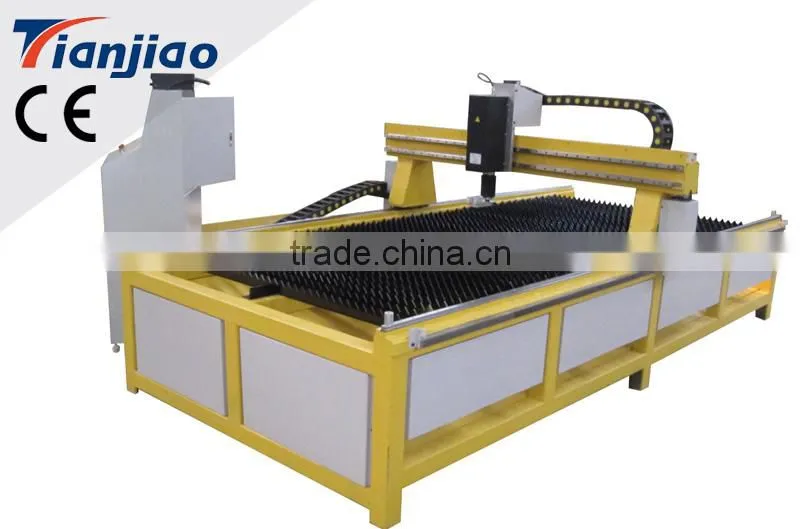

Industrial plasma cutting machine
Application:
It is mainly designed for cutting small metal sheet such as Iron sheets, Aluminum sheets, Galvanized sheets, Tianium Plates.And the valid cutting range is 1300*2500mm.The working area is 1300*2500mm.
Configuration
1.Thicken square tube welding structure column
2.Square orbit gea-rwheel
3.Import Hypertherm and Thermadyne power supply.
Features:
Gantry structure,double motor driver of Y axis.Light beam design,linear guide rail,high accuracy,stable transmission.
Untouched plasma head,small cutting edge,no cutting residue. Water cooling system avoids the distortion of metal board. High cutting speed,high accuracy,low cost.
Advanced numeral control system,stable performance. Software compatability: Ucancam,Type3,Artcam,etc.Success ratio of arc striking can be over 99%.
Power supply: Import Hypertherm and Thermadyne power supply.
Control system: DSP Control system
Structure: 3 axises square orbits, Gear-wheel
Software: UCANCAM software
Standard Technical parameters:

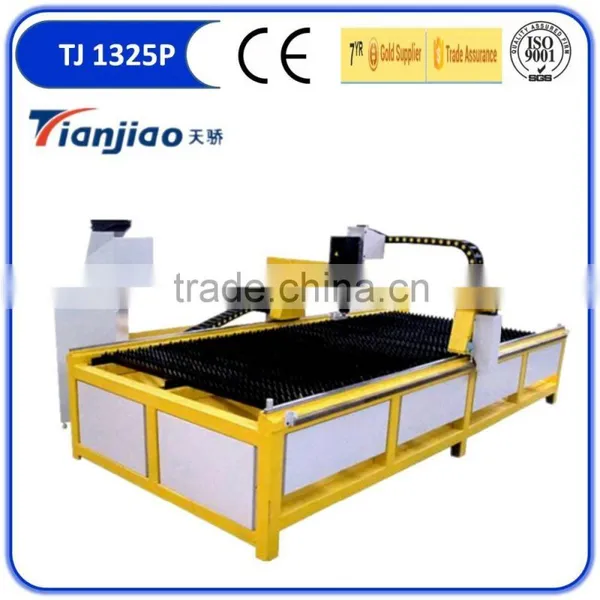

| 1 | Model | TJ 1325P |
| 2 | Working area | 1300*2500mm |
| 3 | Applications | Iron sheets, Aluminum sheets, Galvanized sheets, Tianium Plates. |
| 4 | Working thickness | 0.5-15mm |
| 5 | Cuttting speed | 0-8000mm/min |
| 6 | power | 8.5KW |
| 7 | Input voltage | 3phase 380V |
| 8 | Frequency | 50HZ |
| 9 | Current | 60A or 100A |
| 10 | File transfer | USB interface |
| 11 | Working mode | None touching Arc |

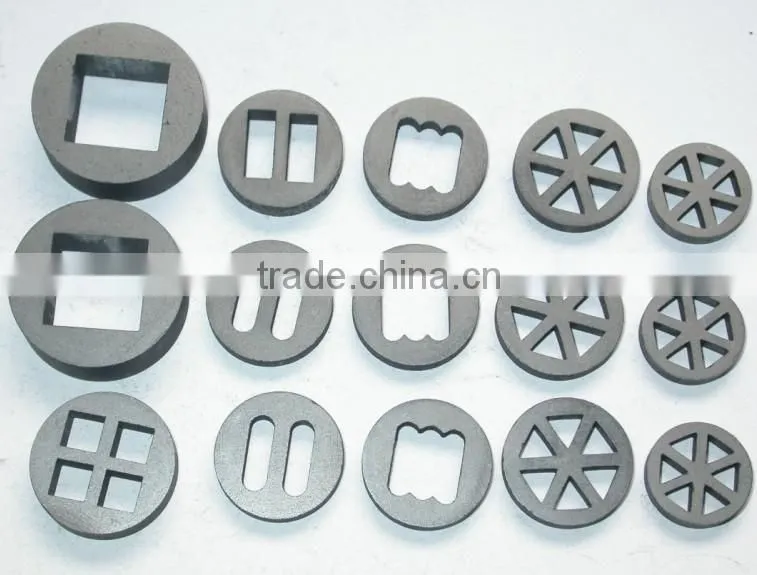

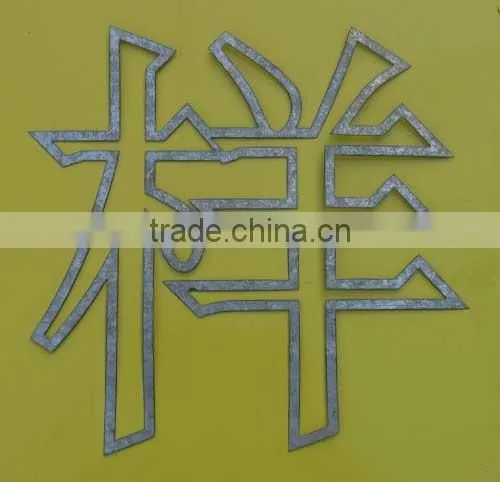

samples
Warranty and after sales service
- One year machine warranty ,during the warranty period , if any parts broken, we change a new part for you freely.
- All machines are debugged before shipment.
- Lifetime technical support and service.
- 24 hours on line or phone or by email technical support.
- We offer detailed machine manual, software manual, controller manual.
- Our factory make a vivid traing CD.
- Maintenance free of charge during lifespan.
- Free training course at our plant.
- Welcome to visit our factory, learn machine face to face.
Company information
Jinan Tian Jiao Machinery Manufacture Co., Ltd. specializes in developing and manufacturing Mechanical CNC routers, CNC Laser machines, Plasma cutting machines, cutting plotters and other machines. We provide global market with high quality CNC equipment. We are a leading company in this field, being confident in offering the best service and best quality.
With many years' hard work and perfect management system, we have classified our products into several categories: woodworking machines, advertising machines, ATC machines, stone working machines, plasma cutting machines, laser machines and plotters. We can also customize products and offer OEM service. Our products have been exported to many overseas countries, gaining good comments.
We hope to be your good, long-term and honest partner. Wish you can get joy and satisfaction from our products and service.
Advantages:
1.Our company was set up for many years and we have lots of experience.
2.All the parts of our machines are famous brand in China or in international,so it make sure our machine have high quality and long lifetime.
3.Our worker have experience,they can produce machines professional and skilled,so make the machine with high quality and can work well.
4.Perfect after-sales service.
