Specifications
wood Embossing carving machinery1.hgih speed and cheap
2. water cooling spindle
3.Japan YASKAWA servo

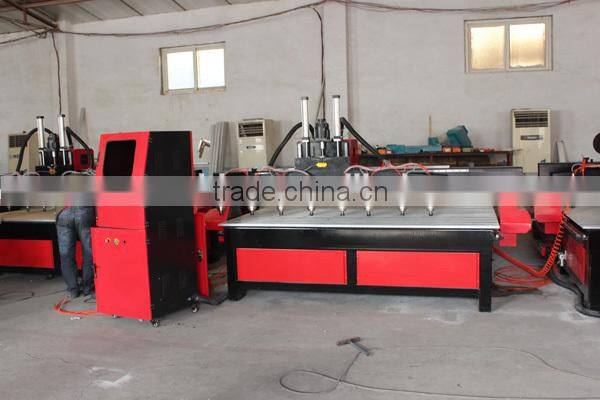

wood Embossing carving machinery
Jinan Tian Jiao Machinery Manufacture Co.,Ltd. is specialized in developing and manufacturing Mechanical CNC router (woodworking router, advertising router, stone engraving router), CNC Laser machine, Plasma cutting machine, cutting plotters, metal mould engraving machine and other cnc machines. We supply global market the high quality CNC equipments. We are leading company in this field and being confident in offerring the best service and best quality.
All machine heads can process at the same time ,can aslo work alone,many times increasing in efficiency .
Adopt German double-nut ballscrews ,imported square guide rail ,the adoption of the breakpoint memory,Guarantee in the accident (power off )or the next day can process.
Gantry movment,long time use no distortion,the more precise positioning accuracy .
Large cutting power not only to elaborately carved a jagged ,also smooth clear bottom .
Increase the efficiency when doing the complicated graph ;good coherence and high quality when batch processing;goog stability with the long time working and low error ratio .
Can make the quantity of the heads and the working area for the machine as per customer's request
wood Embossing carving machinery
Feature
1.The distance between heads can be adjusted according to the working pieces being processed 2.equipped with 2 to 8 heads; the machine one time can complete the works done by several machines, to save cost and improve the working efficiency
3.it is possible to start any one of the heads only
4.spindle power is selected according to customer's requirements
5.rotary attachment is optional, which enable the machine to engrave on column work pieces like table leg
6.especially firm structure and special design on details make the machine to achieve the best performance results Parameters
wood Embossing carving machinery
Parameters:
Model |
Multi-head CNC Router TJ2015 |
Working travel |
X 260*6mm;Y :2000mm ; Z axis200mm |
Spindle rate |
2.2KW *6 water cooling spindle |
Spindle speed |
0-24000rpm/min |
operating system |
DSP operating system |
Table size |
1550*3100mm |
Motor type |
Stepper motor(optional servo motor ) |
Driver |
Leadshine driver(optional YAKO driver)) |
Transmission |
X,Y by rack ,Z by screw |
Guide rail |
HIWIN square orbit (PMI guide rail ) |
Inverter |
Sunfar inverter(optional Delta inverter) |
Work-holding |
T-slot |
Interface |
15 pins |
command code |
G code(*.uoo *.mmg *.plt) |
Process precision |
+0.05mm |
Reposition precision |
+0.05mm |
Max feed |
≥17000mm/min |
Idle speed |
≥32000mm/min |
Working voltage |
AC380V/220V 50HZ |
Software |
Artcam/Artengraver/Type3/UcancamV9 (optional ) |
Other parts |
Dust collecting system ,oiling system |
Running Environment |
Temperature: 0°C~45°C |

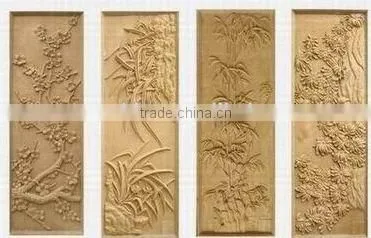

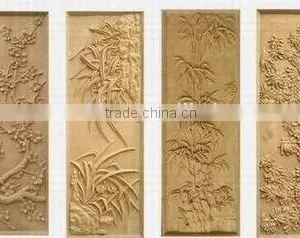

Applicable industry and material :
Furniture :wooden doors,cabinets,plate,office and wood furniture,tables,chairs,doors and window .
The wood products :voice box,game cabinets,computer tables,sewing machines table,instrument.
Plate processing :insulation parts,plastic chemical components,PCB,inner body of car,bowling tracks,stairs,anti-bate board,epoxy resin,ABS,PP,PE,and other carbon mixed compounds .
Decorate industry :Acrylic,PVC,MDF,artficial stone,organic glass,plastic and soft metals such as copper,aluminum plate engraving and milling process

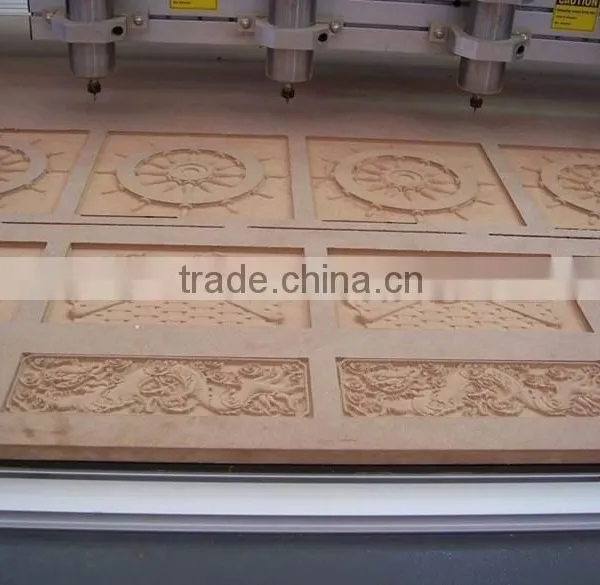

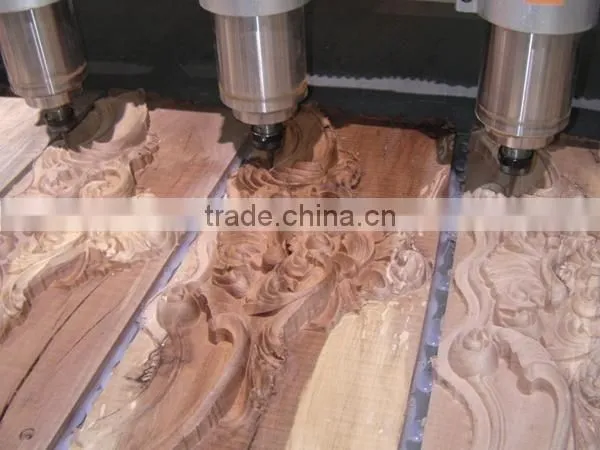

photos
Aluminum profile table
Vacuum table
NC-studio system
2000*1500mm size

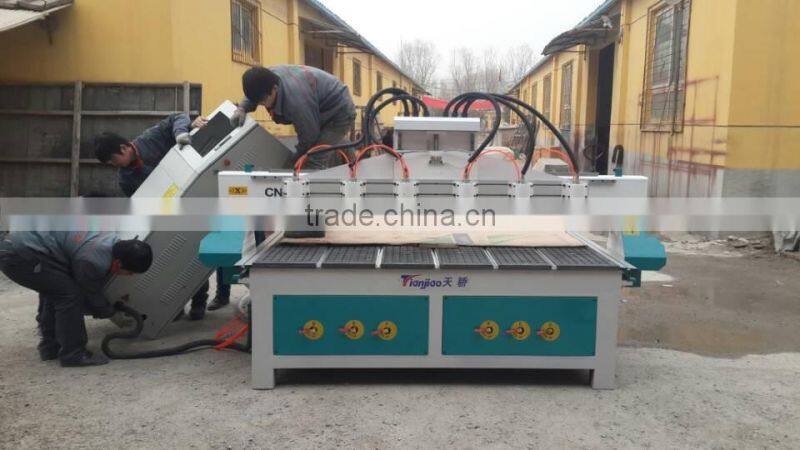

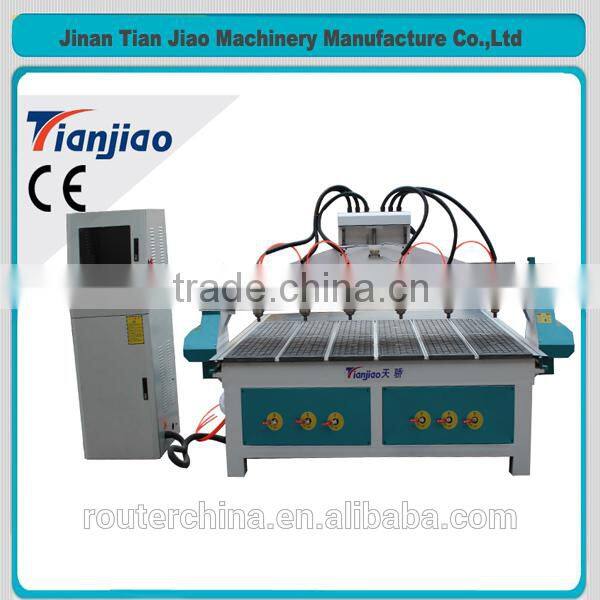

6 heads 1.5kw water cooling
1 set driving system
T-slot table
DSP control system

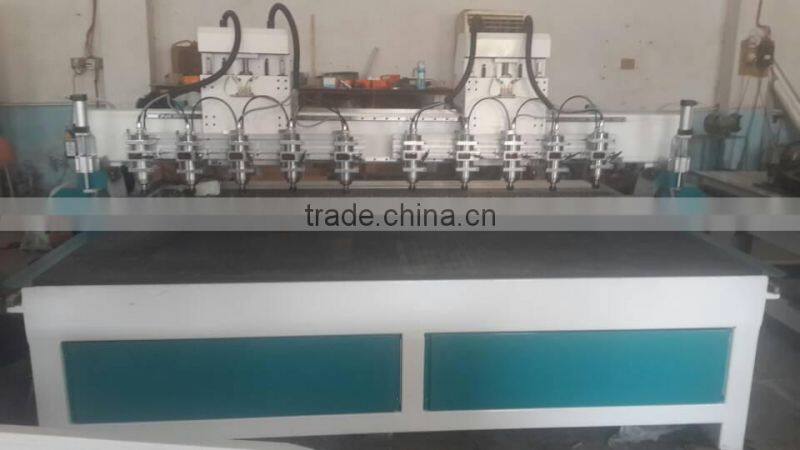

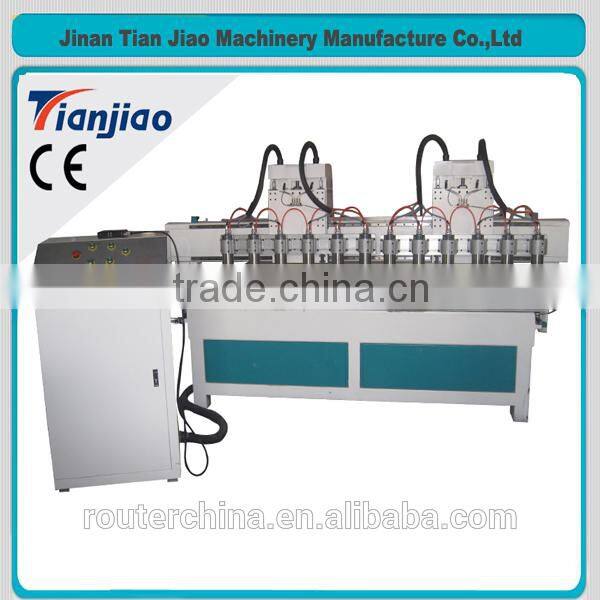

1.5kw water cooling spindle*12pcs
2 set driving system
T-slot table with pressure roller
NC-studio system
1.5kw water cooling spindle*10pcs
2 sets driving system
