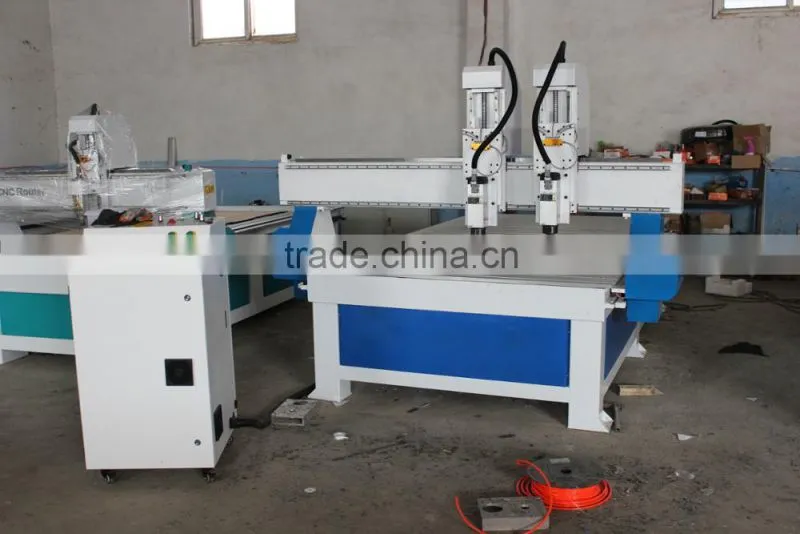

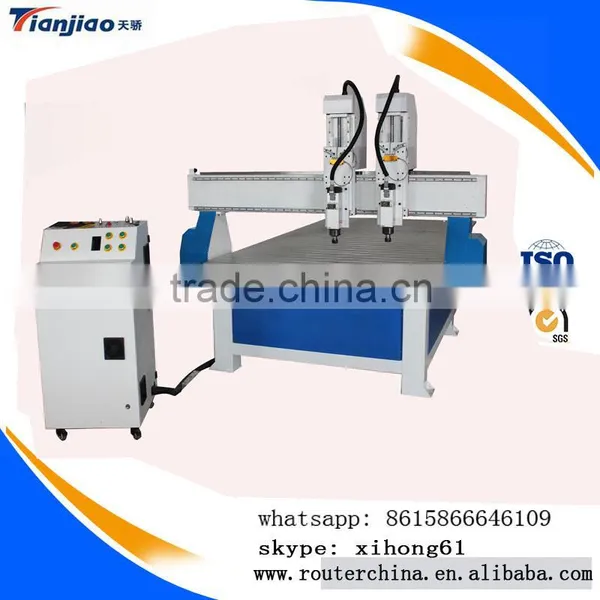

cnc wood router kit for small crafts engraving machine
whatsapp: 8615866646109
skype: xihong61
Features:
1.Two heads can simultaneously process, and can also be used alone, more efficiency
than one head.
2. Screw drive, economical, cost-effective.
3.Germany imported high precision pre-loaded eliminating gap ball screw to reduce the movement gap to the minimum and
make the location more accurate.
4.Imported linear guides, self lubricating block making equal force in all
directions to ensure the accuracy and mechanical strength.
5.The breakpoint memory function can guarantee the machine continues processing when
cutters broken by accident or to do the work the next day.
6.Gantry Moving, machine body is wholly casted, durable, long term use without deformation.
Applicable industry:
1. The furniture industry: mahogany and other hardwood antique furniture carve
patterns such as embossment, piercing .
2.Woodworking industry: classic mahogany furniture products processing.
3. The advertising industry: advertising signs, sign making, acrylic cutting,
plastic molding, decorative products for a variety of materials, production of
advertising.
4. Other Industry: a variety of shadow carving, embossment, widely used in craft
gifts industry.
5. It can also be applied to: aluminum incision industry, aluminum plate,
aluminum plastic panels, aluminium honey comb plate, aluminium section, 3D
ornamental engraving process, wave board production, various types of man-made plate opening and shaping, LED, neon shaped groove literal cutting,
Light box molding. Acrylic, copper board, PVC board, artificial stone, MDF
board and other material plates processing.
Parameters
Model |
TJ1325 |
Working Area |
1300*2500*200 mm |
Spindle |
3 kw, 24000 rpm, water cooling |
Table |
Vacuum table with pump |
Transmission |
ballscrew for x.y.z |
Guideway |
precision guideway |
Resolution |
0.01 mm |
Speed |
15m/min |
Driver |
Microstepping drivers and stepping motors |
Code |
G Code, HPGL Code |
Power Supply |
AC380V/50Hz |
Controlling System |
DSP |
Software |
Artcam or Type3 |
Software Environment |
Windows XP |
Packing |
Wooden Box |
Net Weight |
1400 kg |
Gross Weight |
1500 kg |
Applicable Materials |
wood, pvc, acrylic, mdf, plexiglass, and aluminum, copper,aluminum composite panel, etc |
Standard config:
3kw water cooling spindle
T-slot table
DSP control
F&L inverter 5.5kw
Hiwin orbit 20
helical gear
manual valve to control vaccum
automatic oiling system
Video links:
/watch?v=QRsGHnO0zKg
http://youtu.be/ars2TRif5Og
sample show:
Quality control:
We always pay more attention to the quality of cnc router. Standard quality control system and team are responsible to insure the product quality in every process with different instruments.
Package and shipping:
service:
Before sale
1.Patient introduce and professional suggest buying selection
2.Real time report production situation
3.Take pictures and make videoes with your done machine
4. Strict test and debugg machine quality before shipping
After sale
24 hours on line service and phone on
2 years gurantee term
During gurantee term, repair or change damaged parts for free
Exceed gurantee term, offer at cost price
Our company:
Jinan Tian Jiao Machinery Manufacture Co.,Ltd. is specialized in developing and manufacturing Mechanical CNC router (woodworking router, advertising router, stone engraving router), CNC Laser machine, Plasma cutting machine, cutting plotters, metal mould engraving machine and other cnc machines. We supply global market the high quality CNC equipments. We are leading company in this field and being confident in offerring the best service and best quality.
Welcome to contact me:
WhatsApp: 86 15866646109
wechat: isabella8689
skype: xihong61
email: xihong_86 at
