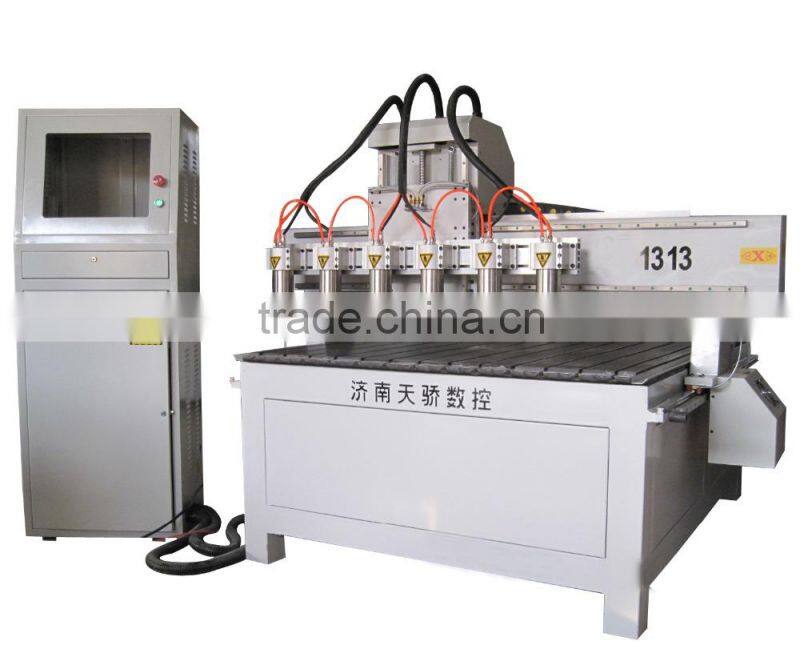

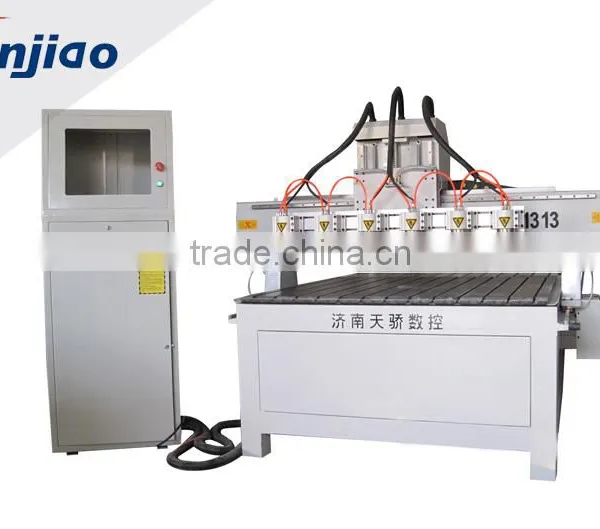

TJ-1313 with six spindles cnc working machine
1. Application:
This machine is widely used in woodworking, carving, cutting, engraving, work materials are wood, MDF, aluminum panels, ABS, acrylic, PVC, a variety of decorative materials.
2. Features:
This machine with strong structure, large cutting force, high speed is suitable for processing large quantities of material. It is equipped with 1.5KW water cooling spindle, cutting faster and more power.
1. Solid gantry, well structure of lathe bed, stable lathe table, fast speed and high accuracy.
2. High-speed water cooling spindle and high performance subdivision driver ensure work stably for a long time.
3. Adopt advanced CNC system DSP, This system have break point memory mode and special saving made of different points so that can make sure continuous working after electronic drop or other postpone situation. This function can guarantee the processing precision of long time operation. Configured with practical and easily -learned software, can conveniently check the moving path of tool, and adjust the processing depth of Z axis and the speed of motor.
3. Parameters:
Model: |
TJ1313 |
Machine body: |
Whole cast iron |
Guideway: |
XYZ-axis use linear guideway |
Driving mode : |
XY-axis use rack and Z-axis use ballscrew |
X,Y-axis working area : |
1300*1300mm |
Body dimensions(with bracket): |
1900*1900*1450mm |
Z-axis working area: |
200 or 250 mm |
Max. Feeding height: |
120mm or bigger |
Cut thickness of material: |
100mm |
Max. Speed: |
25000mm/mi |
Working speed : |
0-12000mm/min |
Mechanical precision: |
0.01mm |
Compatible Software: |
Type 3 software , Artcut software , Artcam software |
Max. Power consumption: |
7.0KW |
Power source: |
AC220/50HZ or 380V/50HZ |
Driver type: |
Stepper motor (XZ-85BYG motor , Y-axis use two 85BYG motors) |
Memory: |
Without or DSP |
Spindle: |
1.5KW variable speed , water-cooled motor |
Spindle speed: |
0-24000rpm |
Blade diameter: |
3.175mm,4mm,6mm,12mm or 12.7mm |
Control system: |
NCSTUDIO or DSP(USB interface) |
Command: |
G code ,u00,mmg,plt,HPGL |
Running circumstance temperature: |
0-45°C |
Relative humidity: |
30%-75% |
Pack dimensions: |
3200*2000*1550mm |
Net weight: |
900kg |
Gross weight: |
1100kg |
Optional: |
Rotary axis , vacuum table and dust collector |

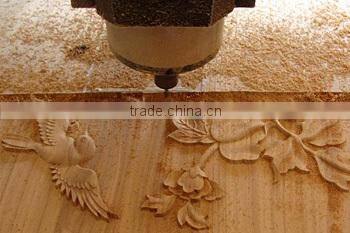

4. Samples:
5.Packing&Shiping:
6.Our company:
7.After-sale service:
1. Technical support online service provided.
2. Technical files service provided.
3. On-site training service provided
4.Spare parts replacement and repair service provided.
8.Contact:
Sale Manager:sara
Tel: +86-18366192210
Skype: live:sara5211-2
TradeManager:cn1001481911
