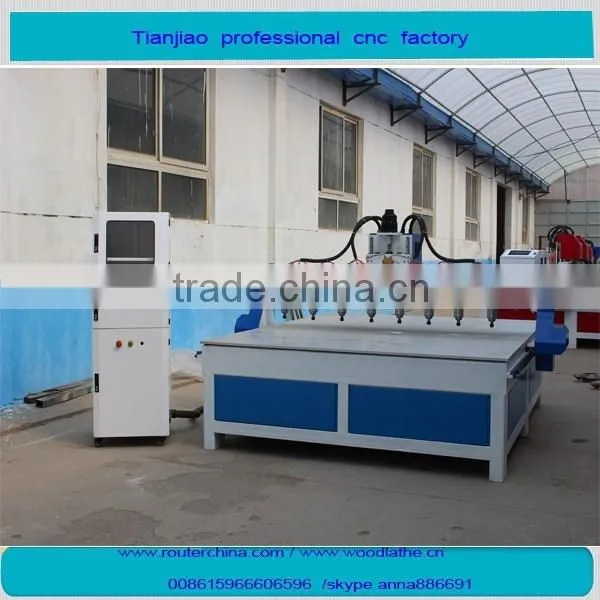

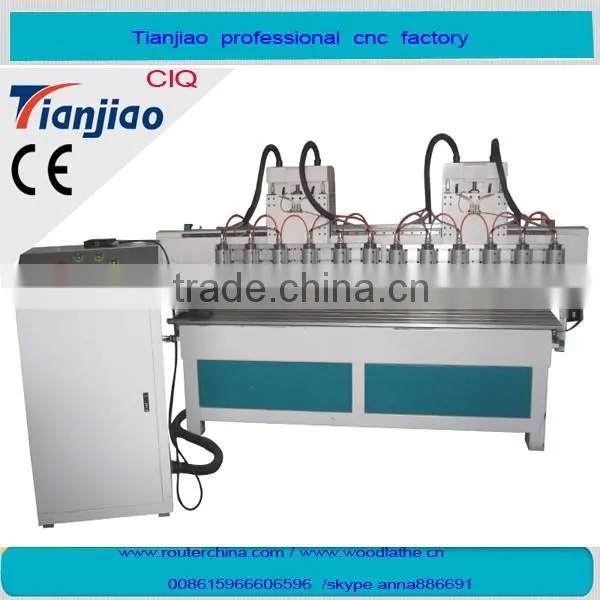

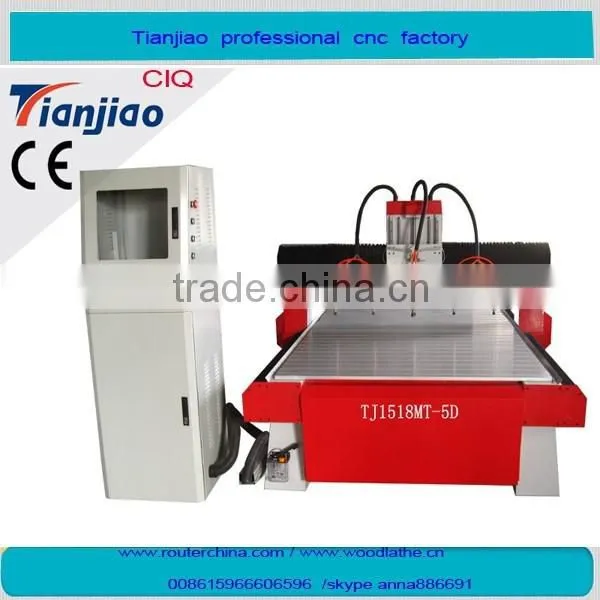

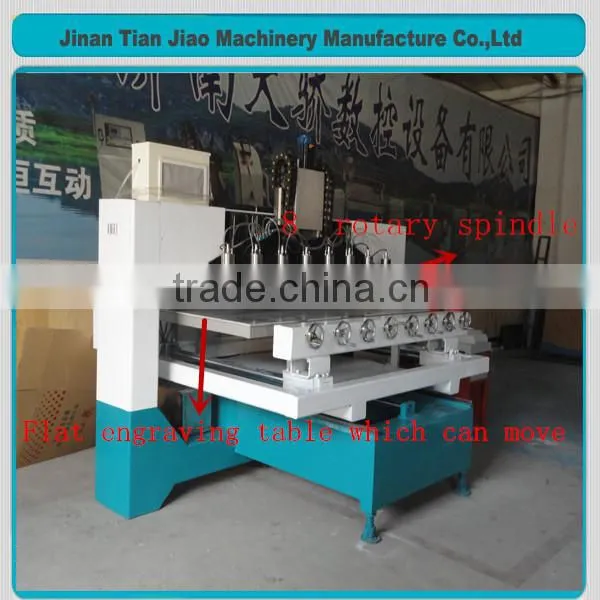

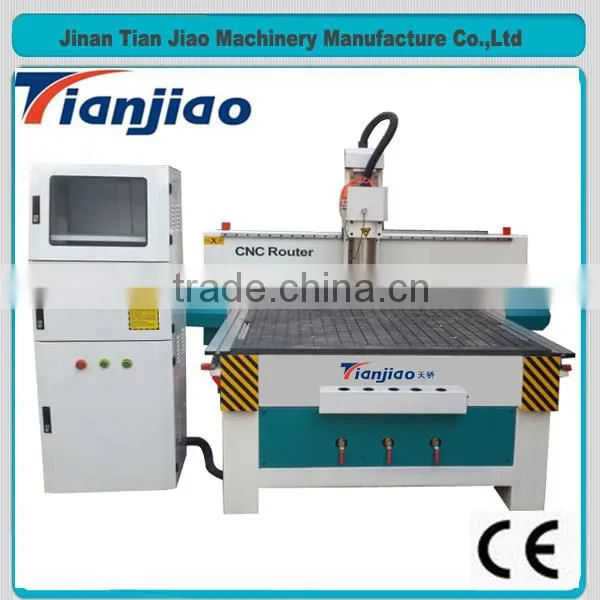

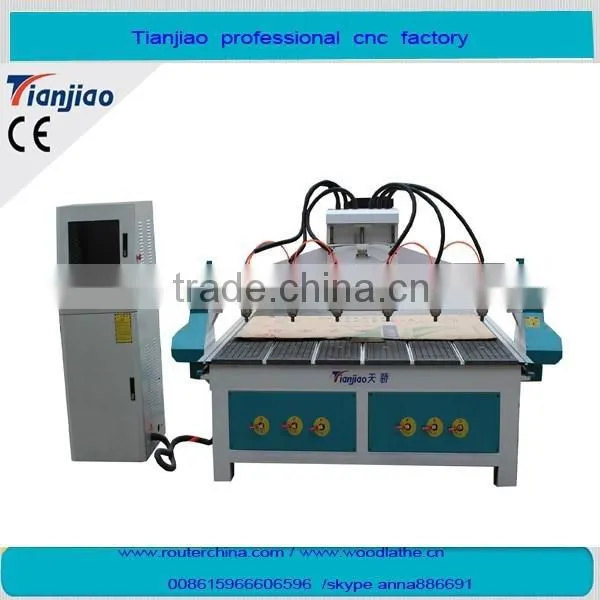

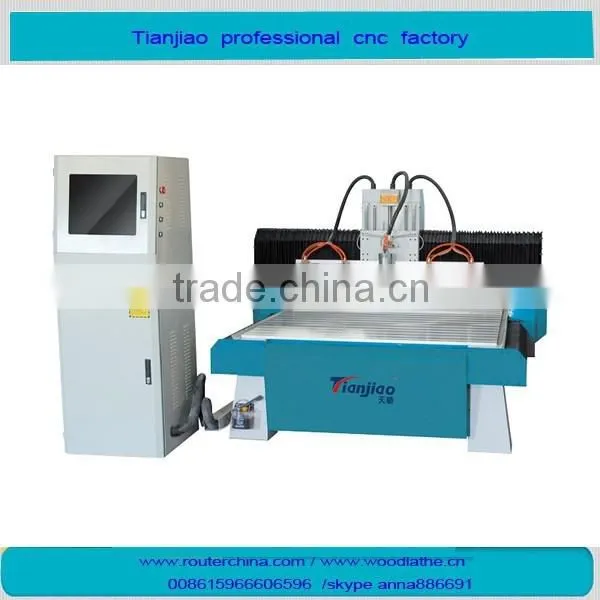

wood cnc carving machine with 8 spindle /12 spindle for sale
we are looking for agent all over the world and we can accept OEM production .
1. Main features:
1. Helical Racks and pinion:Compared with straight racks, helical racks run quieter , especially at high speeds, and increase higher load carrying capacity
2 Top brand guide rail from the world, HIWIN /PMI 20mm guide rail, with dust proof function and free of lubrication lifetime.
3 Delta or YASKAWA servo motors, high accuacry, long working life.
4 Taiwan Syntec control system with friendly operation interface, easy to learn.
5 Imported high precision ball screw with big lead.
6 T-slot table could use both vauum pump and clamps.
7 vacuum pump with big suction performance.
8 Table steel thickness is 4mm or 6mm ,8mm according the customers’choice.
2.Technical parameter
CNC Wood Router |
|
|
Configuration |
Parameter |
Option |
Model |
TJ 2430 |
6090/1212/1224/1390 etc. |
Working area |
2400*3000*300mm |
1300*2500*300 |
Spindle |
3.5KW |
6KW/9KW for option |
Lathe bed |
T slot heavy profile steel& Vacuum adsorption |
|
X-Y-Z Structure: |
X/Y axis:Rack and Pinion Z axis: Taiwan Ball screw |
|
Control system |
DSP |
NC-Studio,Mach3,Syntec for choose |
Cooling system |
Italy Air cooling |
Domastic water cooling |
Cutting speed |
32000mm/min |
According to the material |
Engraving speed |
25000mm/min |
|
Rail |
Taiwan HIWIN/PMI square linear guide rail |
|
Drive motor |
Japan servo motor/Step motor |
Yaskawa/ Leadshine860 /yako2811 |
Spindle speed |
0-24000rpm/min |
|
Software |
Type3/Artcam/Wentai/Ucancam/ |
|
Dust Collector Power |
3.5KW |
|
Vacuum pum |
7.5KW |
|
Inverter |
Delta inverter(5.5KW) |
FULING OR SIFANG |
Command |
G code |
|
Repositioning Accuracy |
0.05mm |
|
Voltage |
AC380V/3PH/50Hz |
|
Running Environment |
Temperature:0-45°C Humidity:5%-95% |
|
3.Suitable Materials and Industrial Applications
Furniture :wooden doors,cabinets,plate,office and wood furniture,tables,chairs,doors and window .
The wood products :voice box,game cabinets,computer tables,sewing machines table,instrument.
Plate processing :insulation parts,plastic chemical components,PCB,inner body of car,bowling tracks,stairs,anti-bate board,epoxy resin,ABS,PP,PE,and other carbon mixed compounds .
Decorate industry :Acrylic,PVC,MDF,artficial stone,organic glass,plastic and soft metals such as copper,aluminum plate engraving and milling process

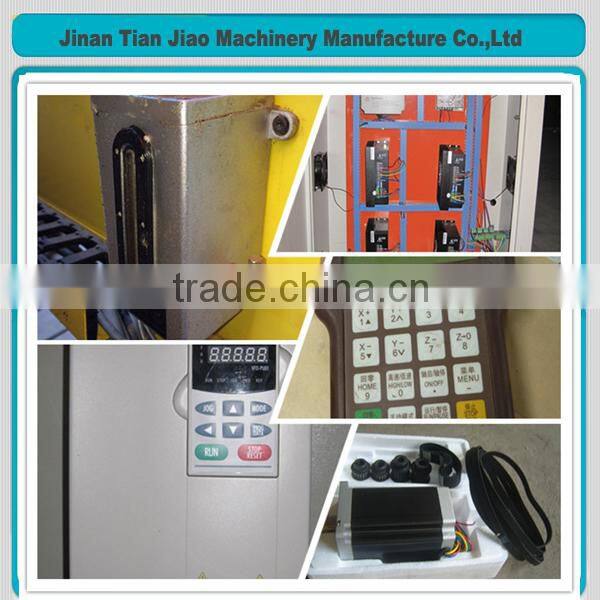

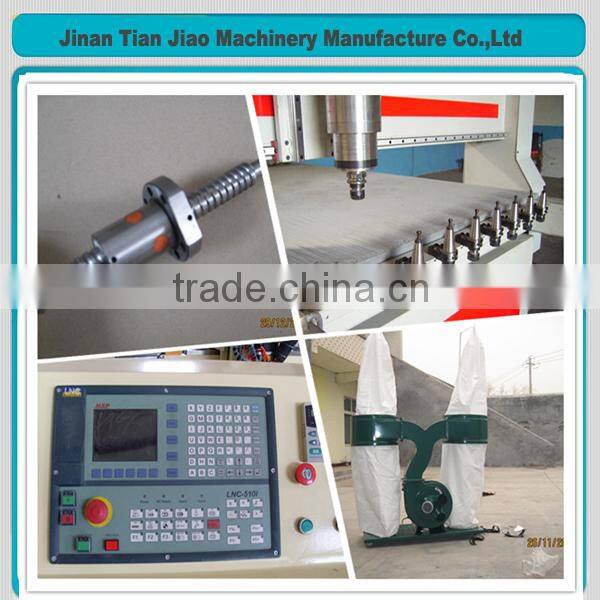

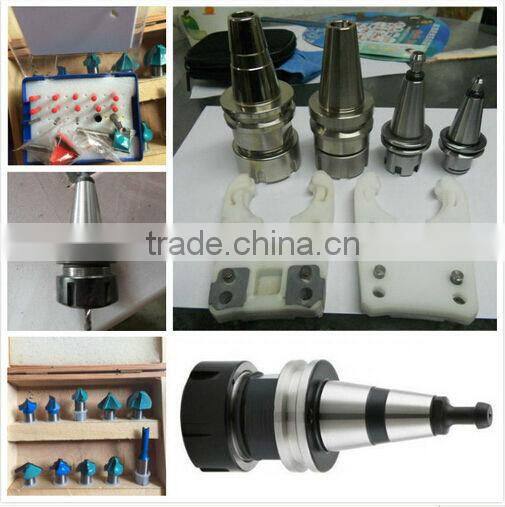

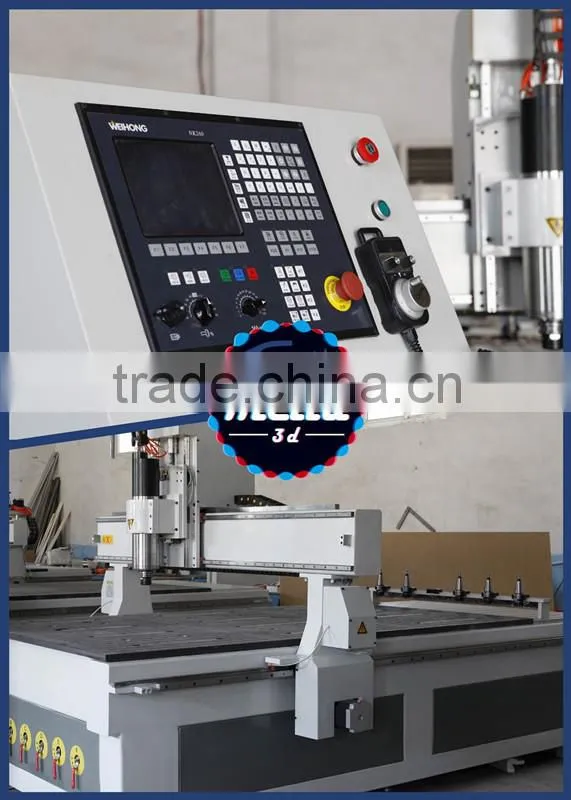

4.Main parts
5.Sample Processing Show

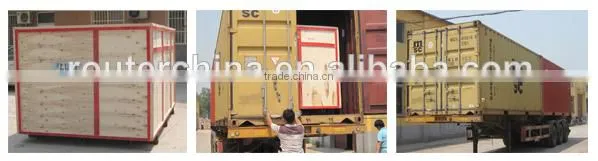

6.Packing Show:
7.fair and customer show
8.After-sale service
Two year free warranty for the whole machine , lifelong maintenance.
Customer response service time within 12 hours.
After the expiry of the warranty , we continue supply life-long maintenance services.
After the expiry of the warranty , still to provide a wide range of software and hardware support , enjoy free lifelong upgrades . And supply the parts at agent price .

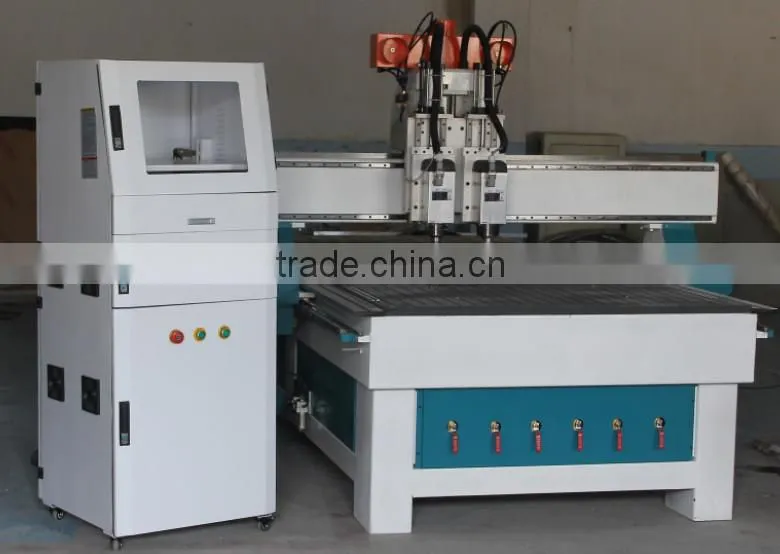

9. our promotion cnc router this month
3KW Water cooled spindle , vacuum pump table . Ncstudio control .working area 1300*2500mm*200mm
10.Question: |
Q1.What control system it use ?
DSP control system
Q2.Which kind of machine is more suit for me?
It is according the material and processing thickness and the working area .
Q3.How to support me if i don't know how to use it?
free training within the warranty by tel and mail or skype. We also can dispatch our
technician to customer’s company to provide training and support if customer agree
the air ticket and hotel.
Q4.How transport?
By sea
11.Other products
12. contact
skype anna886691
Tel 8615966606596
