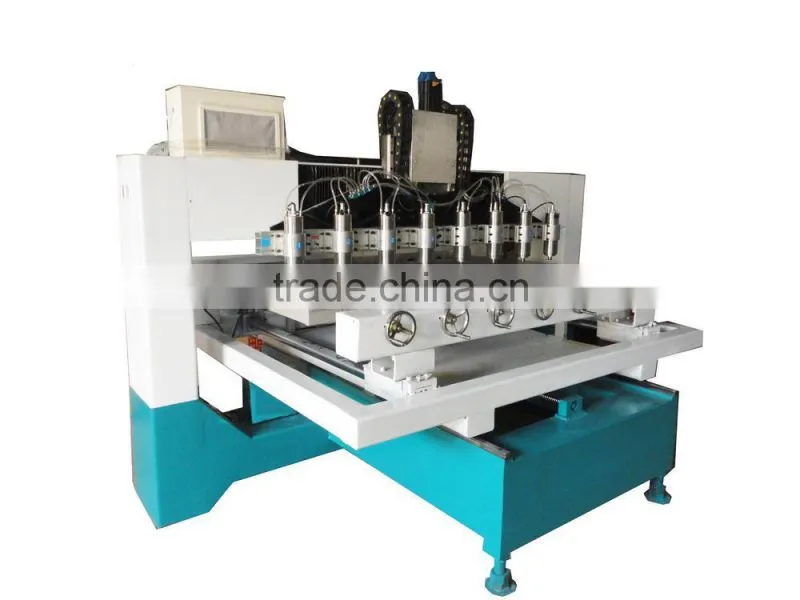

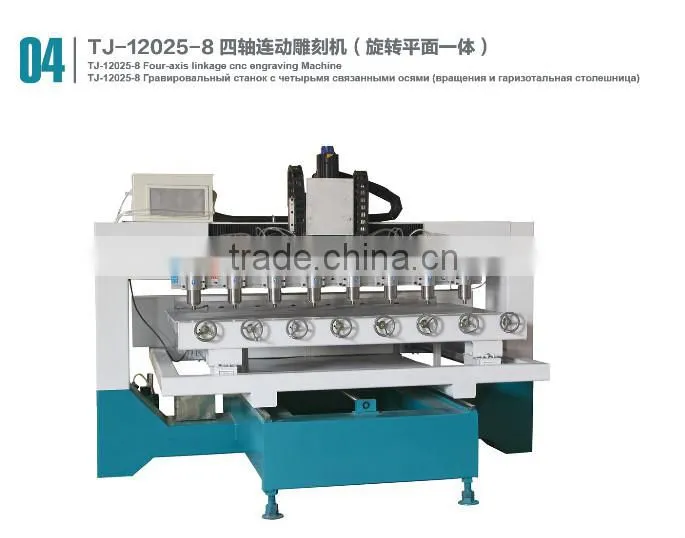

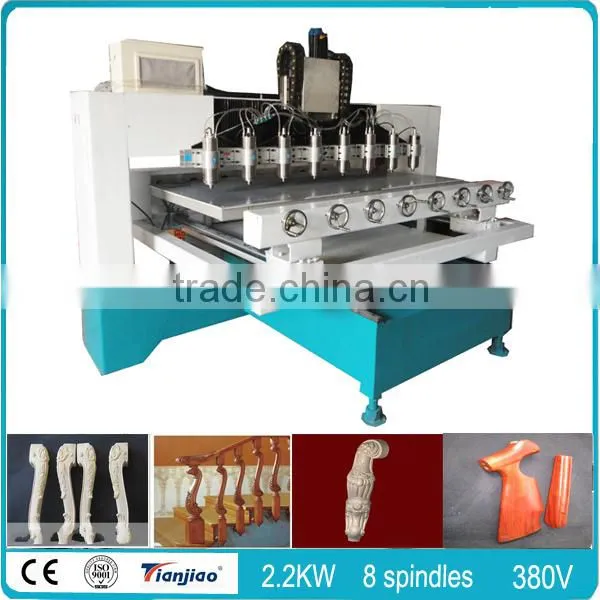

gunstock making 4 axis cnc router
|
|
Jinan Tian Jiao Machinery Manufacture CO.,Ltd. ADD: NO.8 YUHUA Road Fujia Industrial Park Licheng District Jinan Contact person: Jane Yao Mobile phone:0086-18678779570 Skype: jane_CHINA87 |
Advantage :
1: working length up to 1250 mm , suit for mostly material work needed
2: cast steel machine structure , guarantee the machine stability
3: 2.2KW constant power water cooling spindle , guarantee the engraving power
4: 8 spindles can work at the same time , so higher efficiency .
5: YASKAWA servo motor 1.3KW , guarantee working precision , have no loose step situation
6: 32D ball screw driver type

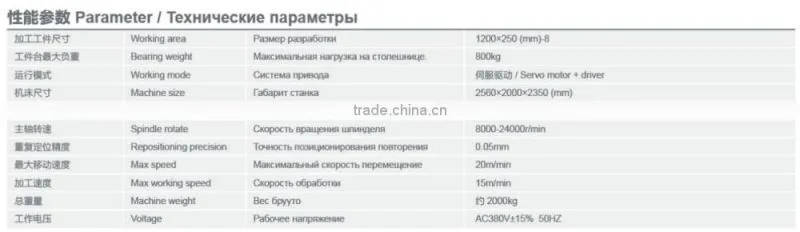

Technical paraments
Machine model |
TJ 12025 |
XY working area |
1200*200 mm |
Z working area |
300 mm |
Table size |
1600*3100 mm |
Max. speed |
60 m/min |
Max. working speed |
30 m/min |
Working delicacy |
0.05 mm |
Table |
movable table |
Command |
G code*u00* mmg*plt |
Surrounding for software |
Windows98/2000/xp |
power |
AC380 3 phases |
Spindle |
2.2KW water cooling spindle x 8 |
Speed of spindle |
0-24000 rpm/min |
Work mode |
YASKAWA servo motor 1300 W |
Structure |
Steel structure, square orbit, ball screw |
Engraving software |
powermill |
Control software |
4 axis Ncstudio PM74A |

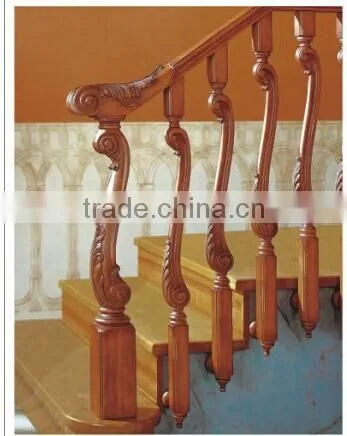

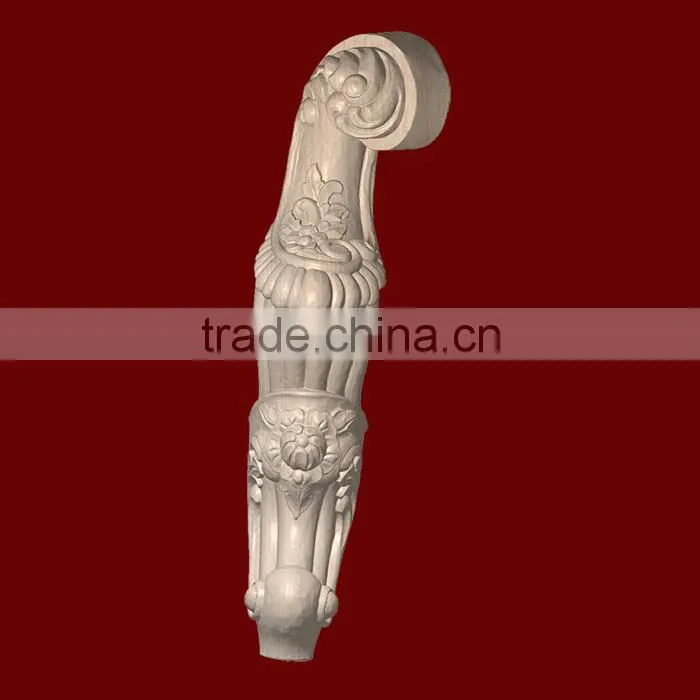

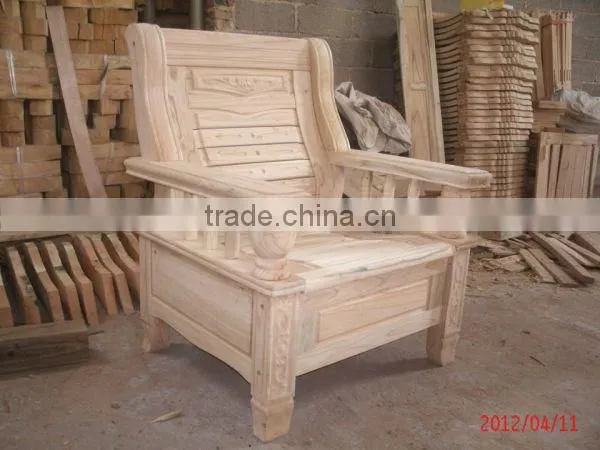

worked sample :
