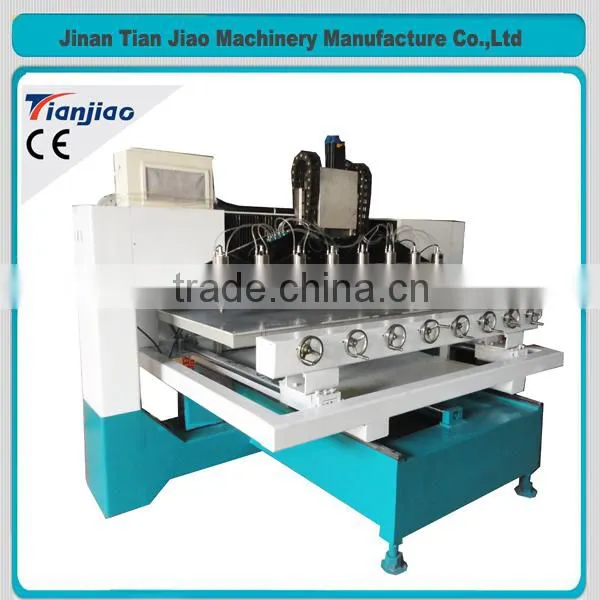

Jinan Tianjiao 4 axis 8 heads cnc router
| Jinan Tian Jiao Machinery Manufacture CO.,Ltd. ADD: NO.8 YUHUA Road Fujia Industrial Park Licheng District Jinan Contact person: Jane Yao Mobile phone:0086-18678779570 Skype: jane_CHINA87 |
Advantage :
1: working length up to 1250 mm , suit for mostly material work needed
2: cast steel machine structure , guarantee the machine stability
3: 2.2KW constant power water cooling spindle , guarantee the engraving power
4: 8 spindles can work at the same time , so higher efficiency .
5: YASKAWA servo motor 1.3KW , guarantee working precision , have no loose step situation
6: 32D ball screw driver type
Technical paraments
Machine model | TJ 12025 |
XY working area | 1200*200 mm |
Z working area | 300 mm |
Table size | 1600*3100 mm |
Max. speed | 60 m/min |
Max. working speed | 30 m/min |
Working delicacy | 0.05 mm |
Table | movable table |
Command | G code*u00* mmg*plt |
Surrounding for software | Windows98/2000/xp |
power | AC380 3 phases |
Spindle | 2.2KW water cooling spindle x 8 |
Speed of spindle | 0-24000 rpm/min |
Work mode | YASKAWA servo motor 1300 W |
Structure | Steel structure, square orbit, ball screw |
Engraving software | powermill |
Control software | 4 axis Ncstudio PM74A |
worked sample :
