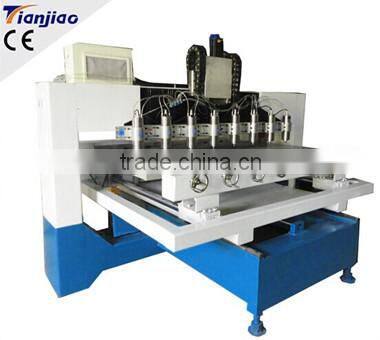

4 axis 8 spindles cnc wood router high efficiency wood router industrial wood router new type wood carving machine
- 100 Set / Sets per Month
- Qingdao/Shanghai/Tianjin/Shenzhen
- Credit Card
- engraving cnc router,1325 woodworking cnc router 1300*2500*200
- engraving and milling machine,1325 woodworking cnc router 1300*2500*200
- engraver router,1325 woodworking cnc router 1300*2500*200
- dsp control cnc machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router,1325 woodworking cnc router 1300*2500*200
Product Details
Condition: | New | CNC or Not: | CNC | Place of Origin: | Shandong, China |
Brand Name: | TIANJIAO | Model Number: | TJ 12025-8 | Voltage: | 380V |
Power(W): | 2.2KW spindle x 8 | Dimension(L*W*H): | 1900X2800X2100 mm | Weight: | 2200KGS |
Certification: | CE FDA ISO | Warranty: | one year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
4 axis cnc router machine/4th axis cnc router/excitech cnc router with 8 spindles TJ 12025-8

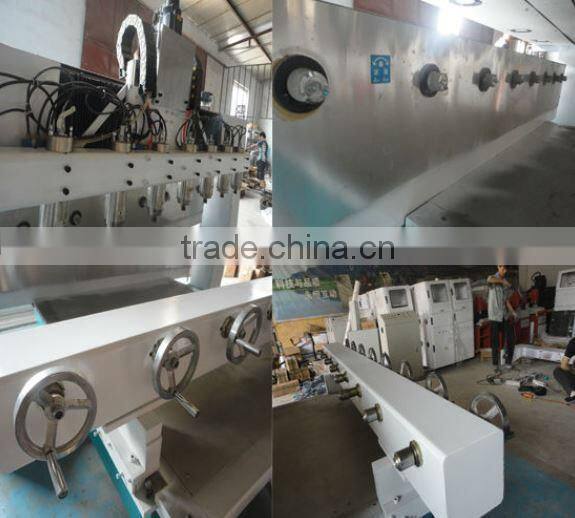

Machine equippment
1: working length up to 1250 mm , suit for mostly material work needed
2: cast steel machine structure , guarantee the machine stability
3: 2.2 kw constant power water cooling spindle, guarantee the engraving power.
4: 8 spindles can work at the same time , so higher efficiency .
5: YASKAWA servo motor 1.3KW , guarantee working precision , have no loose step situation
6: 32D ball screw driver type
Cast steel structure
32# HIWIN or AMT square orbit , 32 ball screw for X Y Z
4 axis Ncstudio control system , powermill software
2.2KW constant power water cooling spindle x 8
YASKAWA servo motor 1300 W
Movable table
20cutters( φ3.175 , φ6 , φ12.7), 3 collets
Technical paraments
Model: | TJ 12025-8 |
Structure: | Cast steel |
X, Y, Z working area: | 1200mm*250mm*200mm (Length*Diameter*Height) |
Transmission: | X,Y axis adopt rack and pinion HIWIN linear square guide rail ; Z axis adopt Taiwan TBI rolling ball screw transmission |
Reposition accuracy: | ±0.05mm |
Resolution: | ±0.02 mm |
Table: | Moveable table |
Drive system: | YASKAMA servo motor |
Max. rapid speed: | 60 m/min |
Max. working speed: | 30 m/min |
Tool magazine: | No magazine |
Inverter: | Best |
Spindle: | 2.2 KW water-cooled HSD spindle , 8 sets |
Spindle rotating speed: | 0- 24000 rpm |
Collet: | ER 25/ER 32 |
Cutter diameter: | 3.175mm, 4mm, 6mm, 12.7mm |
Transformer: | 1 set |
Power supply: | 1 set |
Control system: | 4 axis Ncstudio PM7A or SYNTEC |
Software compatibility: | Powermill/Type3 / Artcam / Artcut / Ucancam / JDpaint etc. |
Working voltage: | 220 V/380 V, 50HZ, 3-phase |
Command language: | G-code, ,*uoo, *mmg, *plt, ENG, HPGL |
Environment temperature: | 0-45 centigrade |
Relative humidity: | 30%-75% |
Maintenance: | Auto oil lubricating system |
Machine size : | 1900 x 2720 x 1900mm (without packing) 2000 x 2820x 2100mm (with packing) |
Weight: | Appr. 2200kg |
Sample
- All machines are debugged before shipment.
- Lifetime technical support and service.
- 24 hours on line or phone or by email technical support.
- We offer detailed machine manual, software manual, controller manual.
- Our factory make a vivid traing CD.
- Maintenance free of charge during lifespan.
- Free training course at our plant.
- Welcome to visit our factory, learn machine face to face.
Jinan Tian Jiao Machinery Manufacture Co., Ltd. specializes in developing and manufacturing Mechanical CNC routers, CNC Laser machines, Plasma cutting machines, cutting plotters and other machines. We provide global market with high quality CNC equipment. We are a leading company in this field, being confident in offering the best service and best quality.
With many years' hard work and perfect management system, we have classified our products into several categories: woodworking machines, advertising machines, ATC machines, stone working machines, plasma cutting machines, laser machines and plotters. We can also customize products and offer OEM service. Our products have been exported to many overseas countries, gaining good comments.
We hope to be your good, long-term and honest partner. Wish you can get joy and satisfaction from our products and service.
Q1: How to choose a suitable machine?
You can tell us the working piece material, size, and the request of machine function. We can
recommend the most suitable machine according to our experience.
Q2: This is the first time I buy the machine, is it easy to operate?
We can provide the operation manual or video for guiding. If it is hard for you learning, we can
also help you by “Team viewer”online, with telephone or Skype explain.
Q3: Can you customize the machine for me?
Yes, we provide customized solution, but considering the cost, we will recommend the
standard configuration to you first.
Q4: What is the guarantee? In case the machine break down?
The machine has 1 year guarantee, fail parts will be replaced for free if the machine under
“ normal operation”.
Q5: How about the documents after shipment?
We will send all the documents by air after shipment. Including packing list, commercial
invoice, B/L, and other certificates required by clients.
Q6: Delivery time?
For standard machine, it would be 7-10 working days; for non-standard machine, it would be
20 - 30 working days.
Q7: How is the payment?
Normally we accept T/T or L/C, if you like other terms, tell us in advance.
Q8: Do you arrange the shipment for me?
For FOB or CIF price, we will arrange shipment for you, for EXW price, you should arrange
the shipment by yourself.
Q9: How is the packing?
Step1: water proof wrapping film with foam protection in each corner.
Step2: Solid seaworthy wood box package with steel belt.
Step3: Save space as much as possible for container loading.
