Specifications
CO2 Laser Engraving Cutting Machine Engraver 40wwith muliti function,can make stamp and also can engrave.flat or cylinder
CO2 Laser Engraving Cutting Machine Engraver 40w
CO2 Laser Type CNC engraving machine
Jinan Tian Jiao Machinery Manufacture Co.,Ltd. is specialized in developing and manufacturing Mechanical CNC router (woodworking router, advertising router, stone engraving router), CNC Laser machine, Plasma cutting machine, cutting plotters, metal mould engraving machine and other cnc machines. We supply global market the high quality CNC equipments. We are leading company in this field and being confident in offerring the best service and best quality.
Brief introduction:
TJ340 laser engraving and cutting machine is used specially for the nonmetal art crafts, gifts and the engraving of bamboo products. The mechanical structure of the machine is strong. The electrical ability is stable, the engraving speed is high, and the precision is good. The machine can engrave beautiful pictures, peoples’ photos on the surface of many materials of different size of materials. It can also engrave many signs, marks.
CO2 Laser Engraving Cutting Machine Engraver 40w
Specification:
Name: |
TJ340 |
Processing area |
300*400mm |
Laser power |
40W/50w |
Laser type: |
Co2 glass laser tube |
Dimension: |
1100mm*920mm*620mm |
Engraving speed |
1-6000mm/min |
Cutting speed |
1-1000mm/min |
Cutting thickness |
0-20 Plexiglas (others determined by materials) |
Resolution ratio |
≤0.0125mm |
Interface: |
USB |
Minimum shaping character |
letter 0.8mm, Chinese 2mm |
Support graphic format |
DST, PLT, BMP, DXF |
Gross power |
1000W |
Driving mode: |
DC0.8A 24V stepper motor |
Cooling mode: |
Circulation water cooling |
Working voltage: |
AC220V/50HZ or 110V/60HZ or depend on customer |
Packing: |
wooden box |
Guarantee time: |
1 year, laser tube 3 months |
Operation: |
Video to tell customer how to operate the machine |
CO2 Laser Engraving Cutting Machine Engraver 40w
Applicable materials:
Non-metal materials such as acrylic, double color board, Plexiglas,
Common glass, bamboo and wood, rubber, marble, granite and tiles, leather cloth etc.
CO2 Laser Engraving Cutting Machine Engraver 40w
Applicable industries:
Advertising industry, Billboards, artistic gifts, crystal ornaments, paper-cut, bamboo
and wooden product, garment and leather, embroidery, decoration and upholster industry.
CO2 Laser Engraving Cutting Machine Engraver 40w
Functions
1. multi function type electronic lifting table, can engrave and cut one whole piece of seal material, more suitable for more kinds of nonmetallic seal engraving. With widely use.
2.DSP separate control system, with the advanced continue engraving after power off, prevent wasting material. Higher engraving speed, precision, can work off line. Easy operation and save computer resources.
3.Forcible water break protector, can avoid loss from no water in laser tube.
4.Support plt, bmp, dxf and more exporting type, can design any kinds of drawings and character
5.Exhaust smoke, dust removing, blowing protecting
6.Adopt famous laser system,laser power can be adjusted at any time, long lifespan.
CO2 Laser Engraving Cutting Machine Engraver 40w
Samples:
Flat engraving on rubber

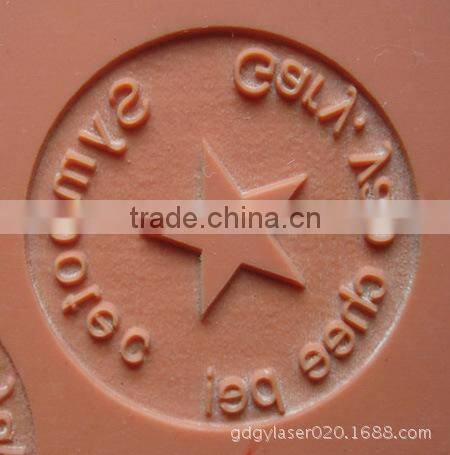

engrave rubber stamp
engrave on pen

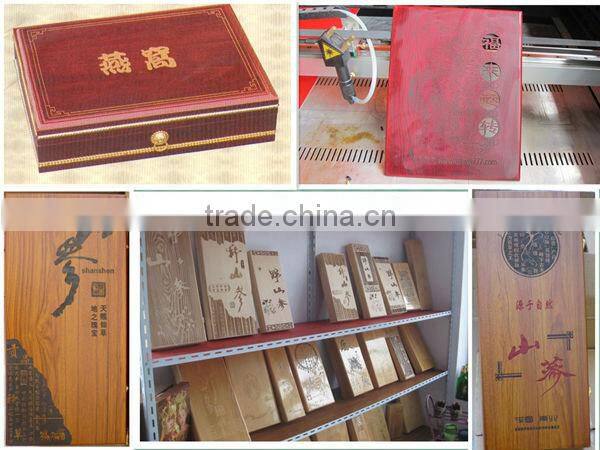

flat engrave on wood,bamboo
CO2 Laser Engraving Cutting Machine Engraver 40w

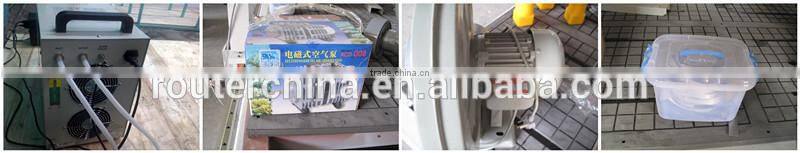

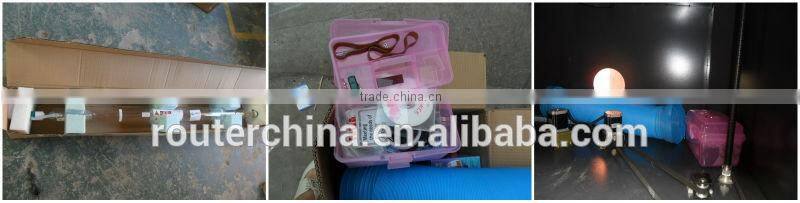

Parts follow with machine
Laser tube 1 piece(suggest spare parts) Software Pipe
Industrial chiller Air pump Exaust fan Tool box
(if without water pump)
CO2 Laser Engraving Cutting Machine Engraver 40w
purchasing guids:
1).flat engraving size
2).seal size you want to engrave
3).need to engrave on cylinder, which kind? there are 2 kinds rotary
4).need sparts parts except the parts follow with machine for free(3 reflect mirror,1 lens,1 laser tube,1 software)?
CO2 Laser Engraving Cutting Machine Engraver 40w
After sale service
1).whole machine for 1 year,except for consumable parts(mirrors,laser tube and power,belts)
2)during guratee term, can change new parts for you
exceed term,send you parts in cost price.
3)can provide on-site installation and debugging or study in our factory
4)24 hours on line for you
