Specifications
CO2 type sealed laser engraving cnc machine kits100w laser tube
honey comb and auto lifting table
engrave on hard w
CO2 type sealed laser engraving cnc machine kits

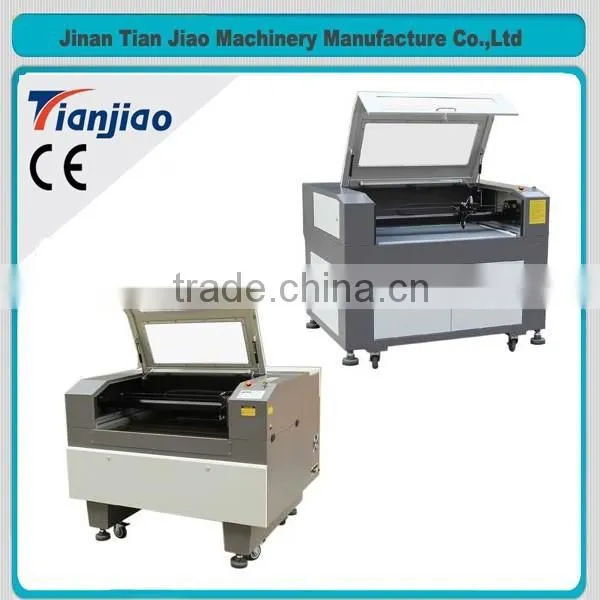

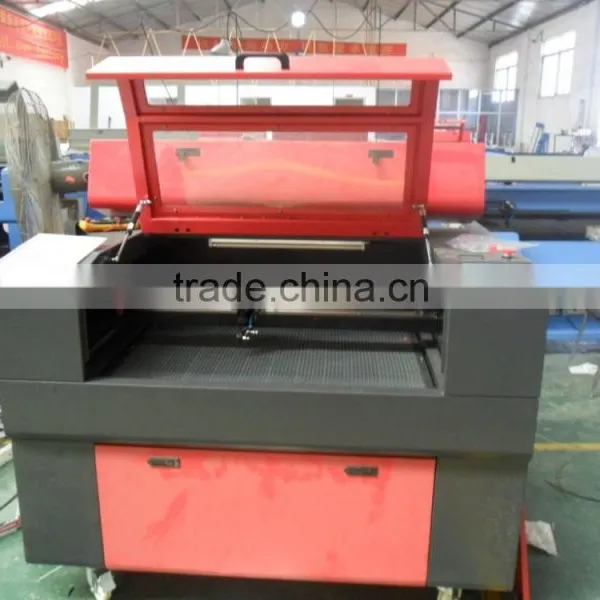

1. photos
2.Applications:
Arts and crafts, bamboo and wood products, advertisement and upholstery, cloth, leather, plate making, construction moulds Material: cloth, leather, rubber, bamboo strip, crystal, organic glass, ceramic tile, marble, thin wood, hardboard, bowlder, plastic and other non metal material.
3. configuration:
Item |
Data |
Note |
Laser tube power |
100w |
good engraving and cutting profect in long time |
Working area |
900*600mm |
|
Motor Drive |
stepper |
|
Speed control |
0-100% stepless control, |
can setup different powers according to different colors |
Max. speed |
1000MM/S |
|
Software |
WENTAI, CORELDRAW, PHOTOSHOP |
|
Laser tube cooling |
water cooling |
|
Min character |
Chinese: 2mm Letter:1mm |
|
Repositioning accuracy |
±0.01mm |
|
Power supply |
AC200V±10%50HZ |
|
Total power |
:<1000W |
|
Working temperature |
0-45 degree |
|
Working humidity |
5%-95%(without condensed water) |
|
Figure form |
BMP, PLT, DXF, DST,AI |
|
size |
190*135*106cm |
|
weight |
300kgs |
|
4. parts:
cooler CW3000 air pump blower control box
RECI laser tube software filter pipe
Optionals:
knife table auto moving table autolifting table rotary
5.sample
engrave on bamboo
cut acrylic
6. service
One year free gurantee for the whole machine , lifelong technology support.
Customer response service time within 12 hours.
After gurantee term, we continue supply life-long maintenance services.
After gurantee term , still to provide a wide range of software and hardware support , enjoy free lifelong upgrades . And supply the parts at agent price .
7. Questions:
Can I engrave all types of wood?
The laser works extremely well with all types of woods, from maple to exotic hardwoods. Each displays a different quality when engraved. While a maple plaque may give you a lighter engraving, cherry can give you very rich, dark colors where engraved. Trying out different woods can give you very different effects with the same image.
What size of wood piece can I engrave?
Laser systems range in capacity from 16" x 12" (406 x 305 mm) to 40" x 28" (1016 x 711 mm). If you can fit your product in the engraving table, you can engrave your item!
Is there a lot of programming involved?
Unlike CNC machines that require extensive programming, our CO2 lasers operate more like printers. Use any graphic software you like, import your image, and print it to the laser. It's incredibly easy to set up any custom job in minutes.
Can I get an laser engraved and cut sample?
Please contact me on line or send me email or call me:
Cell: 86 15866646109
Skype: xihong61
QQ: 2417071086
