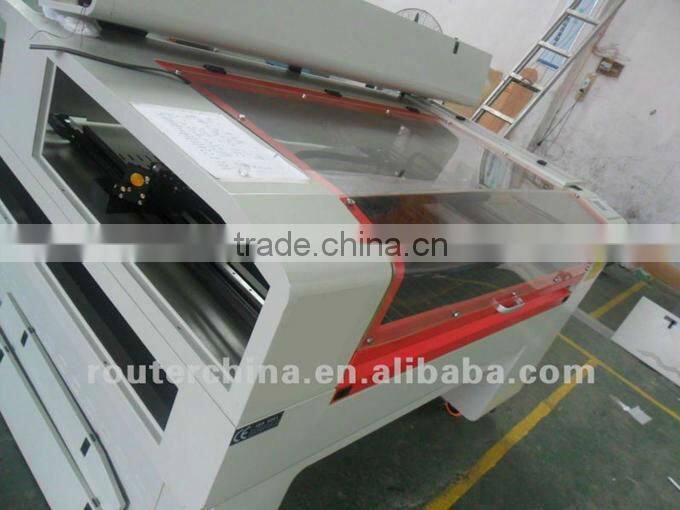

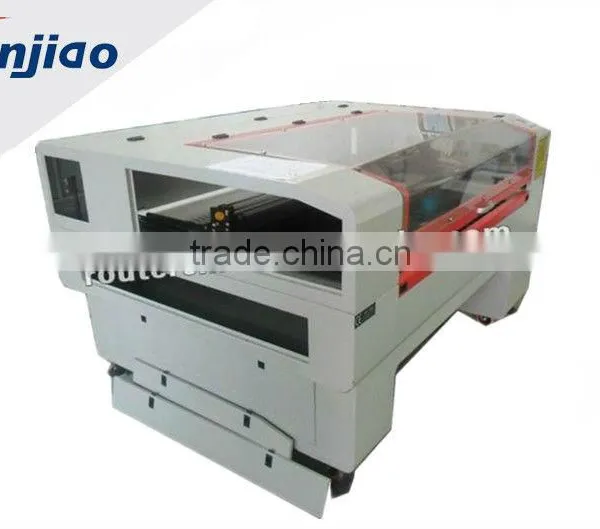

co2 laser stone shadow carving machine TJ-1280
Applications:
Applicable materials: wood, bamboo, jade, marble, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials.
Applicable industries: advertisement, arts and crafts, leather, toys, garments, model , building upholster, computerized embroidery and clipping, packaging and paper industry.
Features:
1. The optimizing and decent new design, good performance, low noise.
2. High quality tapes for transmission , equipingspeed-down structure, ensuring high quality and high stability engraving cutting.
3. Imported Singapore lens and Taiwan HIWIN square orbit, high precision, long lifetime.
4. Beijing RECI laser power can be optional.
Techinicl parameters:
Model |
TJ-1280 |
Working area |
1200mm*800mm |
Equipment Dimension |
1650mm*1150mm*970mm |
Laser power |
60W/80W/100W |
Laser type |
CO2 sealed laser tube,water-cooled |
Orbit |
Square linear orbit( Taiwan HIWIN) |
Lens |
Molybdenum materials (imported from Singapore) |
Driving system |
3 phases stepper motor |
Engraving speed |
0-60000mm/min (0-2362 inch/min) |
Cutting speed |
0-36000mm/min |
Resetting positioning accuracy |
0.1mm |
Minimum shaping character |
English 1x1mm |
Power supply |
220V/50HZ , 110V/60HZ |
Graphic format supported |
BMP, PLT, DST, DXF, AI |
Software supported |
CorelDraw, PhotoShop, AutoCAD,TAJIMA |
Control system |
DSP control system |
Auxiliary equipments |
Exhaust-fans, air-exhaust pipe |
Operating temperature |
0 - 45 ° C |
Operating humidity |
5 - 95% |
Net Weight |
350kg |

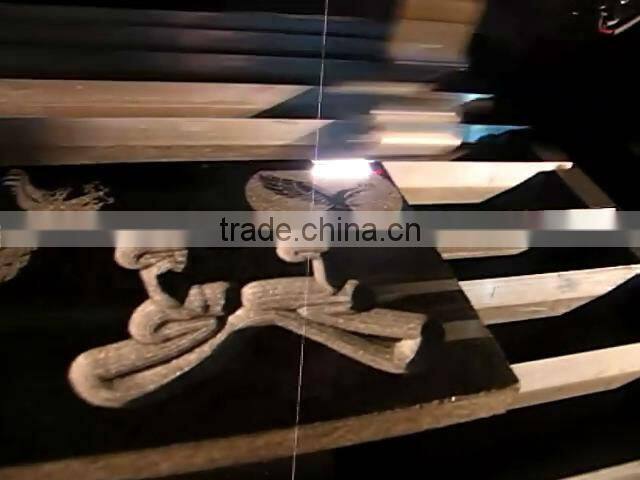

Samples:

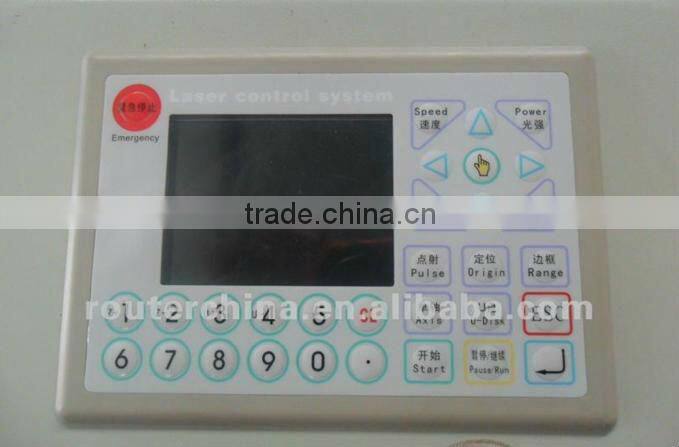

New type control panel

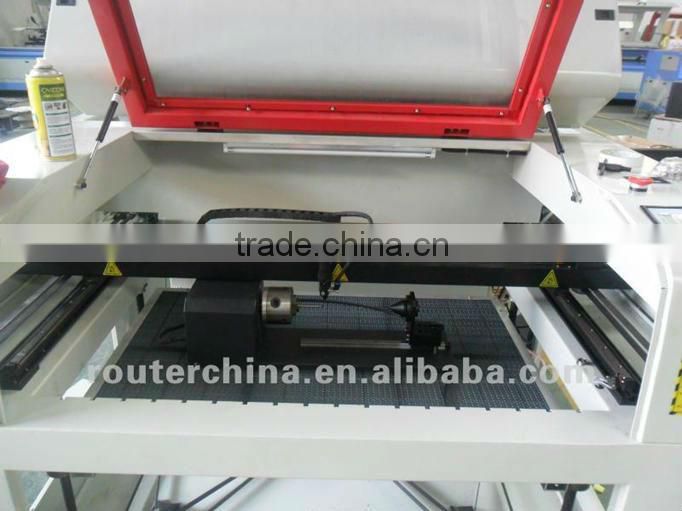

Can add rotary equipment
New type cover, whole acrylic cover to avoid the fire

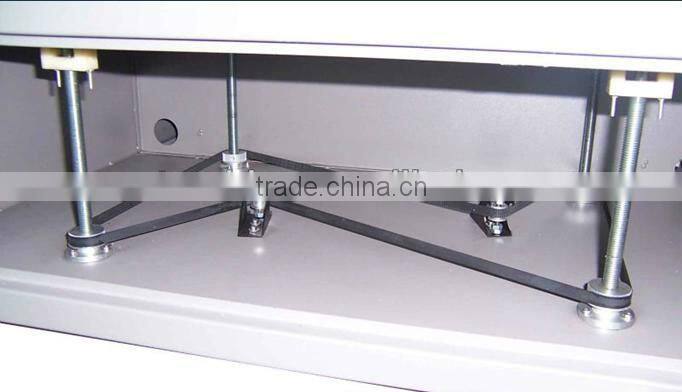

Can add lifting platform

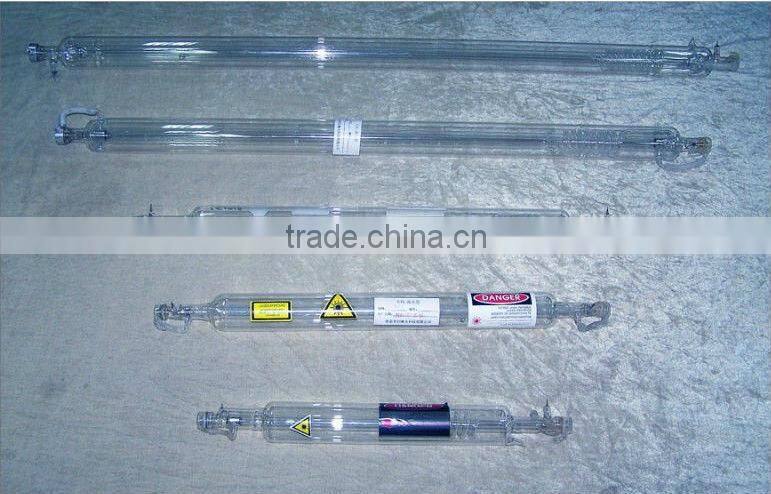

Laser tubes:

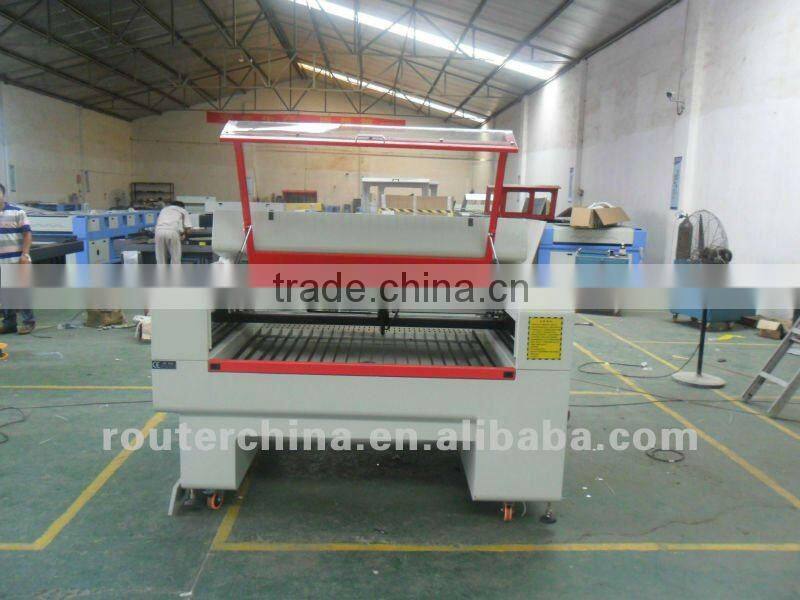

Workshop 1
