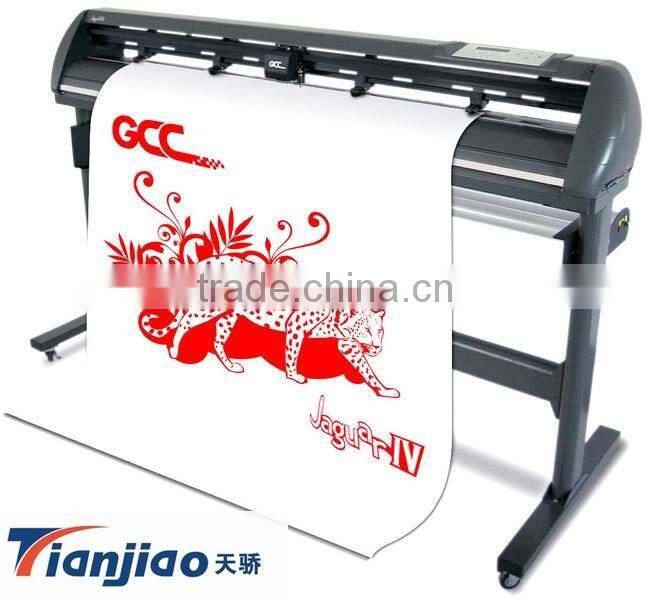

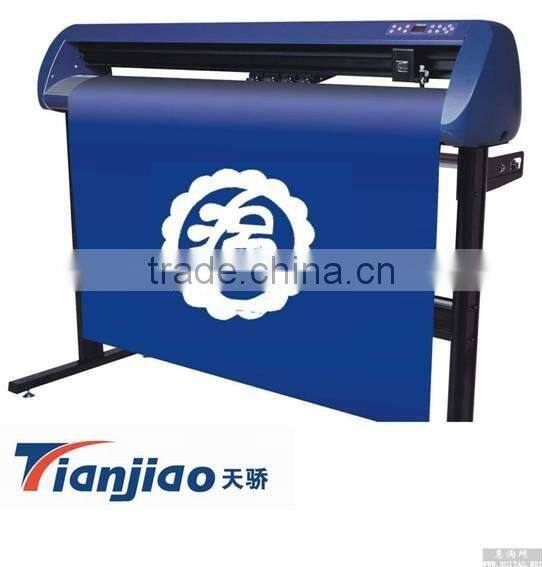

Vinyl Plotter/cuttng Plotter /paper Cutting Machine TJ1780

Name: Vinyl Plotter/cuttng Plotter /paper Cutting Machine TJ1780
Brand: TIANJIAO
SKU: 124352529
Availability: InStock

US$ 492 - 520 MOQ: 1 Set

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

TIANJIAO

Model Number:

TJ1780

Jinan Tian Jiao Machinery Manufacture Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qindao China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name TIANJIAO

Model Number TJ1780

Voltage 220V

Cache Capacity 4M

Paper Feed Width 1780mm

Cutter Pressure 500g

Cutting Width 1680mm

Cutting Speed 400mm/s

Driver stepper motor and driver

Cutting Length 6.3m

Repeat Cutting yes

Specifications

vinyl plotter
can cut paper,vinyl,plastic, sticker or shoes engraving and so on,
USB,serial paralled interface

1. Photos

2. Features

1. serial paralled interface,large memory, fast offline.

2. softland, small noise, long life of lifespan.

3. high speed, unfailing paper advance.

4. reverse paper delivery.

5. large screen Chinese characters LCD.

6. the lastest fractionize electrocircuit of the USA

7. high quality aluminium alloy roller.

8. emergency stop function,RAM detection function, repeated output function.

3. Technique Specification

PerformanceModel	LY1780
Width of scribing	1660mm
Max width of the paper	1780mm
Max speed	500mm/s
Pressure of engraving tool	400g
Buffer memory	4M
State indication	Chinese and English
Change the speed and pressure in the running	can
Interface	Serial-port
Power	AC100/250V
Language of plot	HPGL
Repeated engraving	Yes
Working delicacy	0.0254mm/step
Positoning accuracy	0.1mm
Frame of machine	Yes
Frame of paper	Single rolls
Drive motor	Stepper
