round ATC (automatic tool change ) HSD 9KW spindle syntec control wood cnc router
1. Brief Introduction:
ATC CNC Router is widely used in furniture, decoration, industrial equipment parts, music instruments, molds, arts &crafts, building models, and advertisement engraving and cutting.

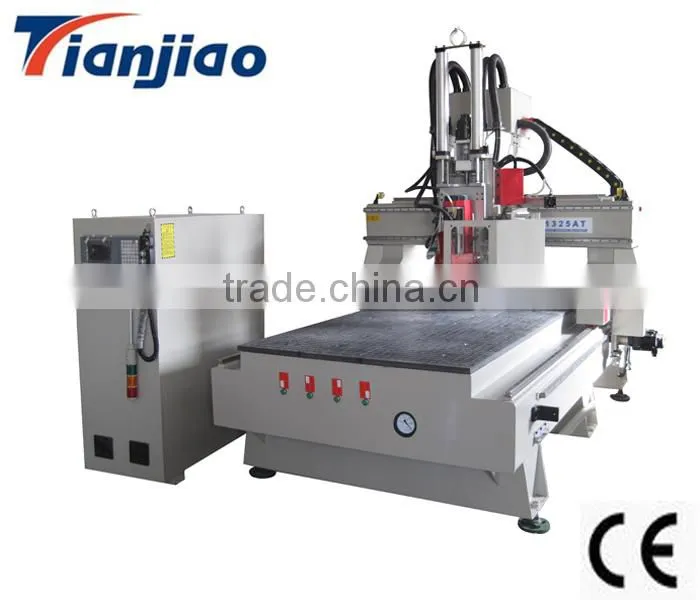

2.Picture of Wood Carving CNC Machine Price:
3.Technical Parameters:
Name |
CNC-WR1224 |
Working Area |
1200*2400*230mm |
Max traveling speed |
60000mm/min |
Max engraving speed |
25000mm/min |
Accuracy |
<0.05/300mm |
Fixing method |
Table and T-slot |
Spindle motor |
Italy HSD 9KW Air cooling |
Spindle speed |
6000-24000rpm |
Tool Magazine and tools NO. |
Rotary tool changer, 8 Tools |
Tool diameter |
2-20 |
Transmission |
X,Y axis high precision rack gears, Z axis imported ball screw |
X,Y,Z guide rails |
Square Rail |

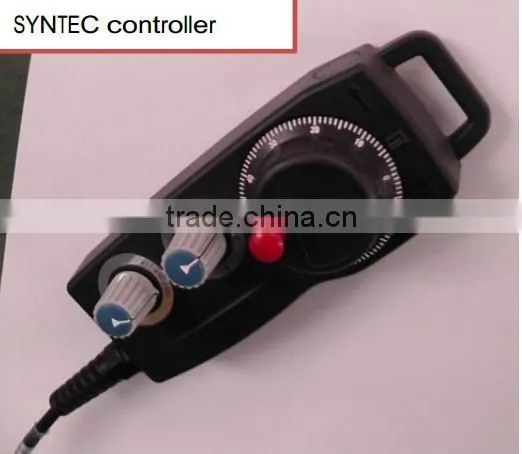

Control system |
Syntec control system from Taiwan |

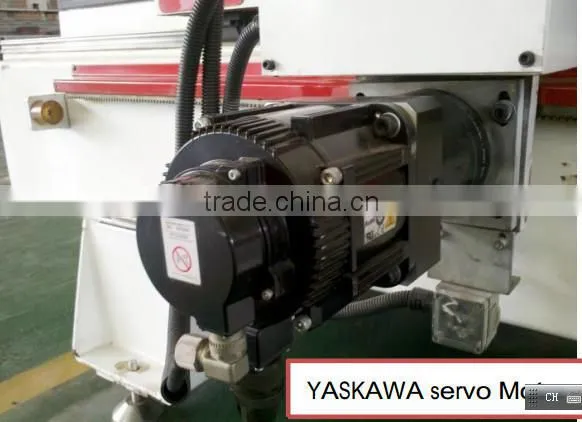

Motor/Driver |
Japan Yaskawa servo system 850W |
Working voltage |
AC380V/50HZ |
Warranty |
12 Months |
Supported Format and Software |
PLT,DST,DXF,BMP, AI ; Support AutoCAD, Corel Draw output directly |
4.Features:
1)The bed lathe is welded by thick wall seamless cast steel. It is analyzed and designed with FEA and worktable is more reasonable and stable.
2)All of the bearings, ball screw, linear square rails, etc are lubricated and maintained automatically by the concentrate control system of the machine.
3)Vcuum working table is divided into 6 individual zones with seperate switch controller .
4)Z axis is equipped with pneumatic balance system, which is a closed circle so as to realize minimum energy consumption during working.

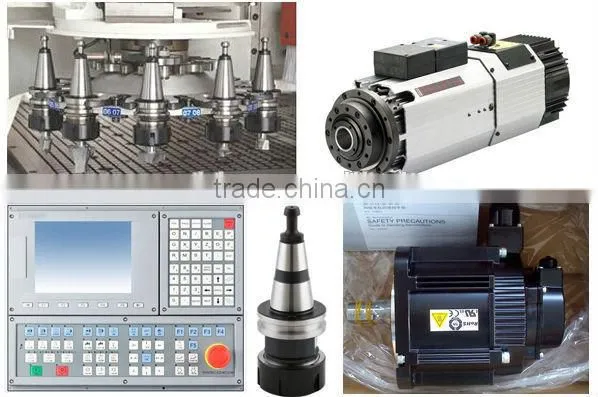

5.Main parts:

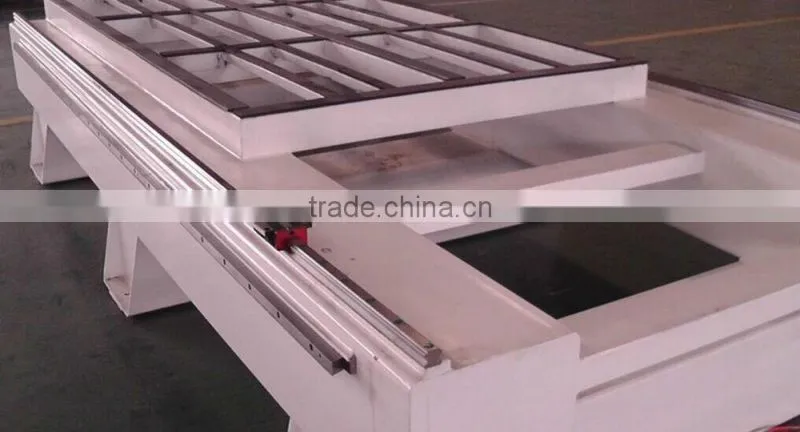

8mm thickness heavy square tube welded
6.Applicable Industry and Materials:
1).Furniture: wooden doors, cabinets, plates, office and wood furniture, tables, chairs, windows.
2).The wood products: voice box, game cabinets,tables, sewing machines table, instruments.
3).Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, antibate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
4).Decoration industry: Acrylic, PVC, MDF, artificial stones, organic glass, plastic and soft metals such as copper, aluminum plate engraving.
7.Samples:

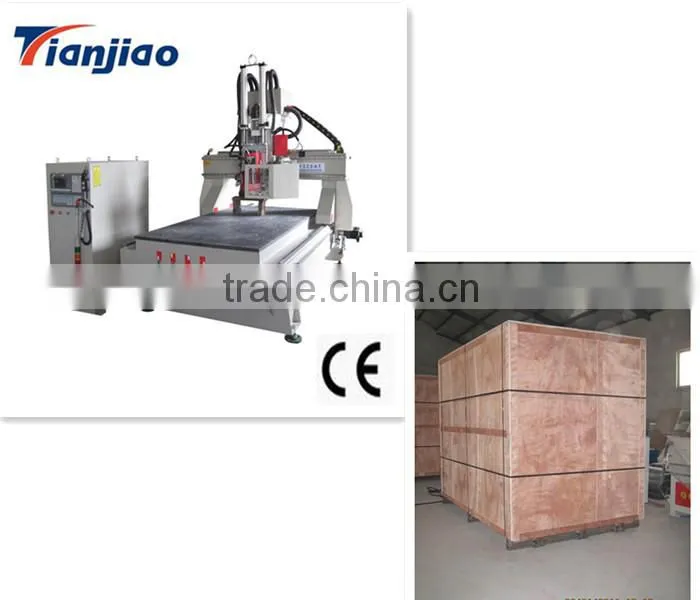

8.Packing Show:
9.Factory Show:
10.Why do clients choose us?
1) At the same quality grade, our price is better:
a) Since we are manufacturer, we produce machines on large scale. Our profit mainly comes from order quantity, not from unit machine.
b) We own advanced production equipment, high efficiency and low production cost, so we can provide you with the best price for machines.
2) At the same price level, our service is better:
a) Before purchasing, please feel free to talk with us through trademanager message tool. Our service staff will recommend the proper model to fit your demand best.
11. Contact
skype anna886691
whatsapp 008615966606596
wechat anna88669
Your Dream , Our Pursuit !!
