Hydraulic Super Paper Dish Making Machine ZDJ-400
US$ 1 - 8,999
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Paper Folding Machine
Computerized:
Yes
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality Plastic Plate MachineUS$ 6,800 - 8,888MOQ: 1 Set -
First Choice Paper Plate MachineUS$ 8,500 - 9,500MOQ: 1 Set
-
RZ-CQ-850 Punching and Die Cutting MachineNegotiableMOQ: 1 Set
-
Full Automatic High Speed Paper Plate MachineUS$ 7,800 - 12,000MOQ: 1 Set
-
High Speed Paper Plate MachineUS$ 6,500 - 7,500MOQ: 1 Set
Condition
New
Type
Paper Folding Machine
Computerized
Yes
Place of Origin
Zhejiang, China
Brand Name
BEST
Model Number
ZDJ-400S
Voltage
380V
Power(W)
9kw
Dimension(L*W*H)
1880 x 1140 x 1980 mm
Weight
1500kg
Certification
CE
Warranty
1year
After-sales Service Provided
Engineers available to service machinery overseas

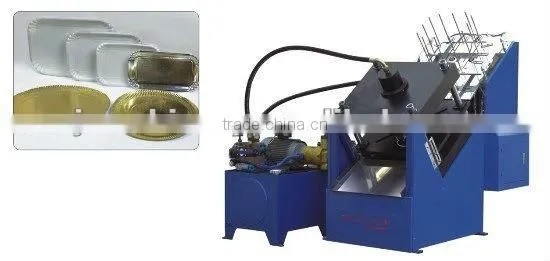

High speed automatic Hydraulic Super Paper Plate making Machine, Hydraulic Super Paper Dish Making Machine ZDJ-400

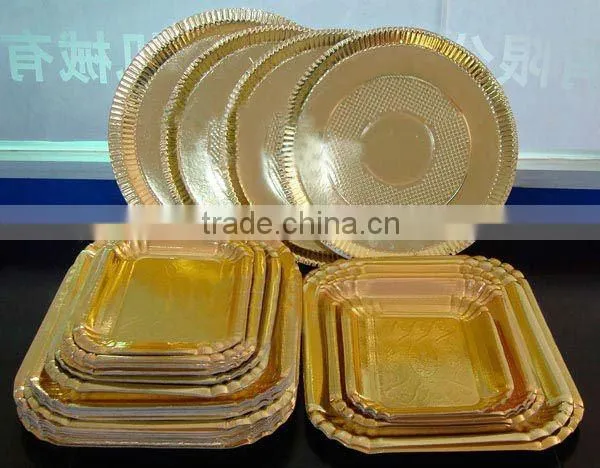

ZDJ-400 Hydraulic Super Paper Plate Machine is designed against the customer requirement. It is used to make super size and heavy paper material plate/tray.
The machine size and the oil hydraulic pressure are designed against the plate size, plate pattern shape, paper thickness, etc.

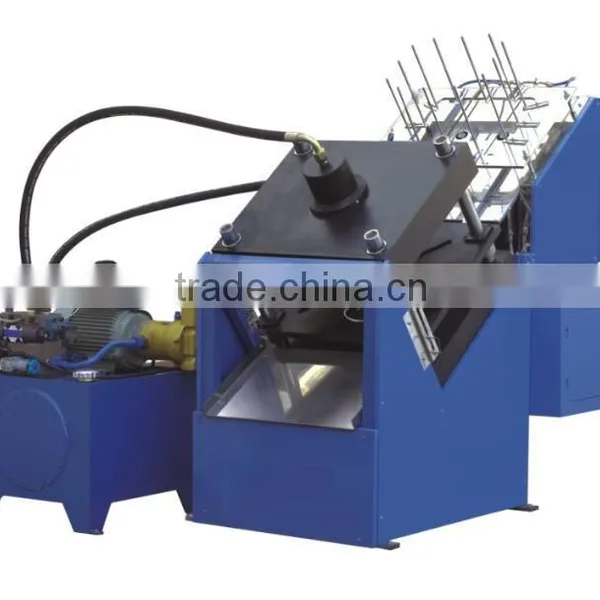

The Above photo is a 30Ton oil pressure machine (It is used to make paper thickness up to 1600gsm). Against the paper thickness, can select the hydraulic pressure, 20Ton, 30Ton, 50Ton, etc.
Hydraulic Super Paper Plate Machine Technical Specification :
- HS. Code: 8441309000
- Paper Plate Size : Super Size (mold exchangeable);
- Raw Material : Paper/paperboard, Aluminum foil coated paper, One side PE coated paper or other;
- Suitable paper weight : Against the buyer requirement;
- Rated Productivity : 8--15 piece/minute (only one working stations);
- Total Power : 9 KW;
- Power Source : 220V 50Hz or other required;
- Total Weight : 1500 Kg;
- Package Size (L x W x H) : 1880 x 1140 x 1980 mm, 1140 x 980 x 1210 mm;
- Air source : Working pressure 0.8Mpa, Air out-put 0.6 m3/minute (need to buy Air compressor);
- Machine design against the buyer's plate size, paper thickness.
