paper dish forming machine

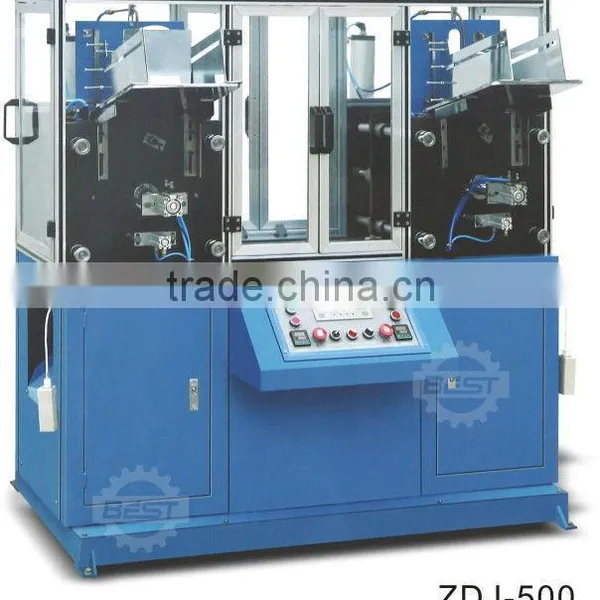

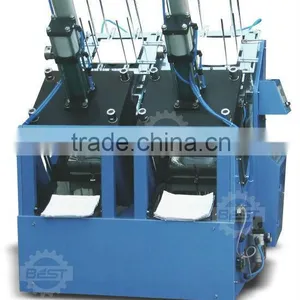

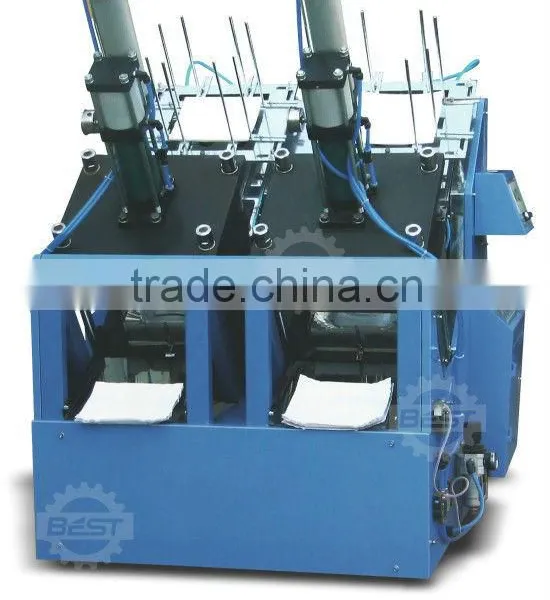

Model ZDJ Medium-speed Automatic Paper Plate Forming Machine was developed and researched in order to meet the market requirement. It has integrated the pneumatic and the mechanic technologies, which makes it has the functions of faster working speed, higher safety-performance, safer operation and easier maintenance than the conventional one.
Model ZDJ medium-speed paper plate machine adopts high efficient pressurizing air cylinder, so that the Max. pressure is 5T(can be ordered 10ton or bigger) ,Compared with the oil pressure one, it has the advantages of high speed, environment protection and humanism desin .
Standard ZDJ Paper plate machine has two working stations, each station install one set of mold and each station has separately PLC digital control and electric control.

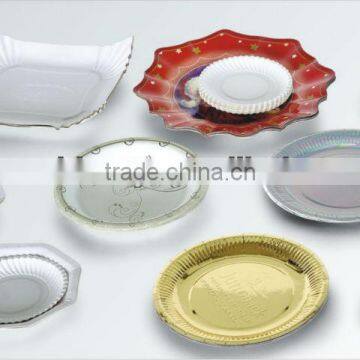

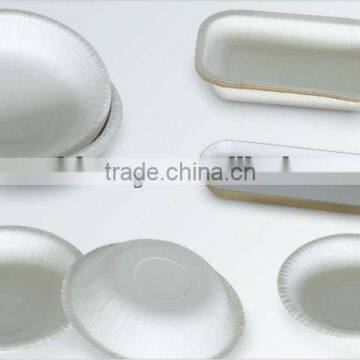

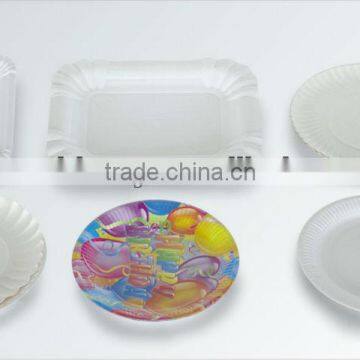

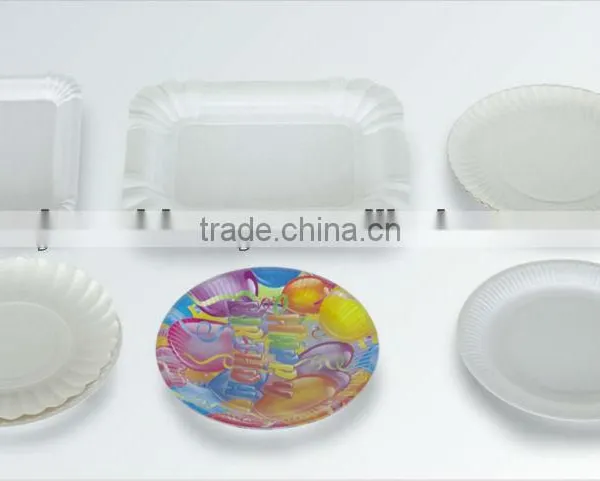

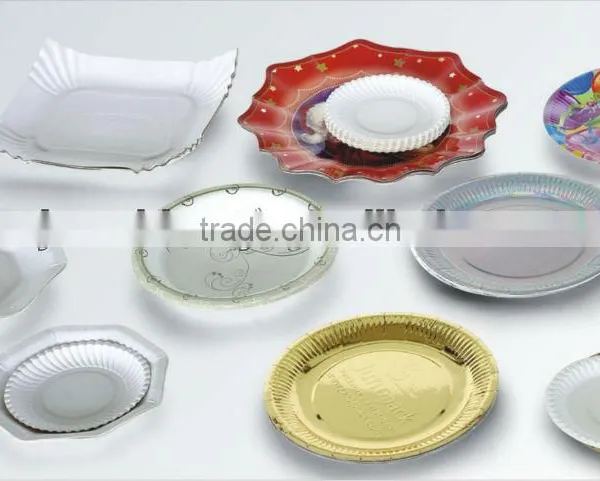

It is widely applied to make paper plate (or aluminum foil laminated paper plate) in round (rectangle, square, circular, or irregular) shape. Machine speed changes against the material (paper) thickness and the plate size.
Model |
ZDJ-400 |
ZDJ-500 |
ZDJ-400P |
ZDJ-400H |
|
HS. Code
|
8441309000 |
8441309000 |
8441309000 |
8441309000 |
|
Plate Size
|
5--11 inch |
5--11 inch |
Supper size |
Supper size |
Raw Material |
Paper |
Paper |
Paperboard |
Paperboard 500-1500g |
Suitable paper weight |
100g-500 gsm |
100g-500 gsm |
500-1500 gsm |
500-1500 gsm |
Rated Productivity |
60---80 pcs / Min |
80---100 pcs / Min |
8-20pcs/Min |
8-15pcs/Min |
Power |
3kw |
3kw |
3kw |
9kw |
Power Source |
220V 50Hz |
220V 50Hz |
220V50Hz |
380V 50Hz |
Machine weight |
600kg |
600kg |
1000kg |
1500kg |
Working Air Source |
0.8MPa, Air Out-put: 1.5m3/min |
0.5MPa, Air Out-put: 0.8m3/min |
0.8MPa, Air Out-put: 1.5m3/min |
0.8MPa, Air Out-put: 0.6m3/min |
PACKING SIZE |
1430 x 1600 x 1900 mm |
1600 x 1600 x 1700 mm |
1980 x 1120 x 2170 mm |
1880 x 1140 x 1980 mm |
|
|
|
|
|
