Home > Products > Paper Cup Machine Production Line > Automatic High-Speed Paper Cup Machine, Paper Cup Forming Machine
Automatic High-Speed Paper Cup Machine, Paper Cup Forming Machine
- 900 Set / Sets per Month
- Ningbo
- T/T L/C D/P D/A Credit Card
- Semi Automatic Packing Line , Toilet Roll Packaging Machine Price
- Reciprocating small egg tray machine apple tray machine
- 3600mm Multi Wire Fluting Paper Machine Production Line Made Paper in 110-250gsm
- Flanged propeller for slurry box agitator for pulping equipment
- Durable and sturdy spiral paper tube machine
- Durable and sturdy corner protectors
Product Details
Product Type: | Paper Cup Machine | Processing Type: | Paper Folding Machine | ||
Place of Origin: | Zhejiang, China | Brand Name: | BEST | Model Number: | JBZ |
Voltage: | 380V | Power(W): | 4KW | Dimension(L*W*H): | 2700*1300*1700MM |
Weight: | 1200KG | Certification: | Other, CE, CE | Warranty: | 1years |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

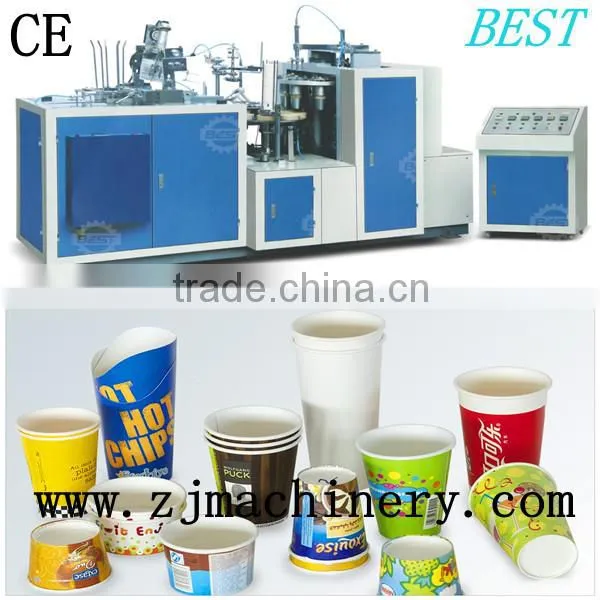

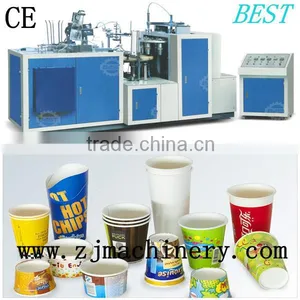

Equipment Name : Automatic High-Speed Paper Cup Machine
2.Description:
JBZ series paper cup forming machine is a multi-station automatic forming machinery, it is through the automatic paper
feeder (fan-shaped after printing paper), sealing (ultrasonic sealing paper cup wall or hot sealing ), oiling (top mouth
lubrication), red bottom (from roll paper automaticly cutting), heating, continuous process of knurling (bottom of the cup
seal), curling, and unloading cup collection, and a photoelectric detection, fault alarm, counting and other functions.It is
an ideal equipment for paper tea cups, paper coffee cups, advertising cups and market paper cups, ice cream paper cups
or other the disposable cone-shaped food paper containers.
JBZ series paper cup forming machine is easy to operate (a person for one machine), stable performance, small footprint,
high efficiency.It is a preferred venture projects.
3.Technical Specification :
Model | JBZ-A12 | JBZ-S12 | JBZ-S22 | JBZ-S32 |
HS. Code | 8441309000 | 8441309000 | 8441309000 | 8441309000 |
Paper Cup Size | 2.5--12oz | 2.5--12oz | 12-22 oz | 20-32 oz |
Raw Material
| 1side PE coated paper | 1side or 2side PE coated paper | 1side or 2side PE coated paper | 1side or 2side PE coated paper |
Suitable paper weight
| 135--250 gsm | 170-380 gsm | 170-380 gsm | 170-380 gsm |
Rated Productivity | 40---50 pcs / Min | 40---50 pcs / Min | 30-40pcs/Min | 30-40pcs/Min |
Power | 3.5kw | 4.5kw | 5kw | 5kw |
Power Source | 220V/380V 50Hz | 220V/380V 50Hz | 220V/380V 50Hz | 220V/380V 50Hz |
Machine weight | 1200kg | 1200kg | 1600kg | 1600kg |
Working Air Source | 0.4MPa, Air Out-put: 0.6m3/min | 0.4MPa, Air Out-put: 0.6m3/min | 0.4MPa, Air Out-put: 1m3/min | 0.4MPa, Air Out-put: 1m3/min |
PACKING SIZE | 2700 x 1240 x 1700 mm | 2700 x 1240 x 1700 mm | 3030 x 1300 x 2100 mm | 3030 x 1300 x 2100 mm |
Electric Control Box Size | 750 x 570 x 1070 mm | 750 x 570 x 1070 mm | 750 x 570 x 1070 mm | 750 x 570 x 1070 mm
|
4.Samples:
5.Paper cup machine Big Production Show:
6.Cutting Machine Matched for Paper Cup Machine:
7.Paper Cup Machine Moulds :
9.Cover machine matched ( paper cover machine and plastic
cover machine).Both machine we have produce ,please
contact with us if you want to know more about it .
9.Export Standard Wooden Box
10.Compare to other supplier , our advantages as follow :
a.We are have biggest production
b.80%of our paper cup machines are for export , so our machine is following closely to quality.
C.We have more experience for others for the moulds production .
d.delivery time fast.
F.Faithful to all of our customers.
G.Price reasonable.
11.Certificate :
QC Team:
More than 20 persons to check the machine's quality,every machine need 1 week to make adjustment,ensure 100% qualitative product.
Contact:
We will reply you by Email or skype. Telephone within 24 hours,
you can call us anytime if you have any problem of our production.
Shipment:
We will keep tracking with the container until clients receive it.
40HQ,40GP,20FT(LCL,FCL)
Remeber we are RUIAN BEST MACHINERY CO.,LTD , We are strive to achieve quality best , service best ! You are welcome to purchase our equipment!
