Specifications
1) Extrusion Lamination line coating range is very big2) Base material can be nonwave or paper board

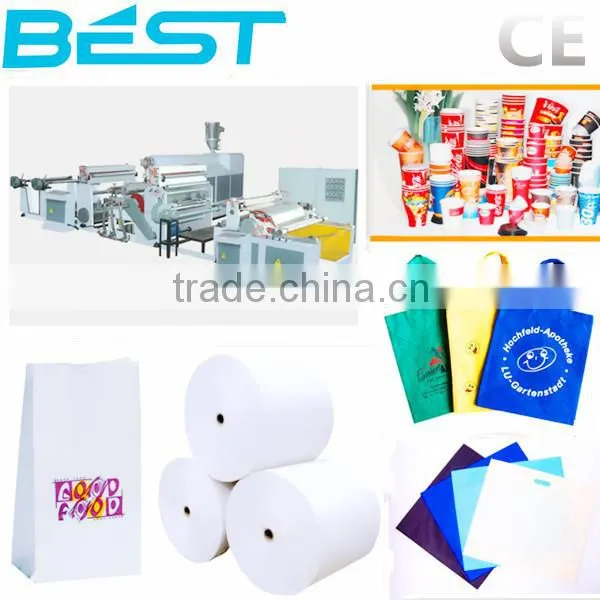

Equipment Name: Extrusion lamination line
2.Description:
serial healthy environmental shower membrane machine and paper plastic composition unit (non-adhesive composition unit) which integrate winding drying, surface processing, composition, edge- Cutting, absorption edge with rewinding are adopted with photo electricity tracking, electric-flower processing; Lines peed length of material digital display; Full automatic eternal tension, temperature automatic control Advance technologies etc.
3.Technical Specification :
The main technical parameters
For coating resin LDPE, PP and other coating grade
Backing paper 35-425 g
The mechanical speed 120m/min to 150m/min
Maximum Laminating Width 1250mm
Coating thickness of 0.010-0.050mm
Film thickness error of +5%
Tension setting range 10-150kg / full-width, constant tension
Maximum extrusion capacity 260kg / hour
Backing roll core diameter ∅ 76mm
Control System PLC automatic control of speed and Laminating thickness of composite
The SJFM 1300 extrusion film laminating machine include the following units:
1, The first Unwinding device 1set
2, Corona treatment equipment 1set
3, Extrusion composite part 1set
4, Cutting-edge devices 1set
5, Extruder 1set
6, winding device 1set
7, drive unit 1 set
8, the control unit 1set
9, the other 1set
10, ancillary facilities 1set
11.The mat roll 1set
12.Automatically PE feeding system 1set .
4.Machine details information show :
5.Factory big prodution show:
6.Related Cutting Machine Matched for Paper Cup Machine:
7.Pe coating machine finished products in the machine:
8.Export Standard Wooden Box
9.Compare to other supplier , our advantages as follow :
a.We are have biggest production
b.80%of our lamination machinesare for export , so our machine is following closely to quality.
C.We have more experience for others for the moulds production .
d.delivery time fast.
F.Faithful to all of our customers.
G.Price reasonable.
11.Certificate :
Guarantee And After-sale Service
One year Gurantee for whole machine
24 hours techinical support by Email , telephoto, skype etc
Use-friendly English software,user manual and detailed videos/CD
QC Team:
More than 20 persons to check the machine's quality,every machine need 1 week to make adjustment,ensure 100% qualitative product.
Contact:
We will reply you by Email or skype. Telephone within 24 hours,
you can call us anytime if you have any problem of our production.
Shipment:
We will keep tracking with the container until clients receive it.
40HQ,40GP,20FT(LCL,FCL)
Remeber we are RUIAN BEST MACHINERY CO.,LTD , We are strive to achieve quality best , service best ! You are welcome to purchase our equipment!
BEST-SJFM 1300 extrusion film laminating machine
The main technical parameters
For coating resin LDPE, PP and other coating grade
Backing paper 35-425 g
The mechanical speed 120m/min to 150m/min
Maximum Laminating Width 1250mm
Coating thickness of 0.010-0.10mm
Film thickness error of +5%
Tension setting range 10-150kg / full-width, constant tension
Maximum extrusion capacity 260kg / hour
Backing roll core diameter ∅ 76mm
Control System PLC automatic control of speed and Laminating thickness of composite
The BEST-SJFM 1300 extrusion film laminating machine include the following units:
1, The first Unwinding device 1set
2, Corona treatment equipment 1set
3, Extrusion composite part 1set
4, Cutting-edge devices 1set
5, Extruder 1set
6, winding device 1set
7, drive unit 1 set
8, the control unit 1set
9, the other 1set
10, ancillary facilities 1set
11.The mat roll 1set
12.Automatically PE feeding system 1set .
