Automatic Pre-glued and Glue Less Film Laminating Machine
US$ 22,000 - 27,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Other, Machinery & Hardware
Packaging Type:
Cartons
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO/SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Roll Paper Rewinding and Slitting MachineUS$ 15,000 - 17,000MOQ: 1 Set -
1300mm no pe Paper Slitting MachineUS$ 15,000 - 17,000MOQ: 1 Set
-
High-speed Glass Laminating MachineUS$ 69,000 - 75,000MOQ: 1 Set
-
Guang Ming Laminating MachineUS$ 69,000 - 75,000MOQ: 1 Set
-
SJFM 800-1800 High Speed Extrusion Paper Cup Board Laminating MachineUS$ 69,000 - 75,000MOQ: 1 Set
Condition
New
Application
Other, Machinery & Hardware
Packaging Type
Cartons
Packaging Material
Plastic
Automatic Grade
Automatic
Driven Type
Electric
Power
11KW
Place of Origin
Zhejiang, China
Brand Name
BEST
Model Number
YFMA-520
Specifications
Film Laminating Machine1) mini-sized automatic pre-glued & glueless film laminator
2) automatic paper feeding

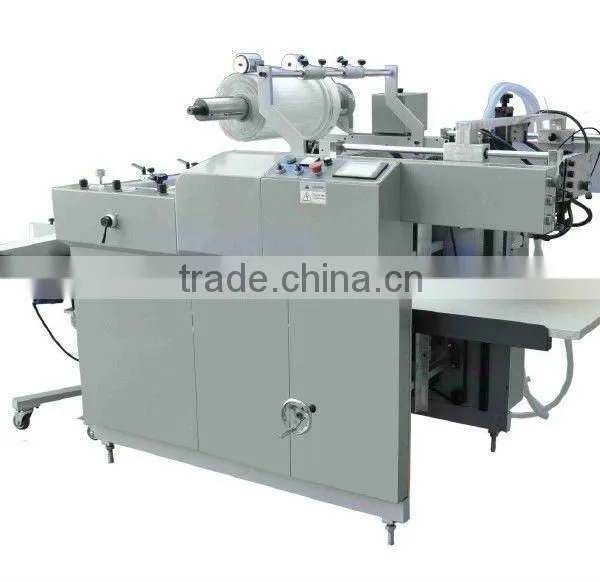

YFMA-520 Automatic Pre-glued and Glue Less Film Laminating Machine
Applications and Characters
PFLF-560/740 Small Automatic Pre-glued and Glue Less Film Laminating Machine is a kind of dual-function product which is suitable for both pre-glue and glue less film.. The most attractive features of the machine are compact structure and humanized design. For the laminating of greeting cards, certificates, documents, book covers and packing boxes, etc.
- Automatic paper feeder adopts oil-free vacuum pump to feed paper automatically. Paper feeding, laminating, separating can be finished at one time.
- Automatic paper feeding system is equipped with no paper protector and paper break protector, which are controlled by photoelectric and mechanical systems. When no paper or paper break occurs, the machine will stop automatically for self-protection.
- Man-Machine Interface System: Color touch screen simplifies the machine operation. On the touch screen, as long as the operator inputs paper size, overlap length and working speed etc., the machine can realize completely automated operation. And on touch screen, working status of the machine can be checked at any time.
- The overlap uses servo motor control. During operation, the operator just needs to set the paper length on the touch screen, then the machine can run automatically. The overlap precision tolerance is about ±2mm.
- Automatic hydraulic laminating system provide steady pressure to the laminating roller, rising and dropping automatically.
- Equipped with reel film side cutter and perforating device.
- Air expansion shaft releases film roll, and positions film roll more accurately, and also makes the loading and unloading of film roll more convenient. The film feeding adopts pneumatic brake which can adjust film release tension and speed.
- Anti-curvature device for laminated paper sheets.
- Double sets of serrated perforating wheels provide different choices for different specification of sheets and films.
- Pneumatic splitting system realizes the laminated paper sheets disjunction.
- Adopt enlarged size of high precision hard chrome plating mirror heating roller, in-dash oil heating system, and the feature of constant temperature is very great.
- Corrugating delivery system ensure paper collection more regular and convenient. To settle completely a long time of technical matter, crimping trouble of laminated thin paper.
- Adopt vibrating receiving table for collecting the paper. After pneumatic separating, laminated paper can be collected well.
- The main electrical parts adopt international noted brands, such as: OMORN Photoelectrical Sensor, DETAL Servo Drive, INVT Frequency Converter, etc. Frequency converter speed control ensures speed adjustment much more convenient and efficient, and makes the machine run stably and quietly. PLC system realizes automatic paper separation, breakdown alert for self-protection etc. functions.
Main Specification
Model |
PFLF-560 |
PFLF-740 |
Max. Sheet Size |
560×780 mm |
740×900 mm |
Min. Sheet Size |
210×297 mm |
210×297 mm |
Sheet Weight |
125~450 g/m2 |
125~450 g/m2 |
Laminating Temperature |
60~130 °C |
60~130 °C |
Speed |
0~35 m/min |
0~35 m/min |
Power |
14 kw |
16 kw |
Weight |
1000 kg |
1200 kg |
Dimension |
3150×1450×1530 mm |
3500×1450×1530 mm |
