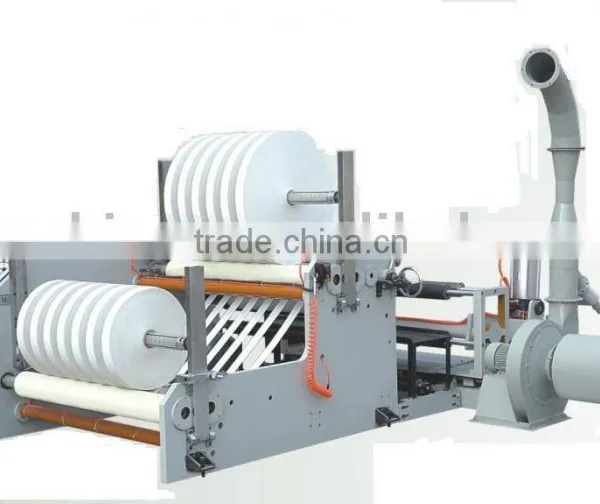

Help CenterBare Frame High Speed Style Slitting Machine
Related Products
Applicable materials: suitable for splitting and trimming super-sized coiled materials.i.e.films like OPP,PET,PVC,CPP,PP shrinkage films,etc. paper like label paper electroplated paper ,Al-foil paper,special paper ,double glued paper ,etc,paper plastic compound items,cloth,etc..
Performances and Characteristics:
Rewinding method:Toadopt the center surface of double rewinding bearing for rolling ,A/B shaft equipped with air expansion shaft,rewind by frictional surface to gain the tension
Feeding Unite: To adopt imported EPC atmospheric pressure automatic rectifying control system.automatic feeder makes it easier in feeding ,which ensure the safety in processing.
Stripping unit:To adopt round blade to split,adjustable according to different specifications,equipped with a counter,which makes it easier to count the length in rolling .The master motor adopts a frequency converter to adjust the speed .
Treatment of discarded sides :Equipped with a blower abd ab automatic eliminating system for discarded sides,the hollow-frame paper -crossing ,route design is suitable for splitting the super-sized and extra-heavy materials.
Rewinding Unit:Particularly suitable for rewinding the finished rolls in processing .
Main Technical Variables
Model QFJ-1100 QFJ-1300 QFJ-1600 QFJ-1800
Unwinding 1400mm 1400mm 1400mm 1400mm
Max Dia.of Slitting 1100mm 1300mm 1600mm 1800mm
Min.width of slitting 50mm 50mm 50mm 50mm
Max Dia.of rewinding 1200mm 1200mm 1200mm 1200mm
Speed 10-200m/min 10-200m/min 10-200m/min 10-200m/min
Cutting accuracy 0.2mm 0.2mm 0.2mm 0.2mm
Total power 7.2kw 7.5kw 9.2kw 10.5kw
Electric 380V50HZ 3PHASE
Weight 3500kg 4000kg 4500kg 5000kg
