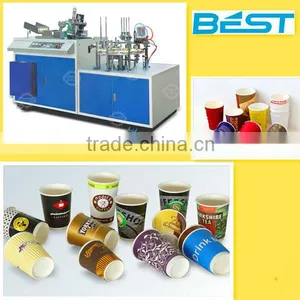

hot cup sleeve machine,sleeve forming cup machine

Equipment Name : hot cup sleeve machine

2.Description:

Model JBZ-D Paper Ripple Cup Sleeve Wrapping and Forming machine is a advanced machine developed on the RZ-LS double walls paper cup machine. In this machine, the out sleeve layer are corrugated paper . The difference between the RZ-LS and RZ-LH model sleeve forming machines : the sleeve feeding device is different, In the RZ-LS Corrugated out-sleeve forming machine, the feeding device is a mechanical hand .
About the out-sleeve corrugate layer: The inside layer ( face the inner cup layer) is light PE coated paper (100gsm for example) ; The outside layer is raw paper(printed) ; It is easy to finish the corrugated paper on a corrugating machine .

3.Technical Specification :

 JBZ-D Paper Cup/Bowl Sleeve Machine

Technical Specification :

A.HS. Code: 8441309000

B.Paper Cup Size : 5-16oz cup / 20--50oz bowl (mold exchangeable);

C.Raw Material : PE paper, Varnishing Printed paper, or other film coated paper (can be sealed by ultrasonic);

D.Suitable paper weight : 170-450gsm (Recommend 250-300 gsm);

E.Rated Productivity : 40---50 pcs / minute;

F.Total Power : 4 KW;

G.Power Source : 380V 50Hz or other required;

H.Total Weight : 1000 Kg;

I.Package Size (L x W x H) : 2450 x 1200 x 2000 mm

4.Samples:

5.Paper bowl machine Big Production Show:

6.Cutting Machine Matched for Paper bowl Machine:

7.Paper bowl Machine Moulds :

9.Cover machine matched ( paper cover machine and plastic

cover machine).Both machine we have produce ,please

contact with us if you want to know more about it .

9.Export Standard Wooden Box

10.Compare to other supplier , our advantages as follow :

a.We are have biggest production

b.80%of our paper bowl machines are for export , so our machine is following closely to quality.

C.We have more experience for others for the moulds production .

d.delivery time fast.

F.Faithful to all of our customers.

G.Price reasonable.

11.Certificate :

QC Team:

More than 20 persons to check the machine's quality,every machine need 1 week to make adjustment,ensure 100% qualitative product.

Contact:

We will reply you by Email or skype. Telephone within 24 hours,

you can call us anytime if you have any problem of our production.

Shipment:

We will keep tracking with the container until clients receive it.

40HQ,40GP,20FT(LCL,FCL)

Remeber we are RUIAN BEST MACHINERY CO.,LTD , We are strive to achieve quality best , service best ! You are welcome to purchase our equipment!
