anchor bolt threading machine
- 10 Set / Sets per Month
- China
- T/T
Product Details
Condition: | New | Place of Origin: | Hebei, China | Brand Name: | xinggong |
Model Number: | z28-80 | Voltage: | 380v | Power(W): | 4kw |
Dimension(L*W*H): | 1480*1330*1440mm | Weight: | 1700kg | Certification: | ISO9001, CE |
Warranty: | one year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

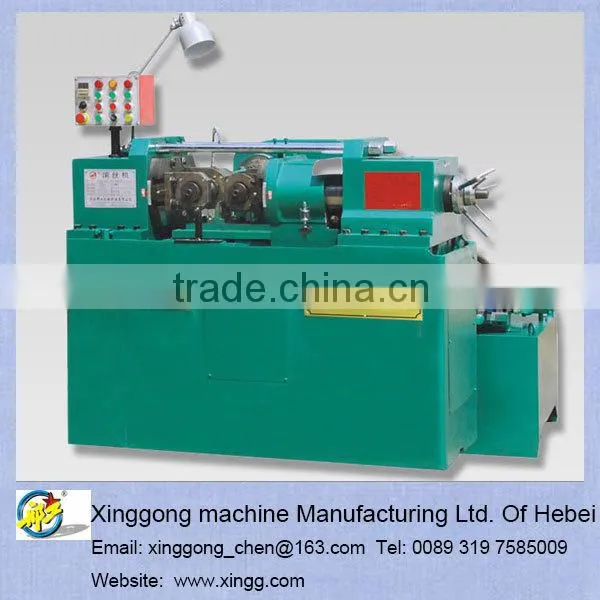

anchor bolt threading machine
this model is widely praised for its rational price,easy maintenance and high quaality.besides axial and radial process,it is used to process regular and irregular bolt,through screw etc.with embossing roller.the through screw made with this machine in zhejiang standard parts base has been exported to US,Canada and Europe.
parameters:
pressure of roller max:150KN
working dia:4-48mm
OD of roller:120-170mm
BD of roller:54mm
roller width max:100mm
dip angle of main shaft:+ -5degree
center distance of main shaft:120-240mm
rotary speed of main shaft:36,47,60,78(r/min)
feed speed of movable shaft:5mm/s
thread length:no limits
main power:4kw
hydraulic power:2.2kw
weight:1700kg
size:1500*1380*1140mm
