Automatic Threaded Rod Machine
US$ 3,000 - 10,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
fastener
Production Capacity:
3m/min
Payment & Shipping
Payment Methods:
Port of Shipment:
XINGNG TIANJIN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Thread Rolling Machine 20-80mmUS$ 3,000 - 23,000MOQ: 1 Set -
2 Rollers Threading MachineUS$ 3,000 - 23,000MOQ: 1 Set
-
Bolt Threading Machine 4-48mmUS$ 3,000 - 23,000MOQ: 1 Set
-
Thread Rolling Machine Flat DieNegotiableMOQ: 1 Set
-
Thread Rolling Machine/screw Rolling Machine/thread Making MachineNegotiableMOQ: 1 Set
Condition
New
Application
fastener
Production Capacity
3m/min
Place of Origin
Hebei, China
Brand Name
xinggong
Model Number
z28-80
Voltage
380v
Power(W)
4kw
Dimension(L*W*H)
1480*1330*1440
Weight
1700kgs
Certification
CE
Warranty
1 YEAR
After-sales Service Provided
Engineers available to service machinery overseas

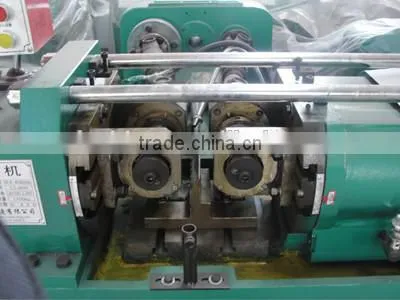

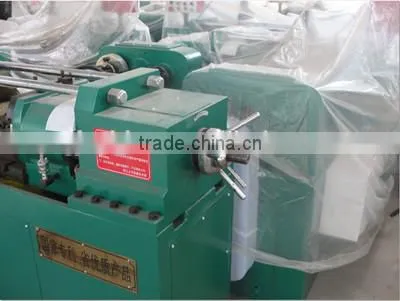

automatic threaded rod machine
this model is widely praised for its rational price,easy maintenance and high quality.besides axial and radial process,it is used to process regular and irregular bolt,through screw etc.with optional embossing roller.the through screw made with this machine in Zhejing standard parts base has exported to US,Canada and Europe.
parameters:
pressure of roller max:150KN
working dia:4-48mm
OD of roller:120-170mm
BD of roller 54mm
roller width max:100mm
dip angle of main shaft:+ -5degree
center distance of main shaft:120-240mm
rotary speed of main shaft:36,47,60,78(r/min)
feed speed of movable shaft:5mm/s
thread length:no limits
main power:4kw
hydraulic power:2.2kw
weight:1700kg
size:1500*1380*1140mm
