Specifications
RX30 Gypsum Machine for Spraying Wall1. AutomaticGypsum Machine
2. With air compressor
3. Easy operate
4. CE certificate
RX30 Gypsum Machine for Spraying Wall
Feature
- The integrated machine with mixer, self-suck water pump, mini compressor and rotor/stator pump
- The continuously mixing and pumping machine
- Small and handy dimension and low weight, quickly and easily transport even in the most confined spaces.
- The rotor/stator pump ensures the material is pumped and sprayed out continuously and evenly.
- The machine always works with efficiency and silence
- With air valve remote-control function
- The machine consists of portable units, permitting easy to operate and take maintenance and easy to use in any circumstance.
Application:
RX30 Gypsum Machine for Spraying Wall: suit for all pumpable dry ready-mixed mortars or materials, such as cement mortars, Lime plasters, gypsum plasters, Masonry mortars, Insulating plasters, Self-leveling floor screeds, etc.
Technology Description
Rated Output |
30 L/min |
Rated Working Pressure |
3 MPa |
Total Power |
8.5Kw |
Main Electric Motor |
3Phase,380volt,5.5 Kw |
Rev.of Rotor |
380 RPM |
Rated Air Output |
250L/min |
Water Pump Rated Output |
700L/h |
Max.Conveying Dist. |
50m |
Hopper Capacity |
120L |
Loading Height |
1000mm |
Conveying Hose ID. |
25/32mm |
Air Hose ID. |
13mm |
Overall Dimension(LxWxH) |
1240×680×1550mm |
Weight |
280 kg |

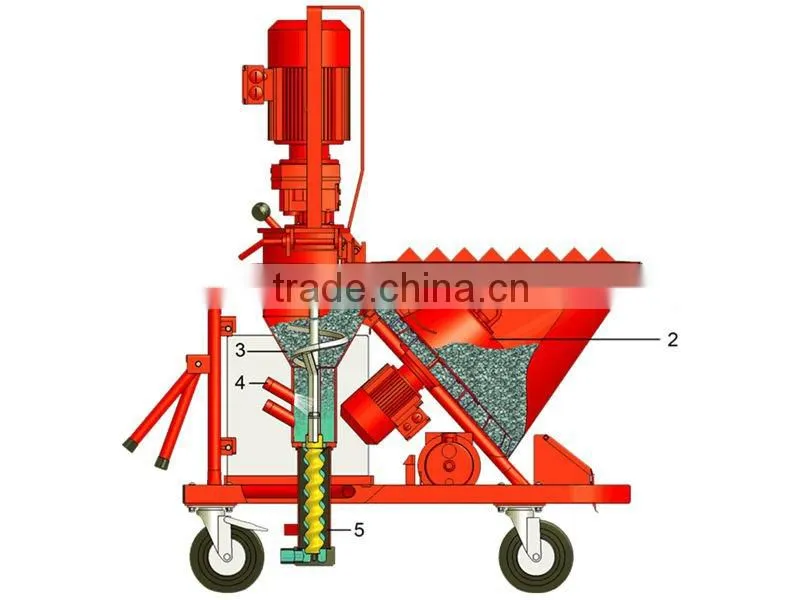

Drawing of RX30 Gypsum Machine:
1.Hopper
2.agitator
3.mixing pipe
4.grouting water
5.rotor and stator
Picture of RX30 Gypsum Machine:
