Help CenterHG325 Welded Tube Mill Line
Related Products
Commodity:welding tube mill line
(another names: Pipe-making machine line, tube mill, high frequency steel pipe tube mill machine,
welded pipe mill line, pipe mill, and so on.)
325mm tube mills is designed to produce welded pipes of 140mm-325mm in OD and 4.0mm-12.7mm in wall thickness, as well as corresponding square and rectangle tube.
II. Basic Technical Information:
1.Specification of pipes
Pipe OD: 140mm-325mm Thickness: 4.0mm-12.7mm
Square & rectangle tube: 110mm×110mm 250mm×250mm, Thickness: 4.0mm-12.7mm
Length: 6 -12m Length Tolerance: ±3mm
2.Raw Material:
Material: HR & CR Carbon steel coil(GB Q195 Q235 ∼Q345 / API∼X80)
3. Tube mill
Production Speed : 40 m/min
Direction : left to right or right to left from operator`s side decided by customers.
III. The technical flow of the production line
IV. Makeup of tube mill line

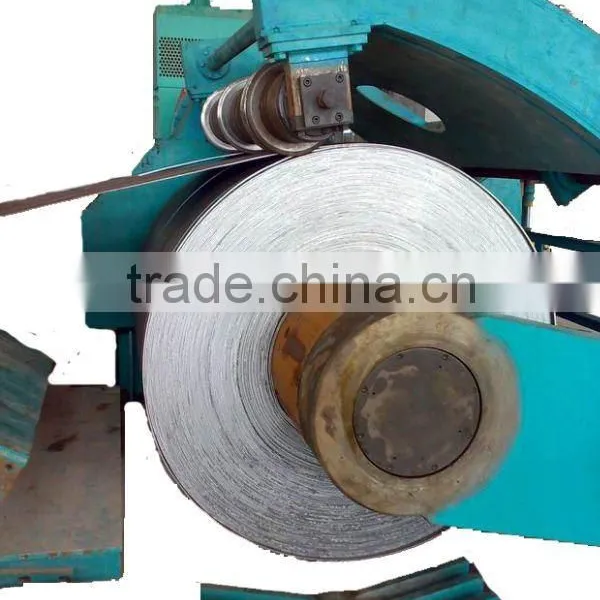

1. Double-reel Mechanical Uncoiler
2. Shear & Butt Welder
3. Cage Loop(Accumulator)
4. Tube mill
5. Solid State H.F. welder
6. NC Flying Saw
7. Output Rollway
8. Rollers
