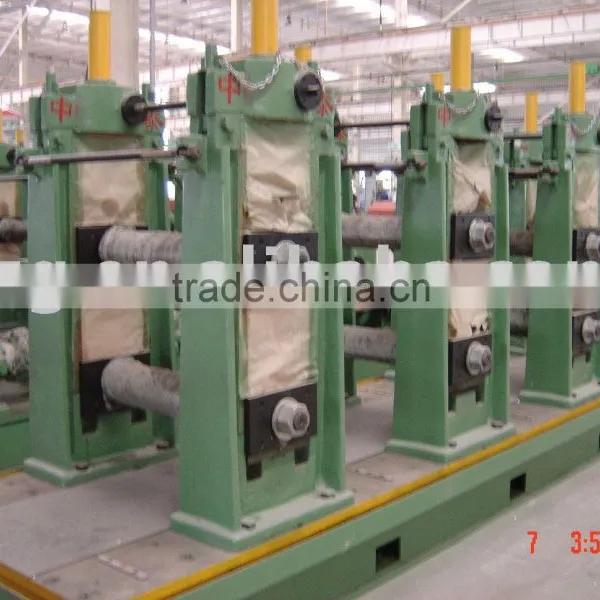

HG219 Welded Pipe Mill

Name: HG219 Welded Pipe Mill
Brand: ZTZG
SKU: 124305799
Availability: InStock

US$ 150,000 - 200,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Other, Pipe Mill, Welded Pipe Mill

Pipe Material:

Carbon Steel

Shijiazhuang Zhongtai Pipe Technology Development Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Xingang China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Other, Pipe Mill, Welded Pipe Mill

Pipe Material Carbon Steel

Application Energy Supply Pipe

Place of Origin Hebei, China

Brand Name ZTZG

Model Number HG219

Certification CE

Warranty 1 YEAR

After-sales Service Provided Engineers available to service machinery overseas

Commodity	Welded Pipe Mill
Brief Introduction	It is used to produce the welded steel pipe Pipe OD: Φ89mm-Φ219mm Thickness: 2.0mm-8.0mm Square & rectangle tube 175mm×175mm -250mm×150mm Thickness:2.3 mm-7.0mm Length: 6-12m Length Tolerance: ±3mm
Material	Low carbon steel and low alloy steel: δb≤500Mpa δs≤235Mpa
Production Speed(m/min)	10-50 m/min
Equipment Makeup	1. Un-coiler 2. Shear & Butt Welder 3. Cage Loop (Accumulator) 4. Tube mill 5. Solid State H.F. welder 6. Flying Saw 7. Output Rollway 8. Rollers
Technical Flow	Uncoiling→Shear & butt welding→Cage looping (Accumulating)→Forming →HFwelding→Removing & outside Bead →Cooling→Sizing→Cutting off→Conveying →Downloading → Packing →Warehousing
Direction(R/L)	Left to right or right to left from operator’s side decided by customers.
Application	Metallurgy, construction, transportation, machinery and vehicle industries.
Electricity Input Power(Kw)	To protect confidential information, Here only show basic parameters. Detailed parameter will be known in the quotation list or negotiate with customer.
Capacity(T/Year)
Line Area(Meter)
Shaft Diameter(mm)
