Commodity:welding pipe line
(another names: Pipe-making machine line, tube mill, high frequency steel pipe tube mill machine,
welded pipe mill line, pipe mill, and so on.)
273mm tube mills is designed to produce welded pipes of 114mm-273mm in OD and 3.0mm-10.0mm in wall thickness, as well as corresponding square and rectangle tube.
II. Basic Technical Information:
1.Specification of pipes
Pipe OD: 89mm-273mm Thickness: 3.0mm-10.0m
Square & rectangle tube: 70mm×70mm 215mm×215mm, Thickness: 3.0mm-10mm
Length: 6 -12m Length Tolerance: ±3mm
2.Raw Material:
Material: HR & CR Carbon steel coil(GB Q195 Q235 ∼Q345 / API∼X80)
3. Tube mill
Production Speed : 45 m/min
Direction : left to right or right to left from operator`s side decided by customers.
III. The technical flow of the production line
IV. Makeup of tube mill line
1. Double-reel Mechanical Uncoiler
2. Shear & Butt Welder
3. Cage Loop(Accumulator)

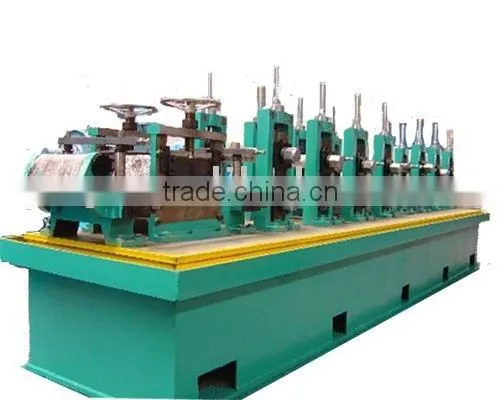

4. Tube mill
5. Solid State H.F. welder
6. NC Flying Saw
7. Output Rollway
8. Rollers
