Commodity:carbon steel pipe making machine
I. Summary

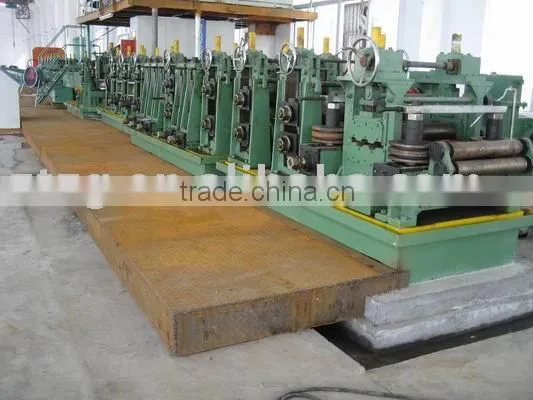

ERW168 steel tube making machine is designed to produce welded pipes of Φ76mm-Φ168mm and 2.0mm-6.0mm in wall thickness, as well as corresponding square or rectangle tubes. After we absorbed advanced pipe making technology home and abroad, our innovative production line and each single unit of the production line are not only economical but also practical.
II. Basic Technical Information:
1. Production Specification
Circle Pipe OD: 76-168mm
Thickness: 2.0-6.0mm
Square Tube: 60×60mm-130×130mm
Thickness: 2.0-5.0mm
Length: 6-12 m
Length Tolerance: ±3mm
2. Raw Material: carbon steel strip
Steel Grade: J55
3. Line Specifications
Forming Technology: ZTF Roll forming technology for circle pipe,
Roll circle pipe into square and rectangle tube
Production Speed: 30-50 m/min
Direction: From left to right or decided by your side.
III. The technical flow of the production line
Uncoiling→Flattening→Cutting head, tail→butt welding→Accumulating→Forming→High-frequency induction welding→Removing outside & inner Bead →Polishing→Cooling→Sizing→Cutting off→Conveyer Table→Straightening→End Facing and beveling→Hydro Testing→Inspection→Packing→Warehouse
