Commodity:steel tube making machine
I. Summary

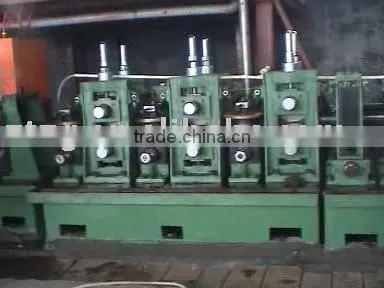

HG114 ERW tube making machine is used to manufacture weld steel pipe of Φ50mm-Φ114mm with 1.5mm-5.4mm of wall thickness, can produce profiled pipe also within the limit of processing round pipe. After we absorbed advanced pipe making technology from both abroad and domestic, our innovative designed production line and each single unit of the production line is not only economical but also practical.
II. Basic conditions:
(I) Steel Pipe Specification
(1) Round Pipe: Φ50-Φ114mm
Thickness: 1.5-5.4mm
(2) Square and Rectangle Pipe: 40X40-90X90mm
Thickness: 1.5-4.0mm
(4) Length of Steel Pipe: 6-12m
(II) Strip steel
(1) Low carbon steel and low alloy steel: δb≤500Mpa
δs≤235Mpa
III. The technical flow of the production line
Scroll up→Uncoil→Flattening→Cutting head, tail→Strip Steel head-tail butt welding→Looping storage→Confectioning→High-frequency induction welding
→Removing external burr→Removing internal burr→Cooling→Forming →Cutting→Checking & Collecting→Binding→Weighing→Marking→Accessing Warehouse
