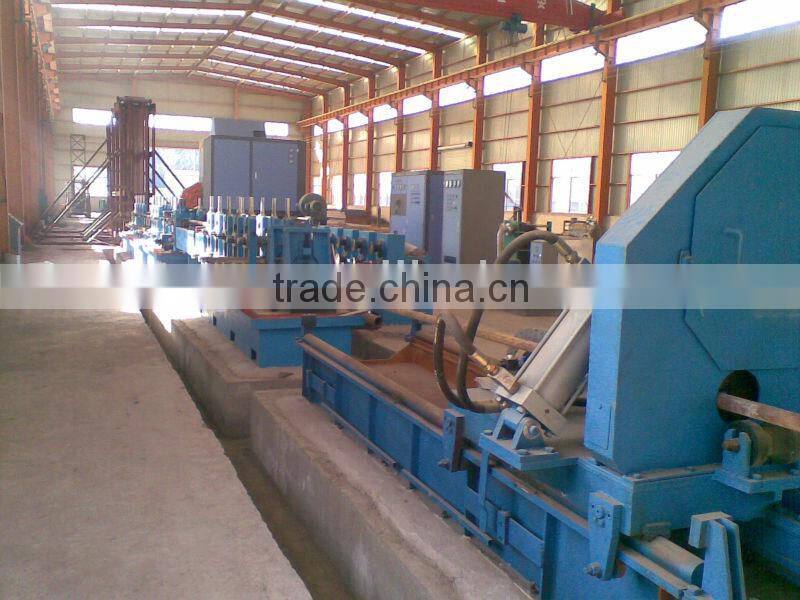

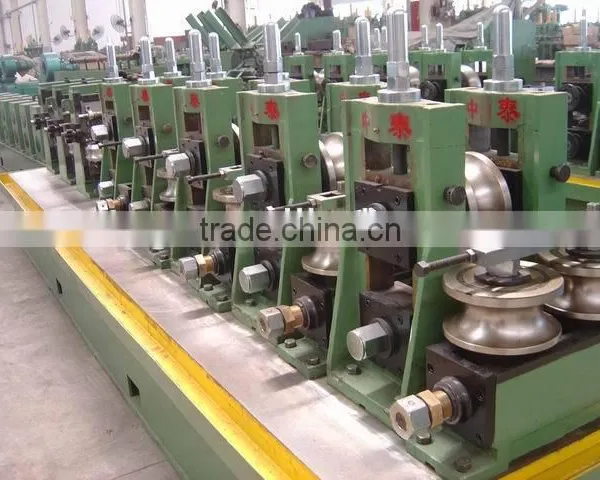

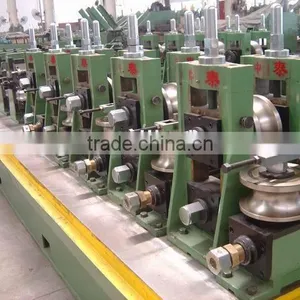

ERW76 Pipe Making Machine
- Tianjin
- T/T
You May Like
Product Details
| Condition | New | Type | Pipe Mill | |
| Pipe Material | Carbon Steel | Application | Energy Supply Pipe | |
| Production Capacity | 30-70mt/per day | Place of Origin | Hebei, China | |
| Brand Name | ZTZG | Model Number | ERW76 | |
| Voltage | 380v,440v | Power(W) | 300-500kw | |
| Dimension(L*W*H) | about 70x6m | Weight | about 20mt | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Product: ERW76 pipe making machineIt is designed to produce pipe of OD 32mm-76mm and corresponding rectangle and square tube.
Product: ERW76 pipe making machine
I. Summary
ERW76 ERW tube making machine is designed to produce welded pipes of 32mm-76mm in OD . After we absorbed advanced pipe making technology at home and abroad, our innovative production line and each single unit of the production line are not only economical but also practical.
II. Basic Technical Information:
1. Specification of pipes
Pipe OD: 32-76mm
Thickness: 1.0-4.0mm
Length: 6 -12m
2. Steel strip:
Material: low carbon steel, low alloy steel Q235B(ASTM GR·D,σs 230)
3. Pipe Length : 6-12m
Cutting Length Tolerance : ±3mm
Production Speed : 0-120 m/min
Direction : From left to right or decided by your side.
III. The technical flow of the production line
Uncoiling→Shear & butt welding→Cage looping (Accumulating)→Forming →High-frequency induction welding→Removing inne& outsied Bead →Cooling→Sizing→Cutting off→ConveyingcDownloading → Packing →Warehousing
