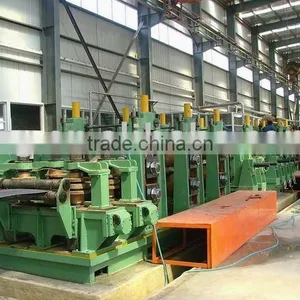

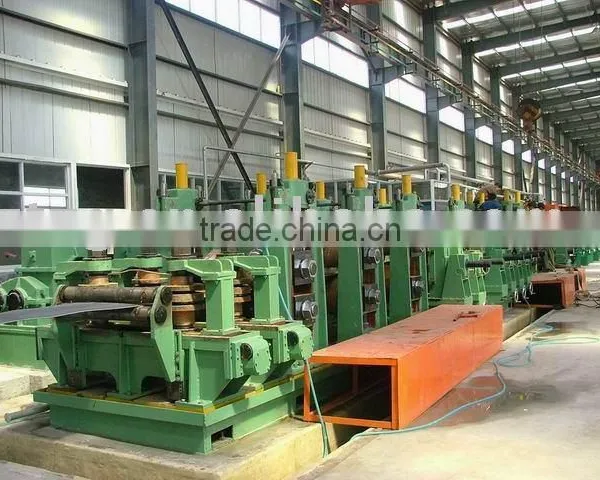

Help CenterHG273 Steel Tube Mill
Related Products
Specifications
HG273 steel tube mill can produce round square rectangular and profiled pipes with OD 89-273mm thickness 3-10mmHGΦ273 steel tube mill is used to manufacture welded steel pipes of Φ89mm-Φ273mm with 3mm-10mm of wall thickness, which also can produce profiled pipes within the limit of processing round pipes. After absorbing advanced pipe making technology from both abroad and domestic, our innovative designed production line is not only economical but also practical.
Technical Flow:
Uncoiling - Flattening-Shearing&butt welding-Strip Accumulating-Forming-High-frequency induction welding-Bead and burr removing-Zinc patching -Cooling-Sizing Inside Removing-UltrasonicTesting-Cutting-Checking &Collecting-Binding-Weighing-Marking-Accessing Warehouse
Specifications
1.Product Specifications
I. Round pipe diameter range: Φ89mm-273mm
wall thickness :3mm-10mm
II. Square and rectangle tube : 80*80mm-200*200mm
wall thickness range 3-10mm
III .Tube and pipe length: 4-12m
2. Material Specifications:
Low carbon steel and low alloy steel: δb≤550Mpa
δs≤235Mpa
3 Line specification
production speed:0-40m/min
Line Direction: right to left(from operator' s side)
