Home > Manufacturing & Processing Machinery > Building Material Making Machinery > Pipe Making Machine > 76mm Forming Machine

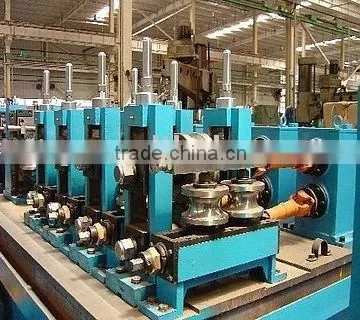

76mm Forming Machine
US$ 10,000 - 100,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Other, Pipe Production Line, Steel Rolling Mill
Pipe Material:
Carbon Steel
Application:
Energy Supply Pipe
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Type
Other, Pipe Production Line, Steel Rolling Mill
Pipe Material
Carbon Steel
Application
Energy Supply Pipe
Place of Origin
Hebei, China
Brand Name
ZTZG
Model Number
HG76
Specifications
Commodity:76mm forming machinePipe OD: 20mm-76mm Thickness:1.5mm-4.0mm
Square & rectangle tube 25mm*25mm -60mm*60mm
Commodity:76mm forming machine
Technical flow
Scroll up→ Uncoil→ Flattening→ Cutting head, tail→ Strip Steel head-tail butt welding→ Looping storage→ Forming→ High-frequency induction welding→ Removing external burr→ Cooling→ Cutting→ Checking & Collecting→ Binding→ Accessing Warehouse.
Specifications
1.Product Specifications
I. Round pipe diameter range: 20-76mm
wall thickness :1.5mm-4.0mm
II. Square and rectangle tube:25*25mm-60*60mm
wall thickness range 1.5-3.0mm
III .Tube and pipe length: 6--12m
2. Material Specifications:
Low carbon steel and low alloy steel: δb≤500Mpa
δs≤235Mpa
3.Line specification
production speed:0-70m/min
Line Direction: right to left(from operator' s side)
