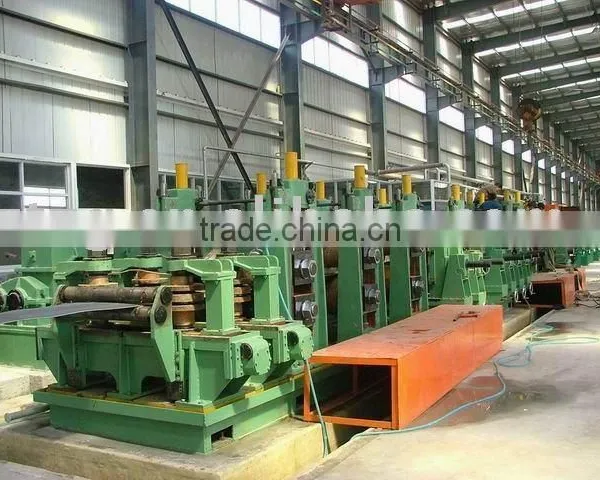

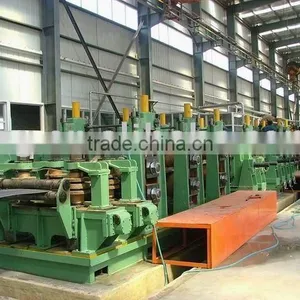

ERW273 steel tube mill

Commodity

ERW273 steel tube mill

Brief Introduction

It is used to produce the welded steel pipe
Pipe OD: Φ89mm-Φ273mm   Thickness: 3mm-10mm
Square & rectangle tube
70mm×70mm -210mm×210mm Thickness:3 mm-9mm

Length: 6-12m                         Length Tolerance:   ±3mm

Material

Low carbon steel and low alloy steel:

δb≤500Mpa          δs≤235Mpa

Equipment Makeup

1. Un-coiler
2. Shear & Butt Welder
3. Cage Loop (Accumulator)
4. Tube mill
5. Solid State H.F. welder
6. Flying Saw
7. Output Rollway
8. Rollers

Production Speed

Belong to confidential information and will be known in the quotation list.

Electricity Input Power

Shaft Diameter

Direction(R/L)

As customer’s request.

Remark

we have own design teams, and can design the production line as customer’s request.
