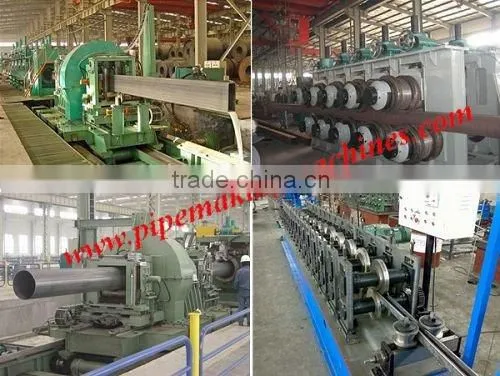

Help CenterHG 219 High Frequency Tube Mills
Related Products
Specifications
HG 219 High Frequency Tube mills1,Pipe OD:89-219mm
2, Thickness:2-8mmmm
3, Length:6-12m
Commodity |
Tube mills |
Round Pipe Size(mm) |
89-219mm |
Pipe Thickness (mm) |
2mm-8 mm |
Square Pipe Size(mm) |
70mm*70mm-170mm*170mm |
Pipe Thickness (mm) |
2mm-6 mm |
Material |
Carbon steel coil(GB Q195-Q345); Alloy steel coil; API 5L X42-X80 |
Pipe Length(m) |
6 -12m |
Length Tolerance(mm) |
±3mm |
Line Direction |
right or left(from operator's side) |
Production Speed(m/min) |
10-50m/min |
Low Carbon Steel And Low Alloy Steel: |
δb≤550Mpa ,δs≤235Mpa |
Technical Flow |
Scroll up→ Uncoil→ Flattening→ Cutting head, tail→ Strip Steel head-tail butt welding→ Looping storage→ Forming→ High-frequency induction welding→ Removing external burr→ Cooling→ Cutting→ Checking & Collecting→ Binding→ Accessing Warehouse. |
Tube Bottom Pass line/ Line Power/ Electricity Input Power etc. |
Belong to confidential information and detail parameters will be known in the quotation list. |
