Help CenterERW32 Pipe Making Machine
Related Products
Specifications
pipe making machinePipe OD: 10mm-32mm
Thickness: 0.6mm-2.0mm
Square tube: 10mm*10mm -25mm*25mm
Commodity: pipe making machine
I. Brief introduction:

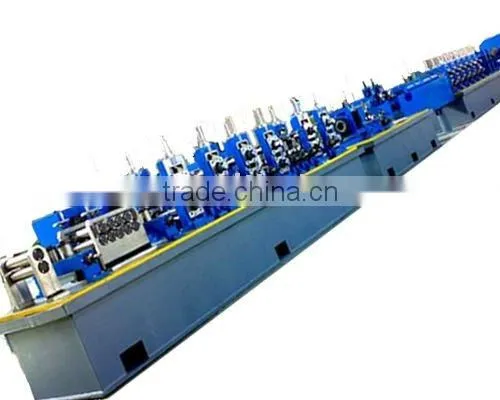

ERW32 welded pipe making machine is designed to produce welded pipes of 10mm-32mm in OD and 0.6mm-2.0mm in wall thickness, as well as corresponding square and rectangle tube.
II. Its Basic Technical Information:
1.Specification of pipes
Pipe OD: 10mm-32mm Thickness: 0.6mm-2.0mm
Square tube: 10mm×10mm -25mm×25mm, Thickness: 0.6mm-1.5mm
Length: 6 -12m Length Tolerance: ±3mm
2. Raw Material:
Material: Carbon steel coil(GB Q195-Q345); Alloy steel coil; API 5L X42-X80
3. Tube mill:
Production Speed: 20-80 m/min
Direction:
left to right or right to left from operator`s side decided by customers.
III. The technical flow of the production line
Uncoiling→Shear & butt welding→Cage looping (Accumulating)→Forming → HFwelding→Removing outsied Bead →Cooling→Sizing→Cutting off→Conveying →Downloading → Packing →Warehousing
IV. Makeup of tube mill line
1. Double-reel Mechanical Uncoiler
2. Shear & Butt Welder
3. Cage Loop(Accumulator)
4. Tube mill
5. Solid State H.F. welder
6. NC Flying Saw
7. Output Rollway
8. Rollers
