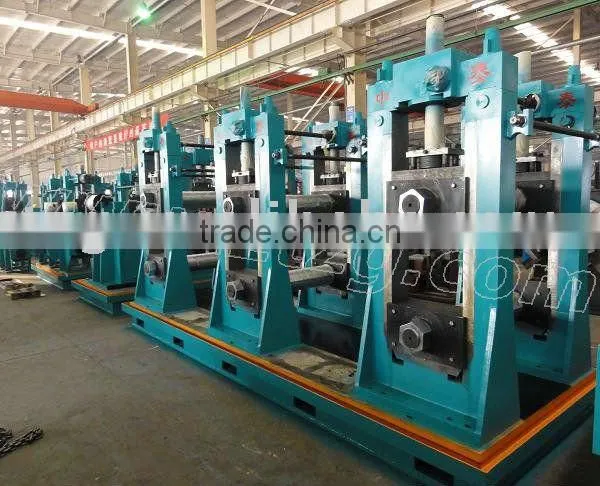

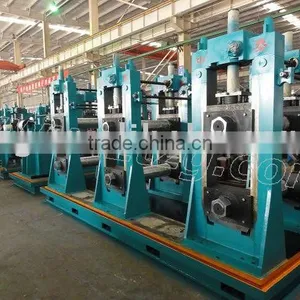

Help CenterHG140 ERW Pipe Extruder Machine
Related Products
Specifications
Commodity:HG140 ERW pipe extruder machine1,Pipe OD:60-140mm
2,Thickness:2-5mmmm
3,Length:6-12m
4,Speed:20-60m/min
Commodity: HG140 ERW pipe extruder machine
I.Brief introduction
HG 140 high frequency longitudinal welded pipe production line / pipe making machine / tube forming machine is designed to produce welded pipes of 60mm-140mm in OD and 2mm-5mm in wall thickness, as well as corresponding square and rectangle tube.
II. Basic Technical Information:
1.Specification of pipes
Pipe OD: 60mm-140mm Thickness: 2mm-5mm
Square & rectangle tube: 50mm×50mm – 110mm×110mm, Thickness: 2mm-4mm
Length: 6 -12m Length Tolerance: ±3mm
2.Raw Material:
Material: Carbon steel coil Q235B(ASTM GR·D,σs 230)
3. Tube mill
Production Speed : 20-80 m/min
Direction : left to right or right to left from operator`s side decided by customers.
4. Specification
Model |
Specification(mm) |
Thickness (mm) |
Working Speed (M/min.) |
|
Circular |
Rectangular/Square |
|||
HG76 |
32-76 |
25mm×25mm – 60mm×60mm |
1.2-4.0 |
Max80 |
